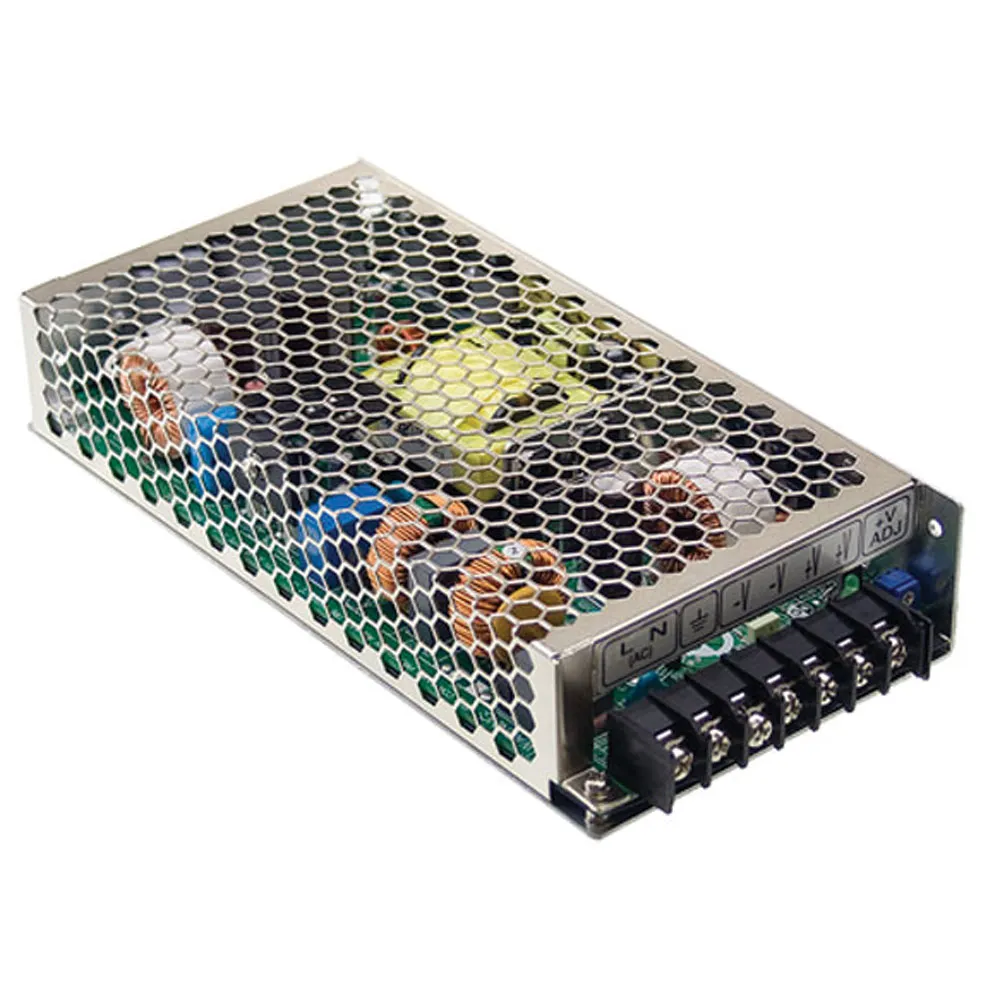

200.4 W Single Output with PFC Function
12 Volts @ 16.7 Amps
Features:
- Universal AC input / Full range
- Built-in active PFC function, PF>0.95
- High efficiency up to 88%
- Protections: Short circuit / Overload / Over voltage / Over temperature
- 5 years warranty
- Withstand 300VAC surge input for 5 seconds
- Cooling by free air convection
- Built-in constant current limiting circuit
- 1U low profile 38mm
- Built-in remote sense function
Product Identification
Type:Auto Switching SMPS
Manufacturer Series:HRP-200
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:2.2 A
Output
Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):16.7 A
Output Current:16.70 A
Features
PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:88%
Power Rating:200.4 W
