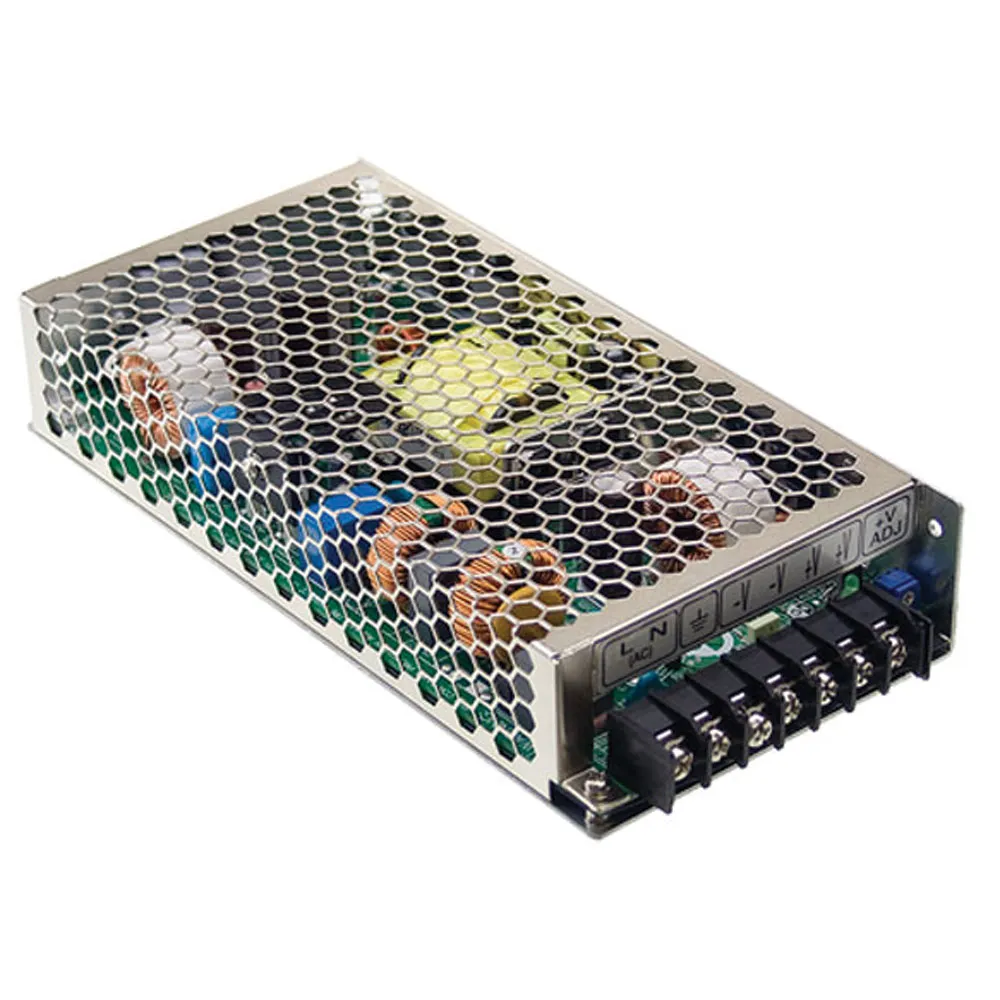

200.3 W Single Output with PFC Function


7.5 Volts @ 26.7 Amps

Features:
  • Universal AC input / Full range
  • Built-in active PFC function, PF>0.95
  • High efficiency up to 86%
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • 5 years warranty
  • Withstand 300VAC surge input for 5 seconds
  • Cooling by free air convection
  • Built-in constant current limiting circuit
  • 1U low profile 38mm
  • Built-in remote sense function

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:HRP-200

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:7.8 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):7.5 VDC
Output Voltage:7.5 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):26.7 A
Output Current:26.70 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:86%
Power Rating:200.3 W
,
