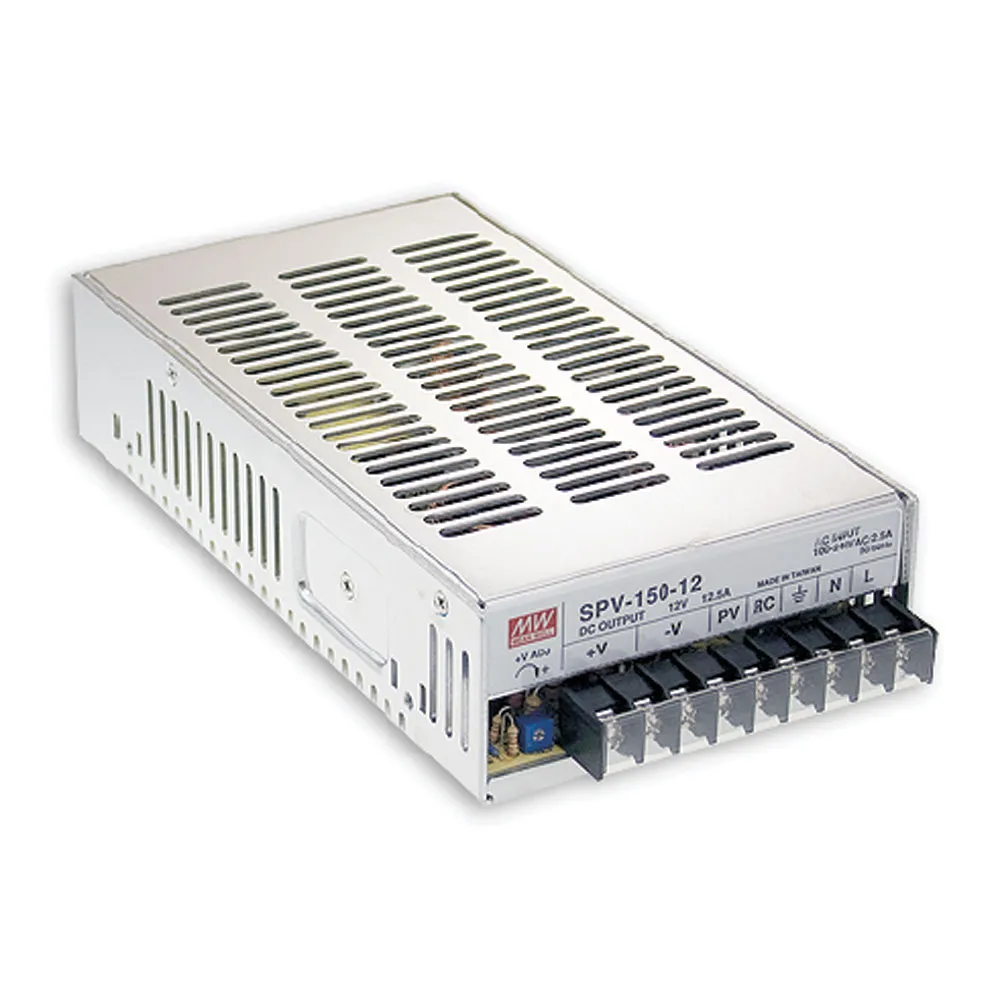

150W SINGLE OUTPUT SWITCHING POWER SUPPLY

12 Volts @ 12.5 Amps


Features:

  • Universal AC input
  • Input Voltage: 88~264VAC @ 47~63Hz, 124-370VDC
  • Short-circuit, Overload, Over-voltage, Over-temperature protection
  • Built-in active PFC function, PF>0.94
  • Built-in remote On-Off
  • Output voltage programmable
  • 100% full load burn-in test
  • No load power consumption <0.75W
  • Ripple and Noise: 150mVp-p
  • Line Regulation: ±0.3%
  • Load Regulation: ±0.5%
  • Size: 8.46"L x 4.53"W x 1.97"D
  • Weight: 2.43 lbs.
  • 3-year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:SPV-150

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:2 in.
Width:4.5 in.
Length:8.5 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:65°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 264 VAC
Maximum Input Current:2.5 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):12.5 A
Output Current:12.50 A

Features

PFC Function:Yes
Minimum Isolation Voltage:3000V
Efficiency:82%
Power Rating:150 W
,
