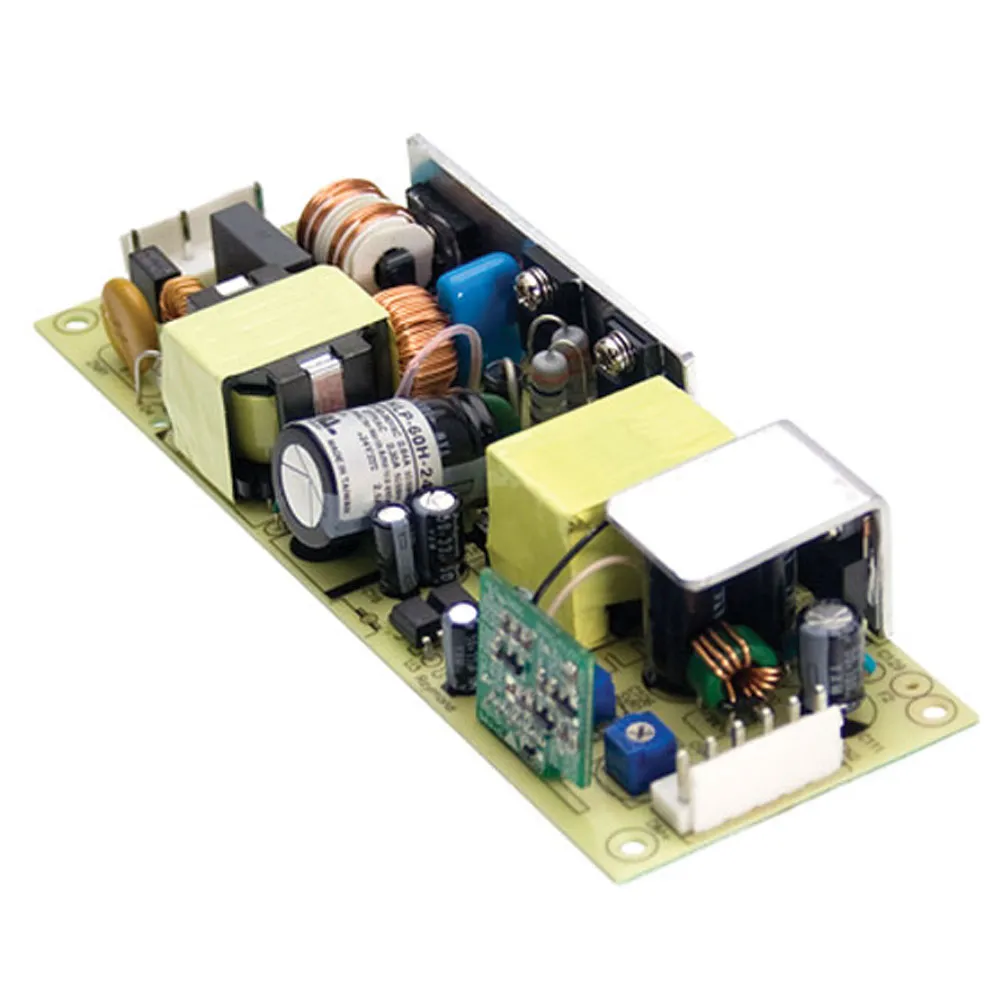

60W Single Output Switching Power Supply

60W, 30V@2A

  • Universal AC input / Full range (up to 305VAC)
  • Built-in active PFC function, PF>0.95
  • Protections: Short circuit / Over current / Over voltage / Over temperature
  • Cooling by free air convection
  • Output constant current level adjustable
  • Three in one dimming function (1~10Vdc or PWM signal or resistance)
  • Suitable for built in LED lighting system
  • 3 years warranty
  • Suitable for dry / damp location
  • 100% full load burn-in test

    • Product Identification

    Manufacturer Series:HLP-60H

    Compliance

    Agency Approvals: CB, CCC, CE, EAC, EN, TUV, CUL

    Dimensions & Appearance

    Style:Open Frame
    Height:1.10 in.
    Width:2.10 in.
    Length:5.80 in.

    Operating conditions

    Minimum Operating Temperature:-40°C
    Maximum Operating Temperature:70°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:90 VAC to 305 VAC
    Maximum Input Current:0.64 A

    Output

    Number of Outputs:1
    Output Connector Type:JST B6P-VH or equiv.
    Output Voltage:30 VDC
    Additional Output Voltages (VDC):27 to 33
    Output Current:2 A

    Features

    PFC Function:Yes
    Switching:Auto Switching SMPS
    Minimum Isolation Voltage:3750V
    Efficiency:90%
    Power Rating:60 W
    ,
