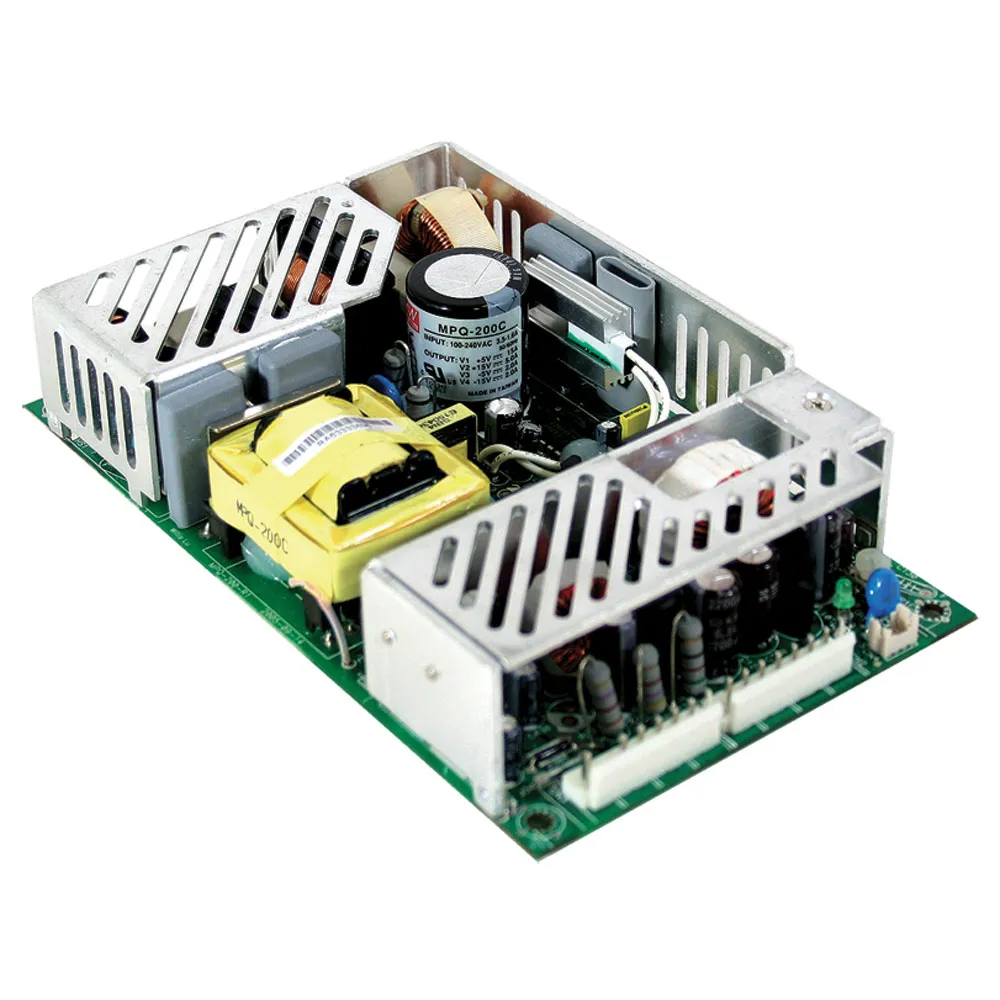

4 Output Medical Type 200 W Medical Series
CH1: 5 Volts @ 15 Amps
CH2: 12 Volts @ 7 Amps
CH3: -5 Volts @ 2 Amps
CH4: -12 Volts @ 2 Amps
Features:
- Universal AC input / Full range
- Low leakage current <180 A
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Free air convection for 140W and forced air convection for 200W
- UL60601-1 medical safety approved
- With power good and fail signal output
- Built-in remote ON-OFF control
- Fixed switching frequency at 100KHz
- 3 years warranty
- Built-in remote sense function
Product Identification
Manufacturer Series:MPQ-200
Compliance
Agency Approvals: CB, CE, CUL, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:1.40 in.
Width:4.20 in.
Length:7 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 440 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3.5 A
Output
Number of Outputs:4
Additional Output Voltages (VDC): -5, -12, 12
Output Voltage:5 VDC
Output Connector Type:Molex 5566-20 and JS-2008-03 (x2)
Output Current:18 A
Features
PFC Function:Yes
Switching:Auto Switching SMPS
Minimum Isolation Voltage:4000V
Efficiency:78%
Power Rating:193 W
