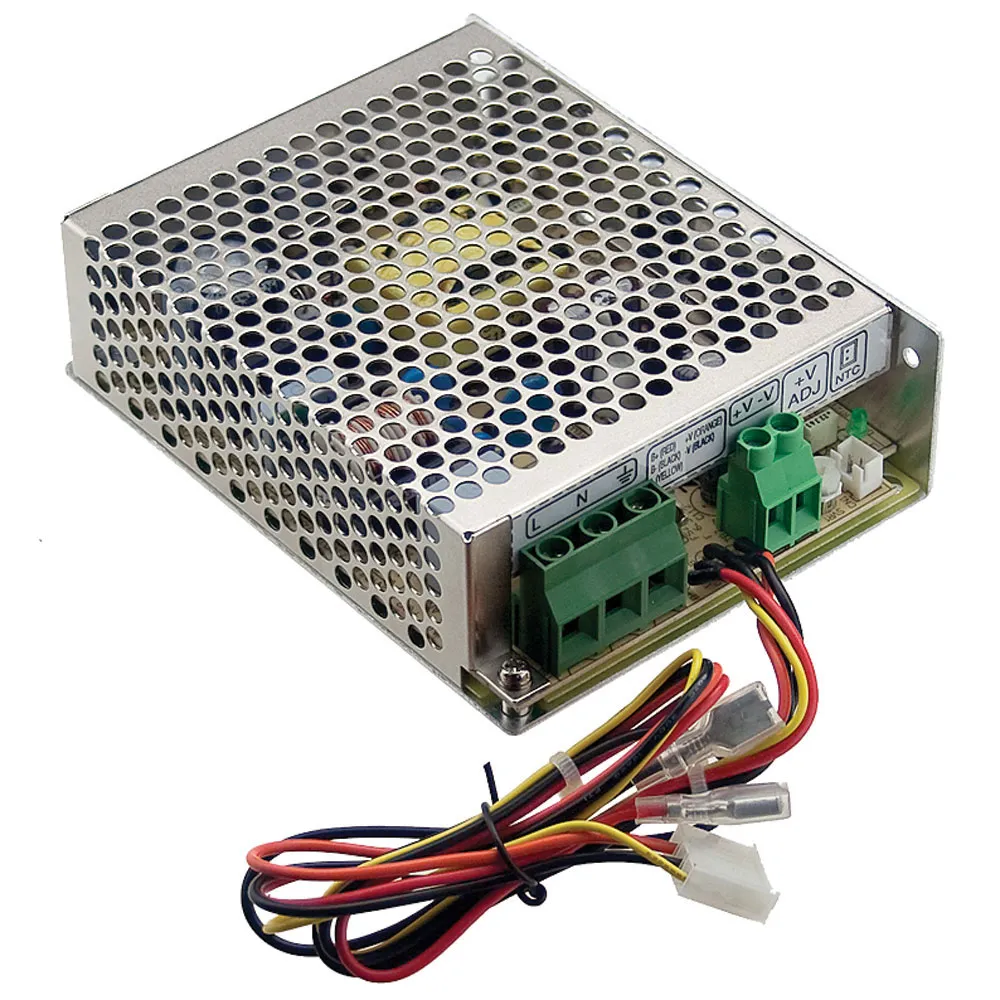

49.7W SINGLE OUTPUT SWITCHING POWER SUPPLY

13.8 Volts @ 3.6 Amps


Find out more about MEAN WELL Security Power Solutions.<
Features:

  • Universal AC input
  • Input Voltage: 85~264VAC @ 47~63Hz, 120-370VDC
  • Short-circuit, Overload, Over-voltage, Reverse-polarity protection
  • 100% full load burn-in test
  • No load power consumption <0.75W
  • Ripple and Noise: 120mVp-p
  • Line Regulation: ±1.0%
  • Load Regulation: ±2.0%
  • Size: 5.08"L x 3.86"W x 1.50"D
  • Weight: 0.99 lbs.
  • 2-year warranty

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:SCP-50

Compliance

Agency Approvals: CB, CE, CUL, EAC, EN, UL

Dimensions & Appearance

Style:Enclosed
Color:Silver
Height:1.5 in.
Width:3.9 in.
Length:5.1 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.1 A

Output

Number of Outputs:1
Output Voltage (Channel 1):13.8 VDC
Output Voltage:13.8 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):3.6 A
Output Current:3.60 A

Features

PFC Function:No
Minimum Isolation Voltage:3000V
Efficiency:81%
Power Rating:49.7 W
,
