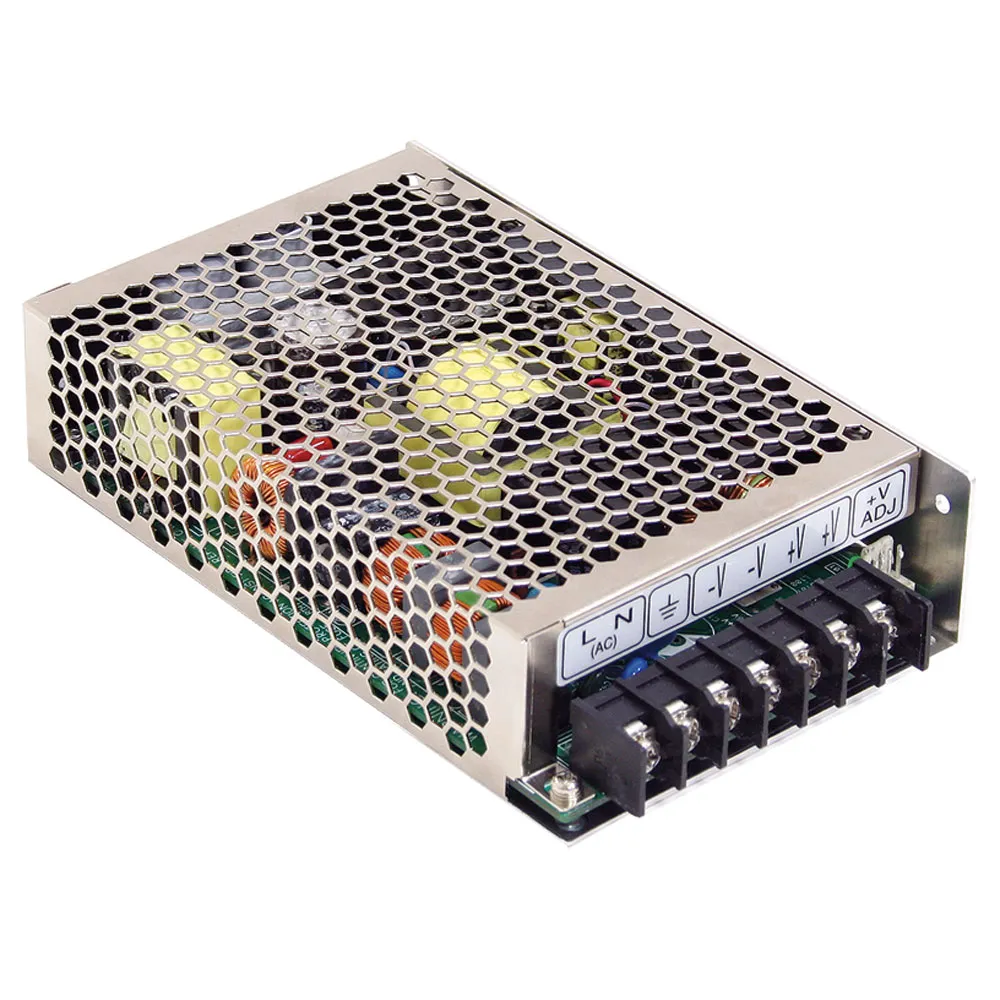

100W Single Output Power Supply with PFC Function

7.5 Volts @ 13.5 Amps

Specifications:

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency: 84% (Typ.)
  • Withstand 300VAC surge input for 5 seconds
  • Protections: Short circuit / Overload / Over voltage
  • Cooling by free air convection
  • 1U low profile 38mm
  • Built-in remote ON-OFF control
  • No load power consumption<0.5W
  • All using 105°C long life electrolytic capacitors
  • 5 year warranty

    • Product Identification

    Type:Auto Switching SMPS
    Manufacturer Series:HRP-100

    Compliance

    Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL

    Dimensions & Appearance

    Style:Enclosed
    Color:Silver
    Height:1.5 in.
    Width:3.8 in.
    Length:6.3 in.

    Operating conditions

    Minimum Operating Temperature:-30°C
    Maximum Operating Temperature:60°C

    Input

    Input Frequency:47 Hz to 63 Hz
    Input Voltage:85 VAC to 264 VAC
    Maximum Input Current:1.2 A

    Output

    Number of Outputs:1
    Output Voltage (Channel 1):7.5 VDC
    Output Voltage:7.5 VDC
    Output Connector Type:Screw Terminal Block
    Output Current (Channel 1):13.5 A
    Output Current:13.50 A

    Features

    PFC Function:Yes
    Minimum Isolation Voltage:3000V
    Efficiency:84%
    Power Rating:101.3 W
    ,
