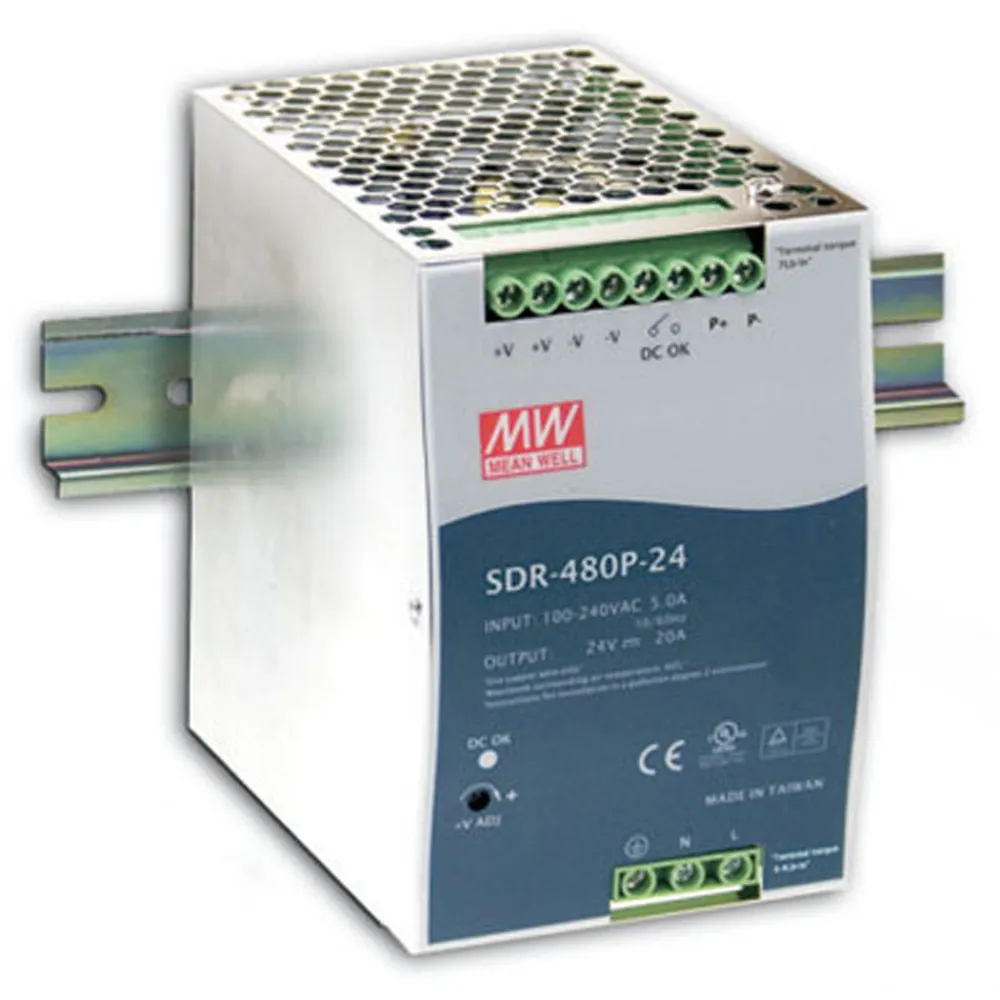

480W Single Output Industrial DIN RAIL with PFC and Parallel Function
24 Volts @ 20 Amps Features:
- Current sharing up to 3840W(7+1)
- High efficiency 94% and low power dissipation
- 150% peak load capability
- Built-in active PFC function, PF>0.94
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- 100% full load burn-in test
- 3 years warranty
- Built-in DC OK relay contact
- 150% peak load capability
Overview
Product Identification
Product Type:DIN Rail Power Supply SMPS
Manufacturer Series:SDR-480P
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, SEMI, TUV, UL
Dimensions & Appearance
Color:Silver
Depth:3.37 in.
Width:4.93 in.
Height:5.06 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:5 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:20 A
Features
Low Power Source (LPS):No
PFC Function:Yes
Efficiency:94%
Power Rating:480 W
