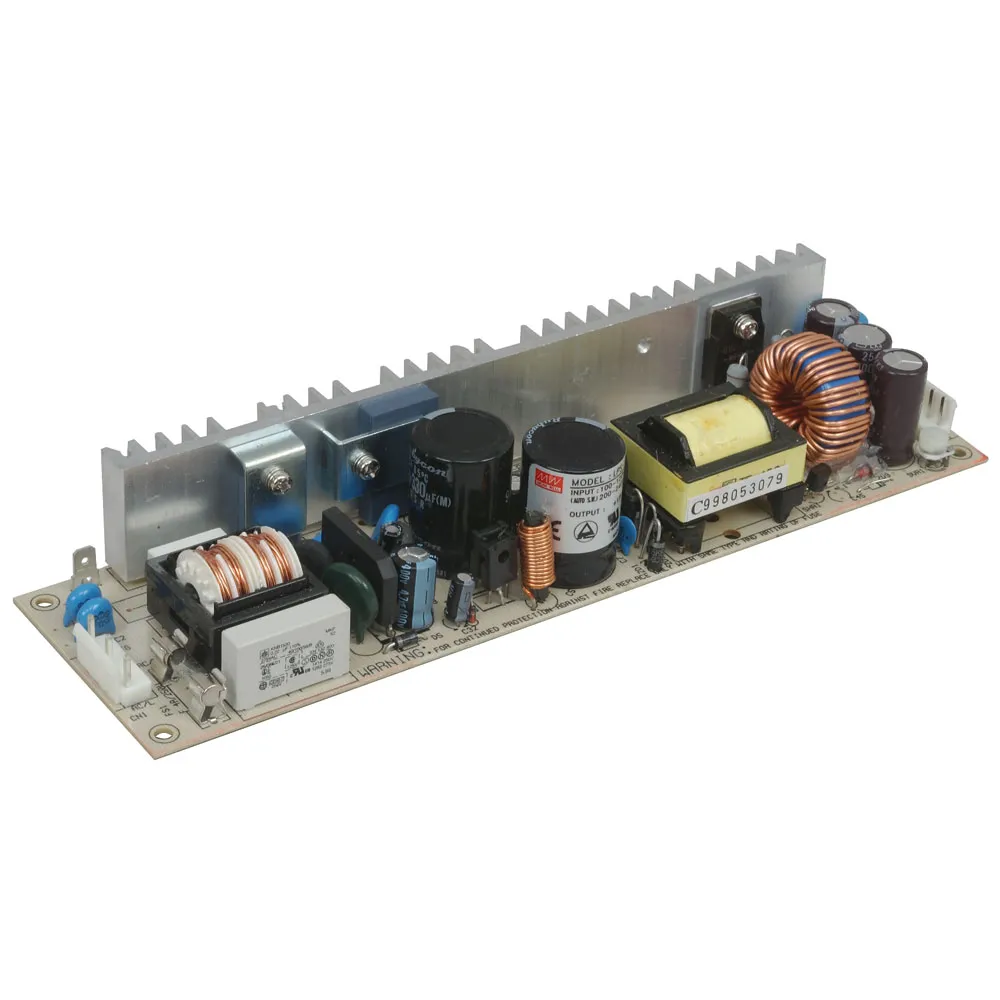

100 Watt AC/DC Power Supply
15 Volts at 6.7 Amps
Features
- Universal AC input/full range
- Protections: Short circuit / Overload / Over voltage
- Cooling by free air convection
- 100% full load burn-in test
- Fix switching frequency at 134 kHz
- 3 years warranty
Product Identification
Manufacturer Series:LPS-100
Compliance
Agency Approvals: CB, CE, CUL, EAC, EN, TUV, UL
Dimensions & Appearance
Style:Open Frame
Height:1.30 in.
Width:2.40 in.
Length:8.70 in.
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:88 VAC to 132 VAC, 176 VAC to 264 VAC
Maximum Input Current:2.3 A
Output
Number of Outputs:1
Output Connector Type:JST B8P-VH or equiv.
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:6.70 A
Features
PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:80%
Power Rating:100.5 W
