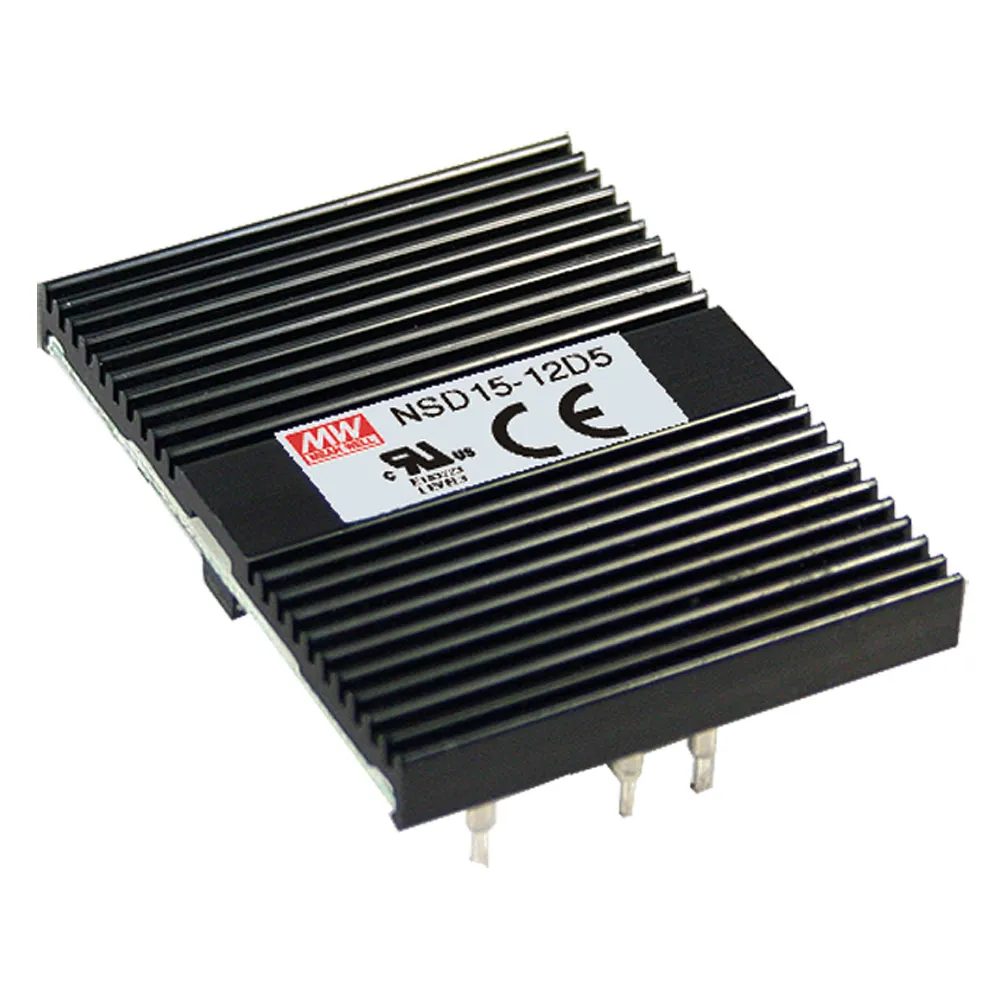

15W Regulated Single Output DC-DC Converter


Output: 12 Volts @ 1.25 Amps

Features:
  • Input voltage range: 9.4-36VDC
  • Built-in EMI filter
  • Built-in remote on/off control
  • Output voltage trimming function
  • Cooling by free air convection
  • Protections: Short-circuit, overload, over-voltage
  • 100% full load burn-in test
  • 1500VDC I/O isolation
  • Efficiency: 81%
  • Compact size: 2.0"L x 1.0"W x 0.387"H
  • Weight: 1.06oz. (30 grams)
  • 2-year warranty

    • Product Identification

    Product Type:DC-DC Regulated Single Output Power Supply SMPS
    Manufacturer Series:NSD15

    Compliance

    Agency Approvals: CE, CUL, EAC, EN, UL, UL, CUL, CE, EN, EAC

    Dimensions & Appearance

    Color:Black
    Height:0.387 in.
    Length:1.5 in.
    Width:2 in.
    Mounting:Through Hole

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:70°C

    Input

    Input Voltage Range:9.4 VDC to 36 VDC
    Input Voltage:12 VDC
    Maximum Input Current:1.8 A

    Output

    Number of Outputs:1
    Output Voltage:12 VDC
    Output Connector Type:PC Pins
    Output Current:1.25 A

    Features

    Pins:6
    Efficiency:81%
    Power Rating:15 W
    ,
