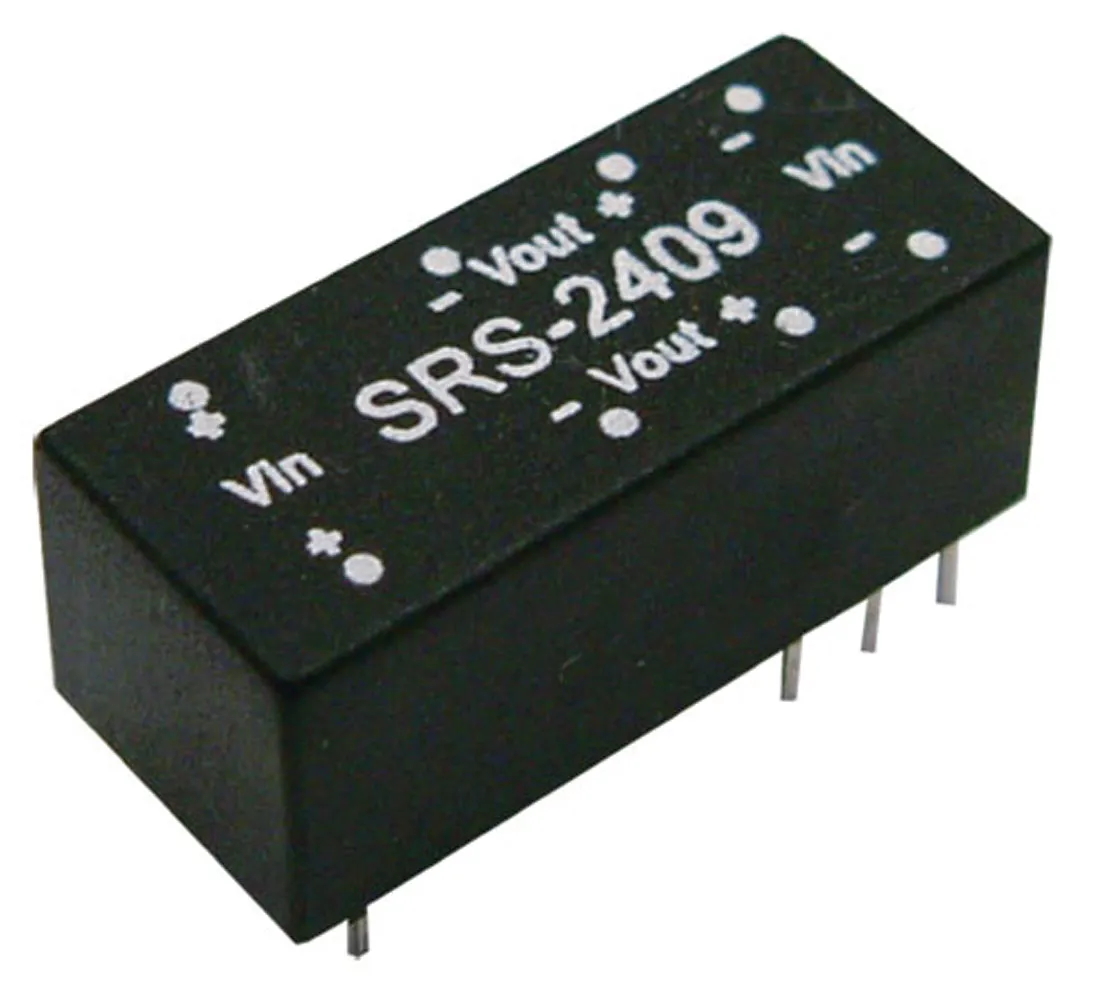

0.5W Regulated Single Output DC-DC Converter


Output: 9 Volts @ 0.056 Amps

Features:
  • Input voltage range: 21.6-26.4VDC
  • Built-in EMI filter
  • Internal SMD technology
  • Cooling by free air convection
  • 100% burn-in test
  • Non-conductive plastic case
  • Efficiency: 60%
  • Compact size: 0.89"L x 0.39"W x 0.33"H
  • Weight: 0.11oz. (3.1 grams)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC-DC Regulated Single Output Converter SMPS
    Manufacturer Series:SRS

    Dimensions & Appearance

    Height:0.33 in.
    Width:0.39 in.
    Length:0.89 in.

    Operating conditions

    Minimum Operating Temperature:-25°C
    Maximum Operating Temperature:71°C

    Input

    Input Voltage:24 VDC
    Input Voltage Range:21.6 VDC to 26.4 VDC

    Output

    Number of Outputs:1
    Output Current:0.056 A
    Output Voltage:9 VDC
    Additional Output Voltages (VDC):N/A

    Features

    Pins:8
    Power Rating:0.5 W
    ,
