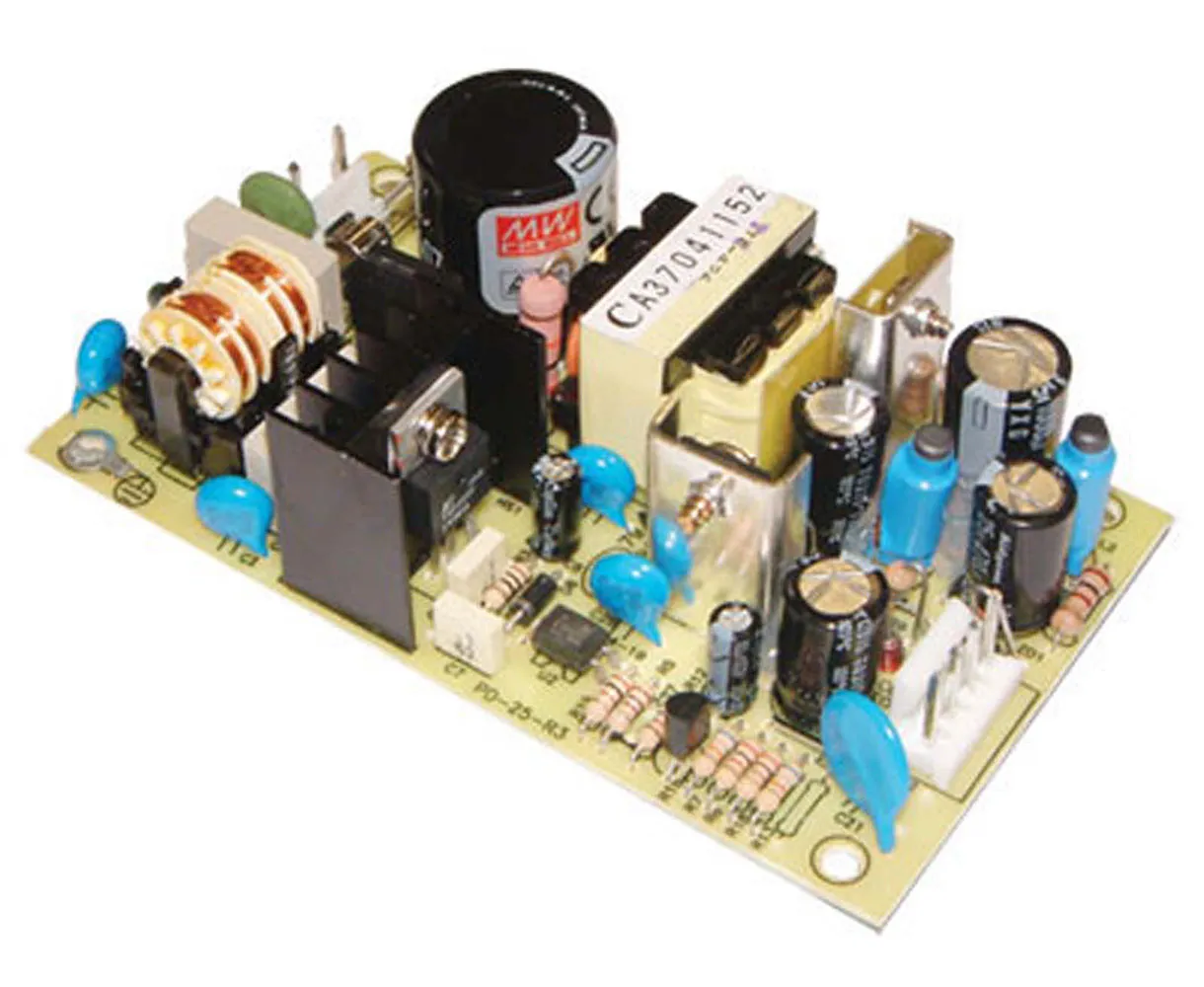

25W Open-Frame AC-to-DC Switching Dual Output Power Supply

Channel 1: 15 Volts @ 1 Amp
Channel 2: -15 Volts @ 1 Amp

Features:

  • Input: 85-264VAC @ 47-63Hz
  • Size: 4.2"L x 2.4"W x 1.1"H
  • Ripple and Noise: 50mVp-p
  • In need of a connector for both channels? For channel 1 use a 3 Position Connector Housing Receptacle and for channel 2 a 4 Position Connector Housing Receptacle
  • Load Regulation: ±3.0%
  • Line Regulation: ±0.5%
  • Universal AC input/full range
  • Short-circuit, Overload, Over-voltage protection
  • 2-year warranty
  • Certification: EN/TUV/UL

Product Identification

Manufacturer Series:PD-25

Compliance

Agency Approvals: CE, CUL, EN, TUV, UL

Dimensions & Appearance

Style:Open Frame
Height:1.10 in.
Width:2.40 in.
Length:4.20 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:0.65 A

Output

Number of Outputs:2
Additional Output Voltages (VDC):-15
Output Voltage:15 VDC
Output Connector Type:Molex 41791-04
Output Current:1 A

Features

PFC Function:No
Switching:Auto Switching SMPS
Minimum Isolation Voltage:3000V
Efficiency:75%
Power Rating:24 W
,
