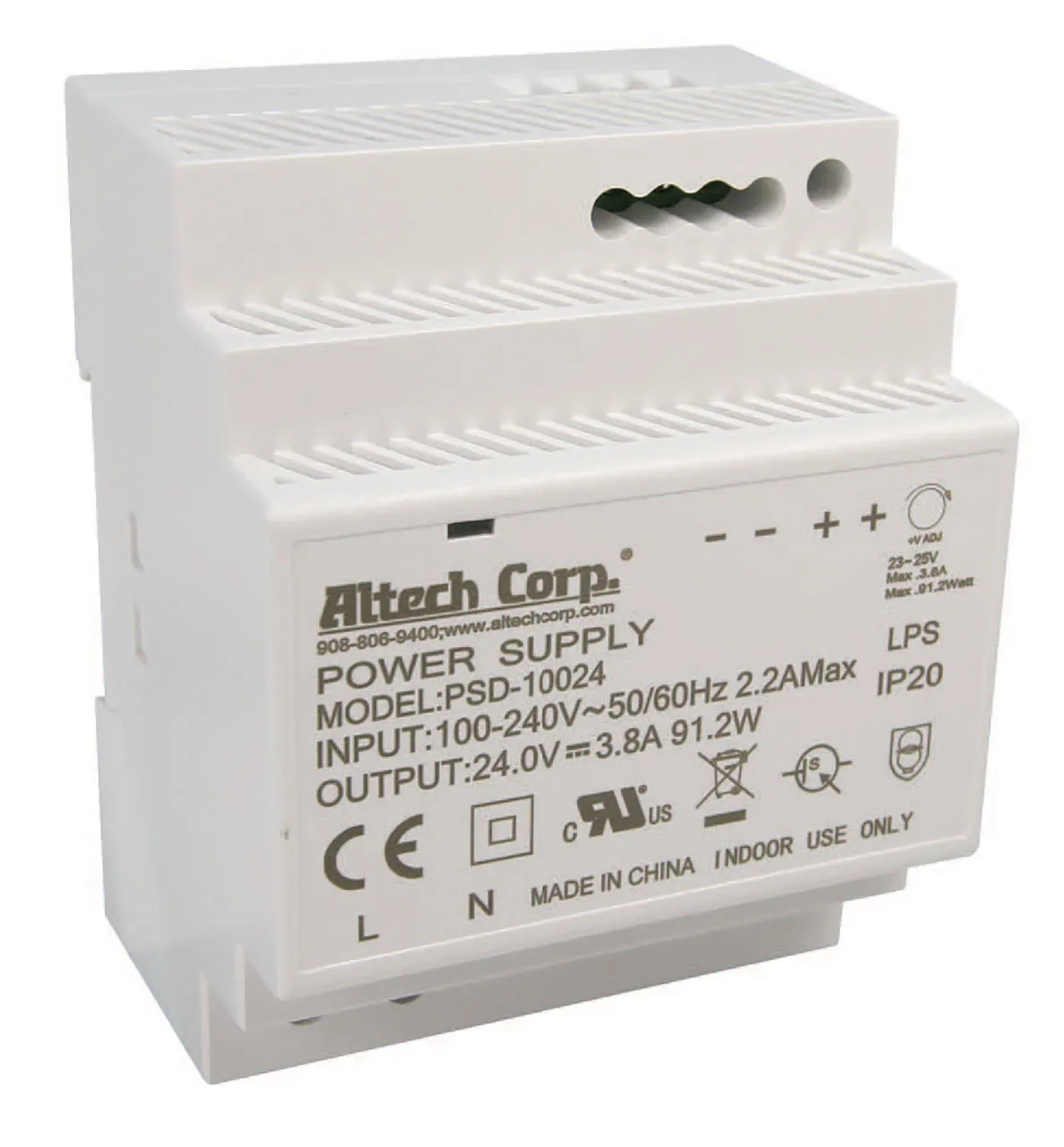

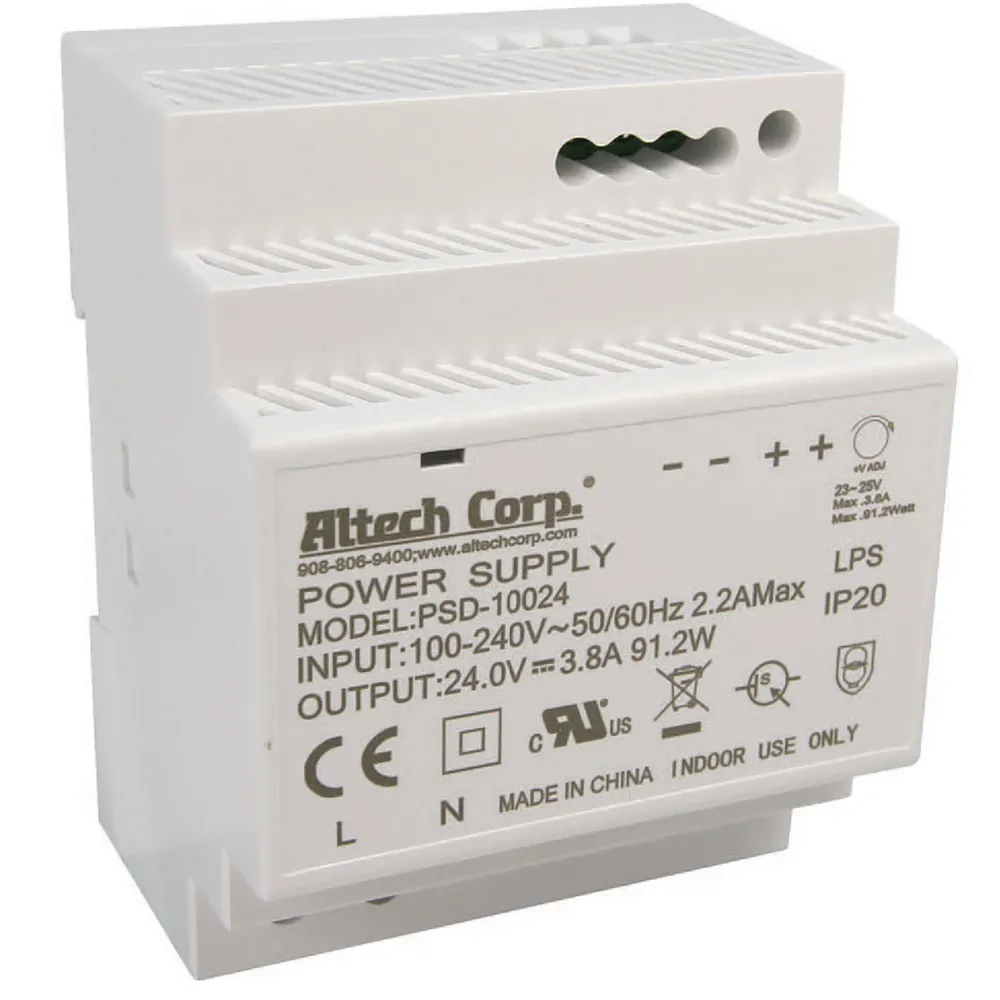

Power Supply DIN Rail 85-264VAC Input 24VDC Output 100W 4.2A Univ IEC Class II

Features

  • Low profile, small size
  • Universal input
  • High Efficiency
  • 100% Full Load Burn-In
  • Low Ripple & Noise
  • Adjustable DC Voltage Output
  • Class II Isolation Level
  • UL62368-1 and CAN / CSA C22.2
  • Protections: Overload / Over Voltage / Short Circuit
  • Three-year Warranty

Overview

Power Supply DIN Rail 85-264VAC Input 24VDC Output 100W 4.2A Univ IEC Class II

Product Identification

Product Type:Low Profile Single Phase DIN Rail Power Supply
Manufacturer Series:PSD-100

Compliance

Agency Approvals: CE, CN, CUL, EAC, EN, TUV, UL

Dimensions & Appearance

Color:White
Depth:2.28 in.
Height:2.76 in.
Width:3.54 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:50°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:3 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:4.20 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:3000V
Efficiency:90%
Power Rating:91 W
,
