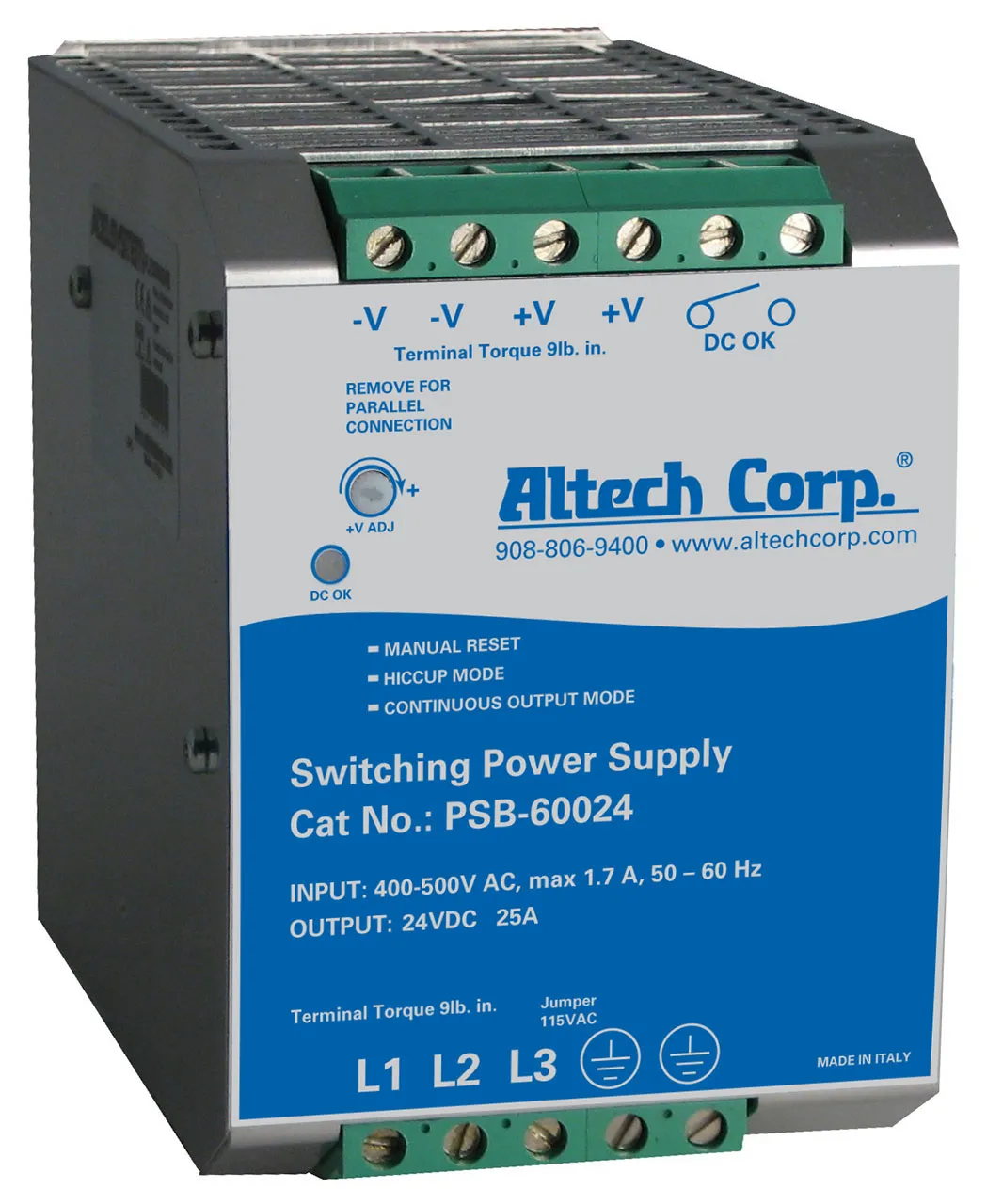

Power Supply DIN Rail 400-500VAC Input 24VDC Output 600W 25A Three Phase Input
Features
- 3 phase
- Input Voltage: 330 VAC to 550
- Multiple overload/ short circuit protection modes
- Efficiency above 92%
- Easy parallel connection for more power
- Small size
- DIN rail mountable
- Cooling by free air convection
- UL 508 (industrial control equipment) approved
- EN60950-1
- Built-in DC OK relay circuit
- 3-year warranty
Overview
Power Supply DIN Rail 400-500VAC Input 24VDC Output 600W 25A Three Phase Input
Product Identification
Product Type:Three Phase DIN Rail Power Supply
Manufacturer Series:PSB-600
Compliance
Agency Approvals: CE, CUL, EN, UL
Dimensions & Appearance
Color:Silver
Depth:5.51 in.
Width:3.34 in.
Height:4.72 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C
Input
Input Frequency:47 Hz to 63 Hz
Input Voltage:330 VAC to 550 VAC
Maximum Input Current:0.95 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):22 to 27
Output Voltage:24 VDC
Output Current:25 A
Features
PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:3000V
Efficiency:92%
Power Rating:600 W
