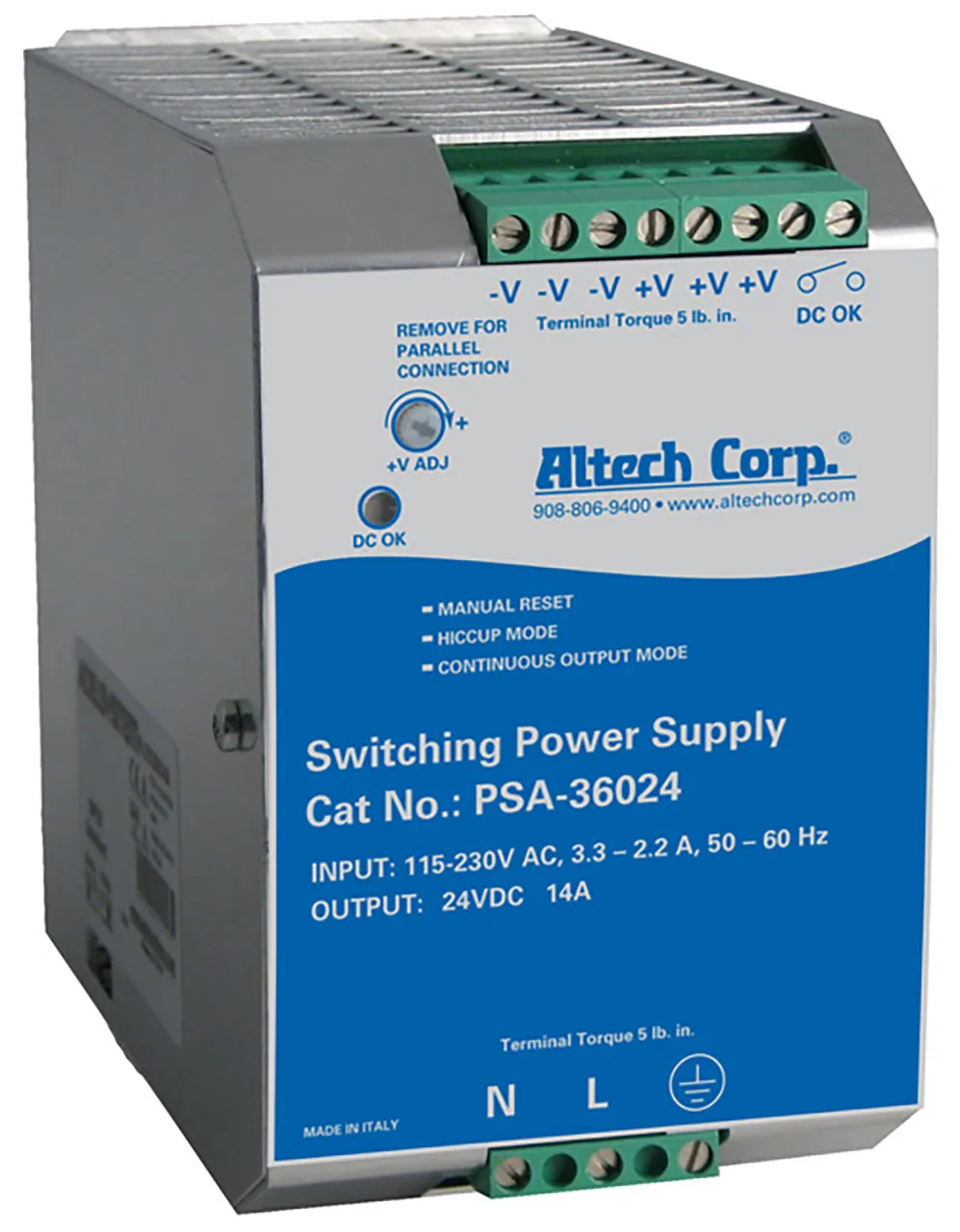

Power Supply DIN Rail 230-400-500VAC Input 24VDC Output 360W 14A Single/Two Phase

Features

  • 2 phase
  • Input Voltage: 187 VAC to 264 VAC, 330 VAC to 550 VAC selectable by switch
  • Multiple overload/ short circuit protection modes
  • Efficiency above 91%
  • Easy parallel connection for more power
  • Small size
  • DIN rail mountable
  • Cooling by free air convection
  • UL 508 (industrial control equipment) approved
  • EN60950-1
  • Built-in DC OK relay circuit
  • 3-year warranty

Overview

Power Supply DIN Rail 230-400-500VAC Input 24VDC Output 360W 14A Single/Two Phase

Product Identification

Product Type:Two Phase DIN Rail Power Supply
Manufacturer Series:PSB-360

Compliance

Agency Approvals: CE, CUL, EN, UL

Dimensions & Appearance

Color:Silver
Depth:5.30 in.
Width:2.80 in.
Height:4.50 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:187 VAC to 264 VAC, 330 VAC to 550 VAC
Maximum Input Current:2.2 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):22 to 27
Output Voltage:24 VDC
Output Current:14 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:3000V
Efficiency:91%
Power Rating:360 W
,
