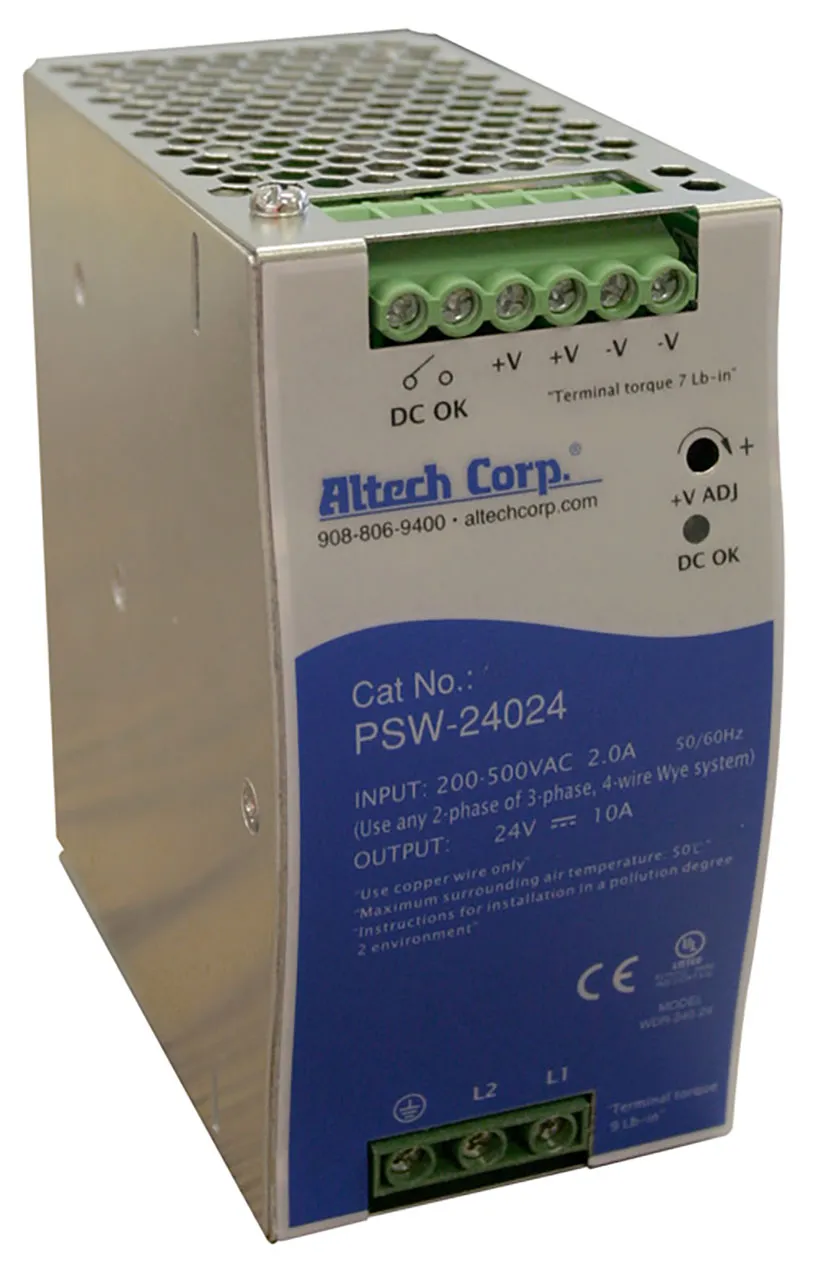

Power Supply DIN Rail 180-550VAC Input 24VDC Output 240W 10A Compact Wide Input Range PFC

Features

  • Single and two phase wide input range 180 to 550VAC
  • High efficiency 91% and low power dissipation
  • Protections: Short Circuit / Overload / Over Voltage / Overtemperature
  • Cooling by free air convection
  • DIN rail mountable
  • UL508 (industrial control equipment) approved
  • EN61000-6-2 (EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Built-in DC OK relay contact
  • 3 year warranty

Overview

Power Supply DIN Rail 180-550VAC Input 24VDC Output 240W 10A Compact Wide Input Range PFC

Product Identification

Manufacturer Series:PSW-240
Product Type:Single and Two Phase DIN Rail Power Supply

Compliance

Agency Approvals: CB, CE, CUL, EN, UL

Dimensions & Appearance

Color:Silver
Depth:4.47 in.
Width:2.48 in.
Height:4.93 in.

Operating conditions

Minimum Operating Temperature:-30°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:180 VAC to 550 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):24 to 28
Output Current:10 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:3000V
Efficiency:91%
Power Rating:240 W
,
