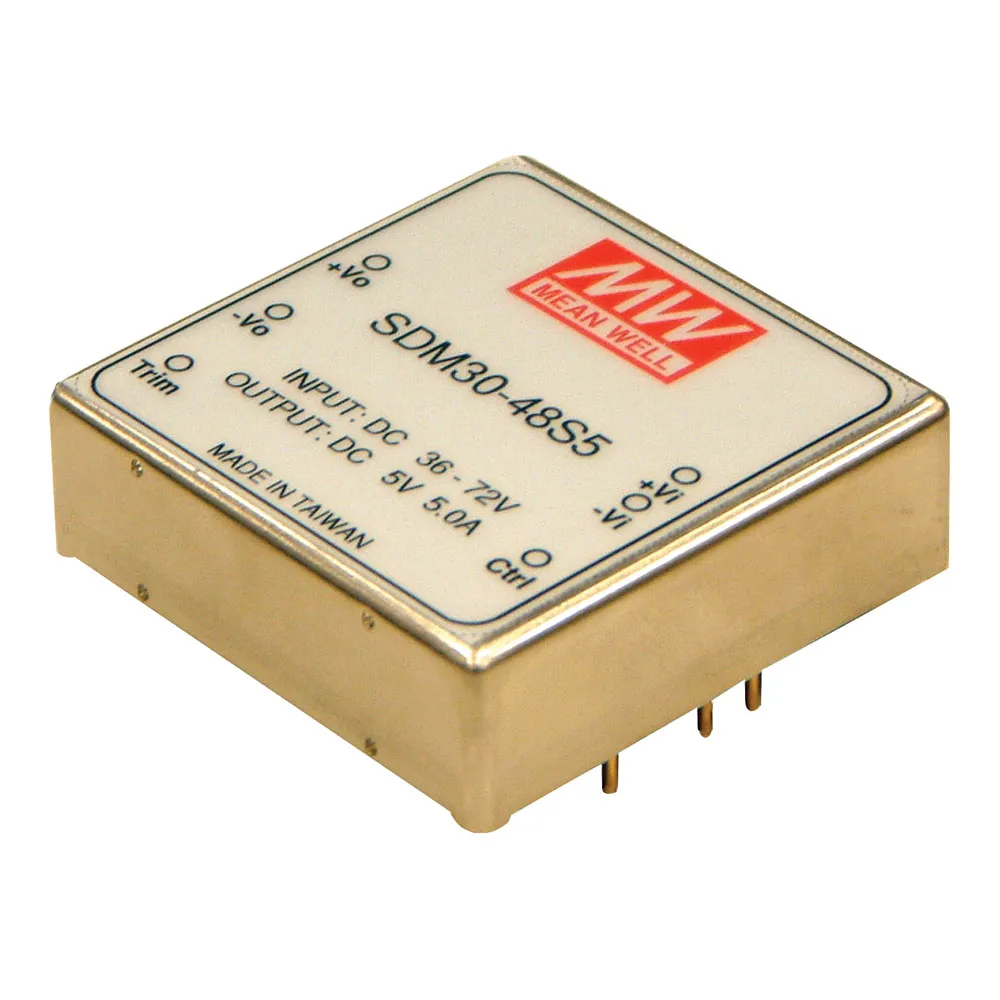

Isolated Regulated Encapsulated DC-to-DC Converter
SDM30 Series: Single Output
With efficiency as high as 85%, this impressive family of 30-watt encapsulated DC-to-DC converters provides full power output with free-air convection cooling. The compact size of 2.0"x2.0"x0.63" and the 6-sided shielded metal case lend to its easy adaptability to numerous types of applications. Input voltage ranges are a full 2:1. The line and load regulation are both a solid 1%. Protection includes short-circuit, overload to 105% with auto-recovery, and over-voltage to 150% of rated output. The isolation voltage is 1000VDC and the resistance is 100M? at 500VDC. The SDM30 series features 10% trimming output and remote ON/OFF control. They completely comply with EN55022 class B, FCC part 15J and EN60950 safety and EMI requirements.
- 1000VDC isolation
- Input filter: Pi-network
- Protection: short-circuit, overload, over-voltage
- 100% burn-in test
- Output trim
- Shielded metal case
- Industry standard package
- 2:1 wide input range
- Free-air convction cooling
- Remote ON/OFF
- One-year warranty
- Very high MTBF
- Working temperature: -25° to +85°C
- Input range: 18-36V
- Output voltage: +15V @ 2000mA
- Power: 30W
- Power density: 12.5W/in3
- Pins: 8
- Ripple & noise: 100mV p-p
- Line Reg.: 1.0%
- Load Reg.: 1.0%
- Isolation voltage: 1000
- Temperature: -25° to +85°C
- Efficiency: 83%
- Weight: 0.22 lbs.
