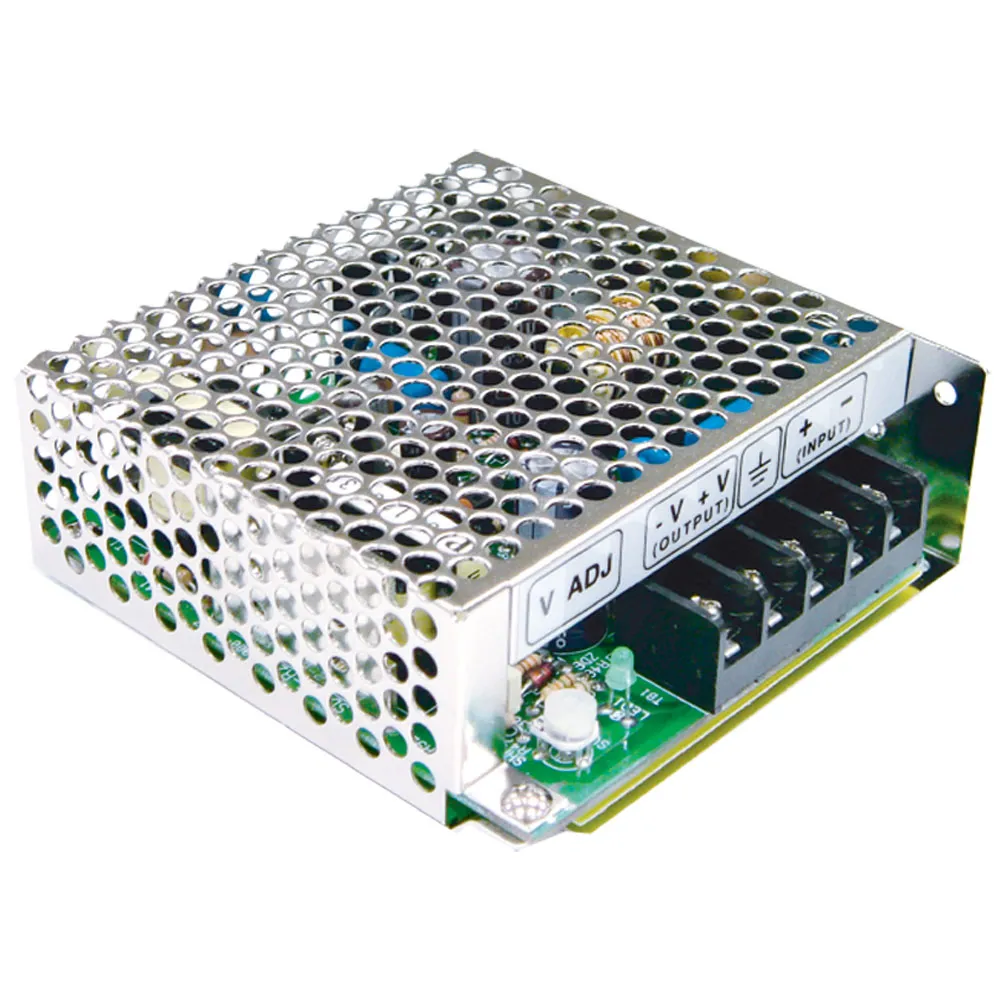

Isolated Enclosed DC-to-DC Converter
SD25 Series: Single Output

Well known for its reliability and low cost, the Mean Well SD-25 family of enclosed DC-to-DC converters offers wide 2:1 input voltage ranges. The physical ruggedness is complemented by the many electrical protections; short-circuit, overload with auto-recovery, and over-voltage to 165% of rated output. The input-to-output isolation is 500VDC and the isolation resistance is 100Mohm at 500VDC. The highly-efficient, low-temperature design provides full power from 0°C to 40°C, with derating to '10°C and +60°C . The line and load regulation are both  0.5% maximum. The Mean Well SD-25 series complies with EMC standards EN55022 class B and EN61000-4-2/3/4/6/8.

• 1000VDC isolation
• Input filter: Pi-network
• Protection: short-circuit, overload, over-voltage
• Free-air convection cooling
• 100% burn-in test
• 105°C output capacitor
• Shielded metal case
• Industry standard package
• 2:1 wide input range
• One-year warranty
• Very high MTBF
• Working temperature: -10° to +60°C
• Input range:36-72V
• Output voltage: +5V @ 5000mA
• Power: 25W
• Power density: 1.2W/in3
• Pins: 5
• Ripple & noise: 100mV p-p
• Line Reg.:  0.5%
• Load Reg.:  0.5%
• Isolation voltage: 500
• Temperature: -10° to +60°C
• Efficiency: 74%
• Weight: 0.8 lbs.
