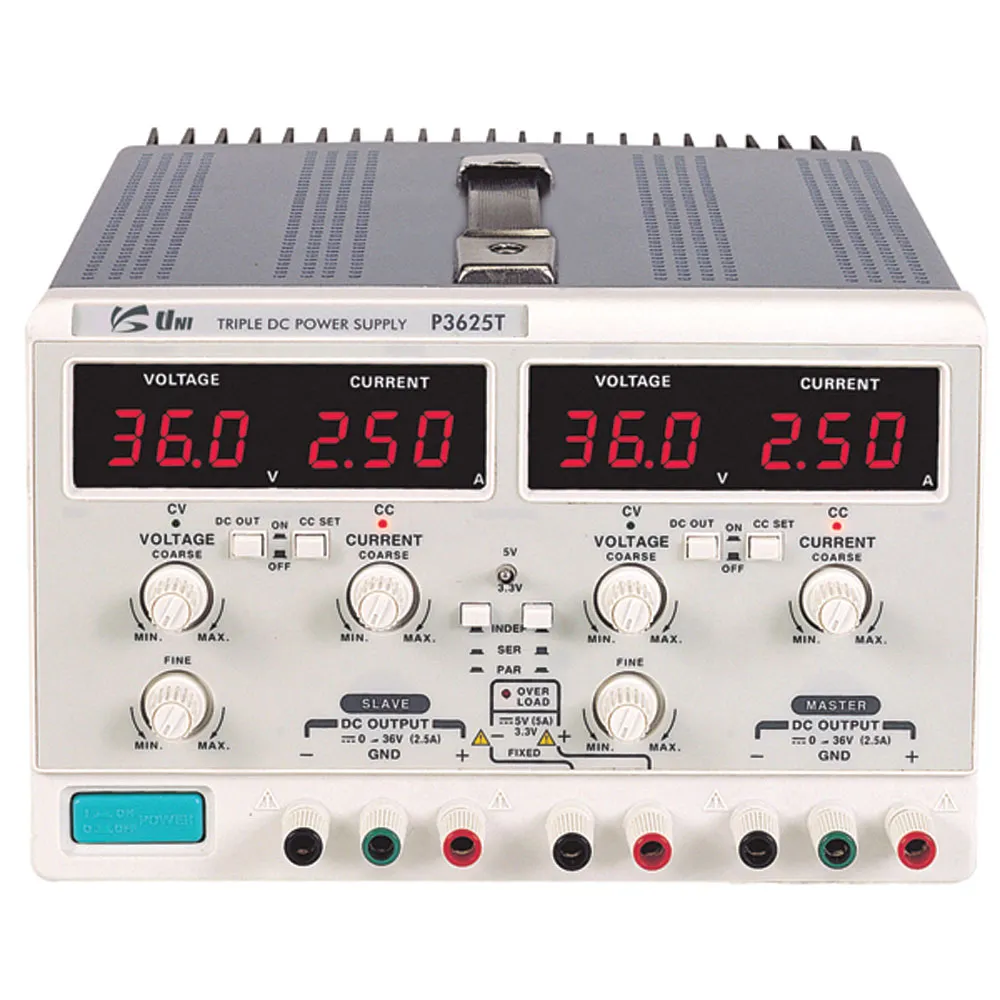

205W Triple Output AC/DC Switching Benchtop Power Supply


Channel 1: 0-36 Volts @ 2.5 Amps
Channel 2: 0-36 Volts @ 2.5 Amps
Channel 3: 3.3/5 Volts @ 5 Amps

Features:
  • Two independent adjustable outputs; One fixed output
  • Built-in digital numeric dual 3-digit Red LED display
  • Built-in current limiting circuit
  • Constant voltage and constant current LED indicators
  • Low power consumption: 400VA-300W
  • Input: 230VAC @ 50/60Hz
  • Size: 9.2"W x 12.8"D x 6.3"H (234mm(W) x 326mm(D) x 160mm (H))
  • Weight: 20.9 lbs. (9.5kg)
  • Includes: Instruction manual, power cord, test lead

    • Product Identification

    Product Type:Benchtop Power Supply

    Compliance

    RoHS Status:Undefined

    Output

    Number of Outputs:3
    Output Current:0 A to 2.5 A, 0 A to 5 A
    Output Voltage:0 VDC to 36 VDC, 0 VDC to 5 VDC, 0 VDC to 3.3 VDC
    ,
