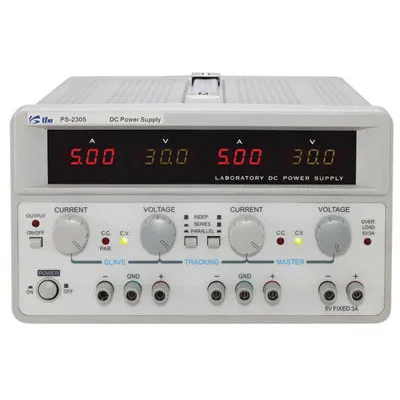

315W Triple Output AC/DC Switching Benchtop Power Supply


Channel 1: 0-30 Volts @ 5 Amps
Channel 2: 0-30 Volts @ 5 Amps
Channel 3: 5 Volts @ 3 Amps

Features:
  • Two independent adjustable outputs; One fixed output
  • 4 digital panel meters
  • Preset current limit point
  • Constant voltage, constant current, low ripple and noise, low temperature drift
  • Over-current and overload protection
  • Output standby function
  • Multi-tune potentiometer, easy to set up voltage
  • Input: 110/220VAC @ 50/60Hz
  • Size: 9.6"W x 13.6"D x 5.5"H (245mm(W) x 345mm(D) x 140mm (H))
  • Weight: 22 lbs. (10kg)

    • Product Identification

    Product Type:Benchtop Power Supply

    Compliance

    RoHS Status:Undefined

    Dimensions & Appearance

    Weight:22 lbs.
    Depth:13.6 in.
    Height:5.5 in.
    Width:9.6 in.

    Input

    Input Frequency:50Hz, 60Hz
    Input Voltage:110 VAC, 220 VAC

    Output

    Number of Outputs:3
    Output Voltage:0 VDC to 30 VDC, 5 VDC
    Output Current:0 A to 5 A
    Output Connector Type:Banana Jacks

    Features

    Type of Displays:Digital LED
    Power Rating:300 W
    ,
