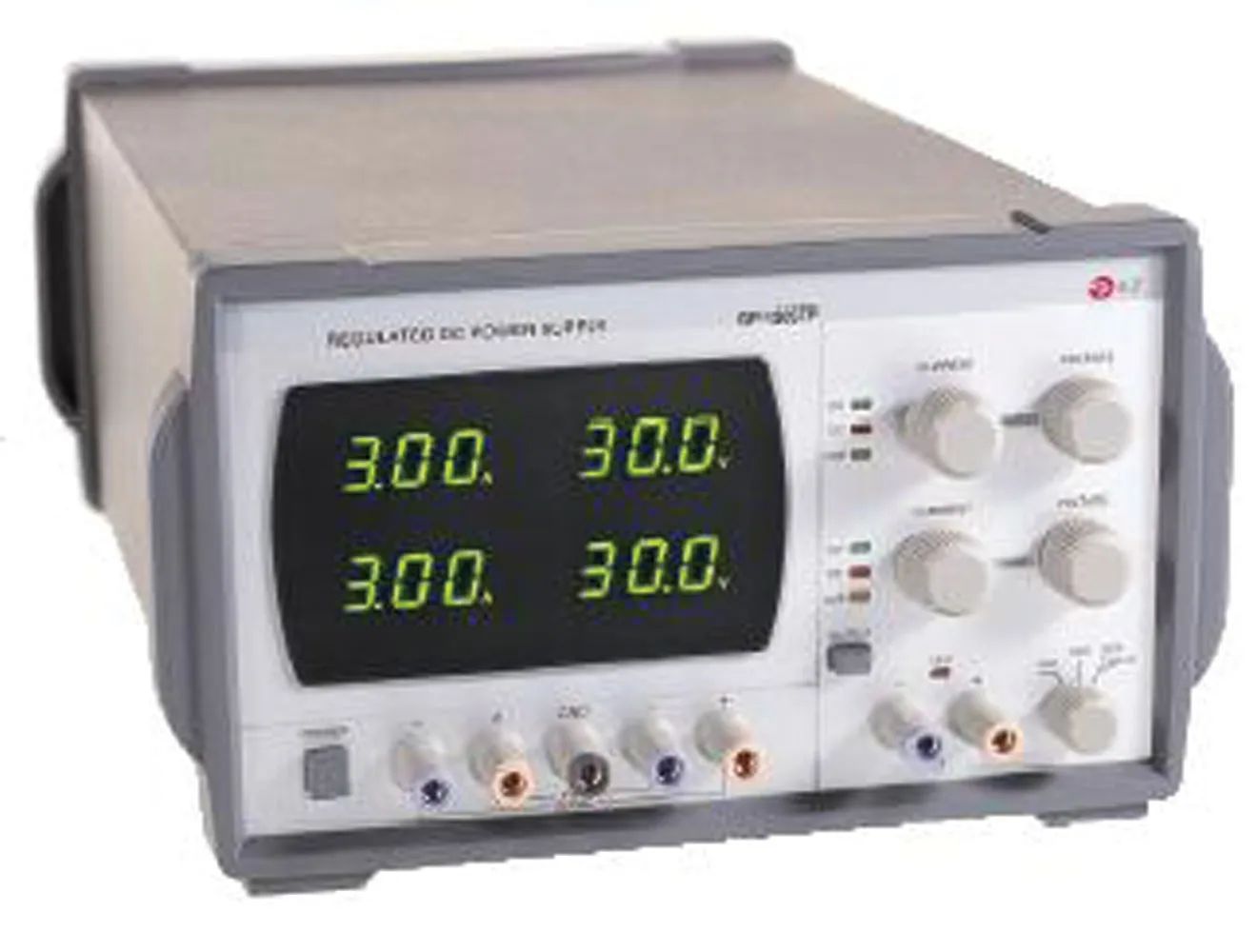

180W Double Output AC/DC Benchtop Power Supply


0~±30 Volts @ 0~3 Amps

Features:
  • Input: 90-132VAC/198-264VAC @ 50/60Hz
  • Constant Voltage (CV) and Constant Current (CC) operation
  • Built-in 3-digit green LED display
  • Auto Tracking
  • Low ripple and noise
  • Auto series and parallel operation
  • Overload and over-voltage protection
  • No load current limit control function
  • Optional external remote control operation
  • Size: 9.25"W x 5.35"H x 14.6"D (235mm(W) x 136mm (H) x 370mm (D))
  • Weight: 25.4 lbs. (11.5kg)
  • Includes: User's manual, power cord, 2 short-circuit bars, fuse

    • Product Identification

    Product Type:Benchtop Power Supply

    Compliance

    RoHS Status:Undefined

    Dimensions & Appearance

    Weight:26 lbs.
    Depth:14.6 in.
    Height:5.4 in.
    Width:9.3 in.

    Input

    Input Frequency:50Hz, 60Hz
    Input Voltage:90 VAC to 132 VAC, 198 VAC to 264 VAC

    Output

    Number of Outputs:2
    Output Voltage:0 VDC to 60 VDC
    Output Connector Type:Banana Jacks

    Features

    Type of Displays:Digital LED
    Power Rating:180 W
    ,
