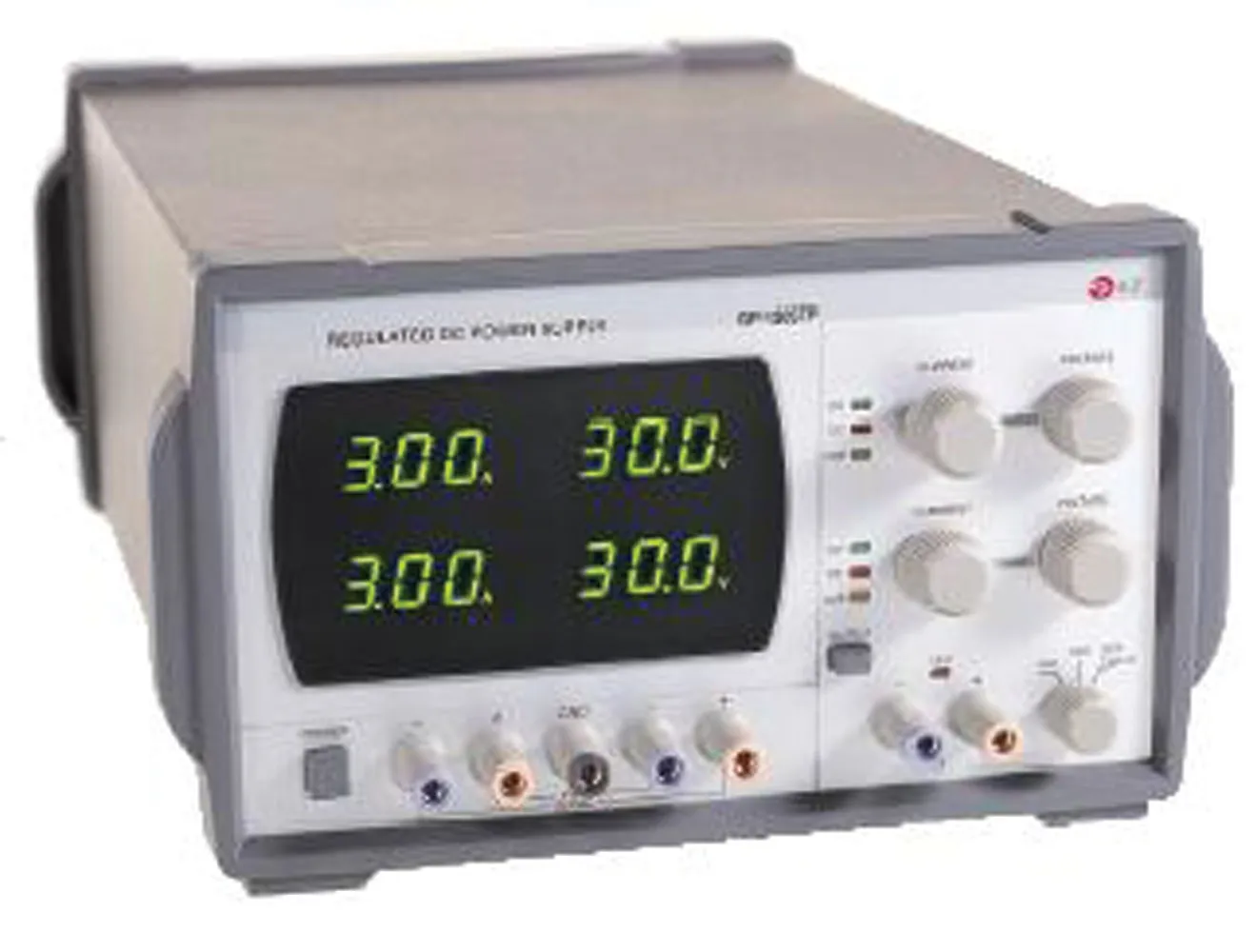

195W Triple Output AC/DC Benchtop Power Supply

0 to ±30 Volts @ 0 to 3 Amps
5 Volts @ 3 Amps

Features:

  • Input: 90-132VAC/198-264VAC @ 50/60Hz
  • Constant Voltage (CV) and Constant Current (CC) operation
  • Built-in 3-digit green LED display
  • Auto Tracking
  • Low ripple and noise
  • Auto series and parallel operation
  • Overload and over-voltage protection
  • No load current limit control function
  • Optional external remote control operation
  • Size: 9.25"W x 5.35"H x 14.6"D (235mm(W) x 136mm (H) x 370mm (D))
  • Weight: 25.4 lbs. (11.5kg)
  • Includes: User's manual, power cord, 2 short-circuit bars, fuse

Product Identification

Product Type:Benchtop Power Supply

Compliance

RoHS Status:Undefined

Dimensions & Appearance

Weight:26 lbs.
Depth:14.6 in.
Height:5.4 in.
Width:9.3 in.

Input

Input Frequency:50Hz, 60Hz
Input Voltage:90 VAC to 132 VAC, 198 VAC to 264 VAC

Output

Number of Outputs:3
Output Voltage:0 VDC to 60 VDC
Output Connector Type:Banana Jacks

Features

Type of Displays:Digital LED
Power Rating:195 W
,
