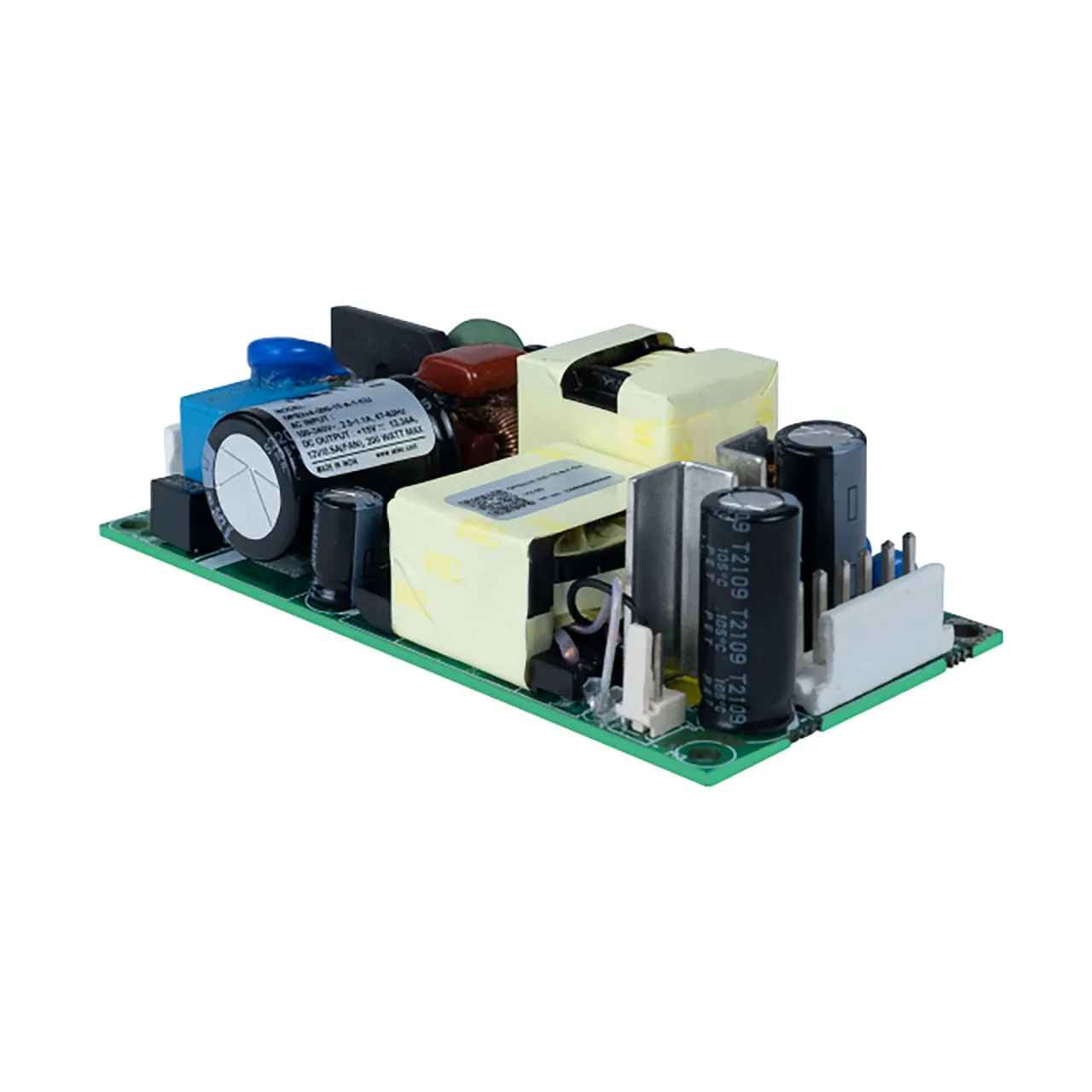

Power Supply 4 x 2 x 1.16 Inches Form Factor 15V 13.33A 200W w/FAC & 15V 8.67A 130W w/CC

Features

  • 4 x 2 x 1.16 Inches Form factor
  • 200 Watts with forced air cooling & 130 watts convection cooling
  • 12V / 0.5A fan output, thermal shut-down feature
  • Efficiencies up to 93%
  • -40C to + 70C operating temperature
  • Medical (BF) Safety Approvals
  • Means of Protection: 2xMOPP
  • No Load Power < 0.5W
  • Class II Option Available
  • Approved to Household, ITAV and Medical standards

Overview

Power Supply, 4 x 2 x 1.16 Inches Form Factor, 15V, 13.33A, 200 Watts with Forced Air Cooling & 15V, 8.67A, 130 Watts Convection Cooling

Product Identification

Type:Auto Switching SMPS
Product Type:Medical AC to DC Power Supply SMPS
Manufacturer Series:OPS2x4-200

Compliance

Agency Approvals:UL

Dimensions & Appearance

Style:Medical Open Frame
Color:Green
Height:1.16 in.
Width:2 in.
Length:4 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:2 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Additional Output Voltages (VDC):12V
Output Voltage:15 VDC
Output Connector Type:Tyco 640445-6
Output Current:13.34 A

Features

PFC Function:Yes
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED
Efficiency:91%
Power Rating:200 W
,
