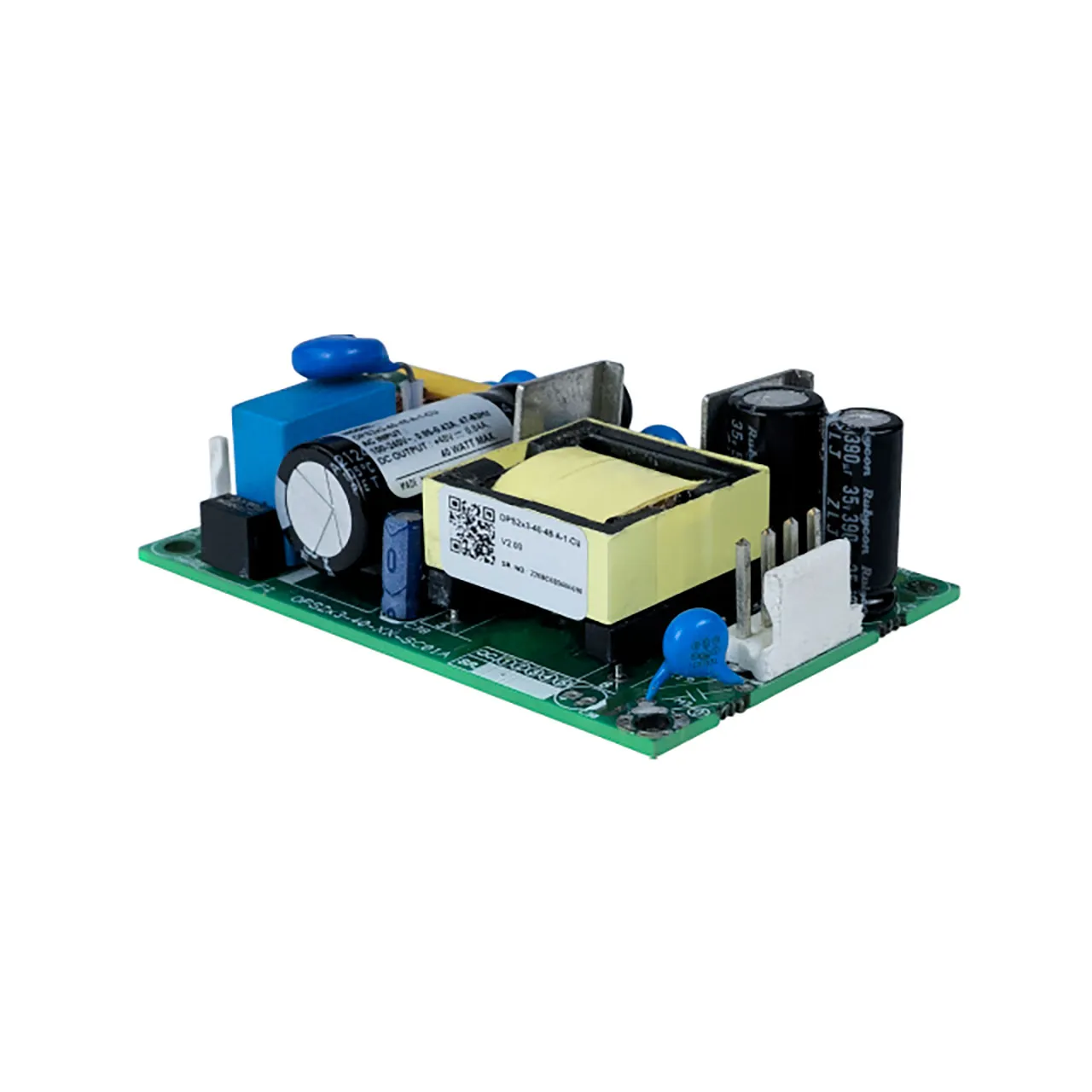

Power Supply 3 x 2 x 1.16 Inches Form Factor 48V 0.83A 40 Watts with Convection Cooling

Features

  • 3 x 2 x 1.16 Inches Form factor
  • 40 Watts Convection
  • Efficiencies up to 86 %
  • -40C to + 70C operating temperature
  • Medical (BF) Safety Approvals
  • Means of Protection: 2xMOPP
  • No Load Power < 0.5W
  • Class II Option Available
  • Approved to Household, ITAV and Medical standards

Overview

Power Supply, 3 x 2 x 1.16 Inches Form Factor, 48V, 0.83A, 40 Watts with Convection Cooling

Product Identification

Type:Auto Switching SMPS
Product Type:Medical AC to DC Power Supply SMPS
Manufacturer Series:OPS2x3-40

Compliance

Agency Approvals:UL

Dimensions & Appearance

Style:Medical Open Frame
Color:Green
Height:1.16 in.
Width:2 in.
Length:3 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:0.85 A

Output

Number of Outputs:1
Output Connector Diameters:N/A
Additional Output Voltages (VDC):12V
Output Connector Type:Tyco 640445-4
Output Voltage:48 VDC
Output Current:0.84 A

Features

PFC Function:No
Minimum Isolation Voltage:4000V
AC Power Cord:NOT INCLUDED
Efficiency:86%
Power Rating:40 W
,
