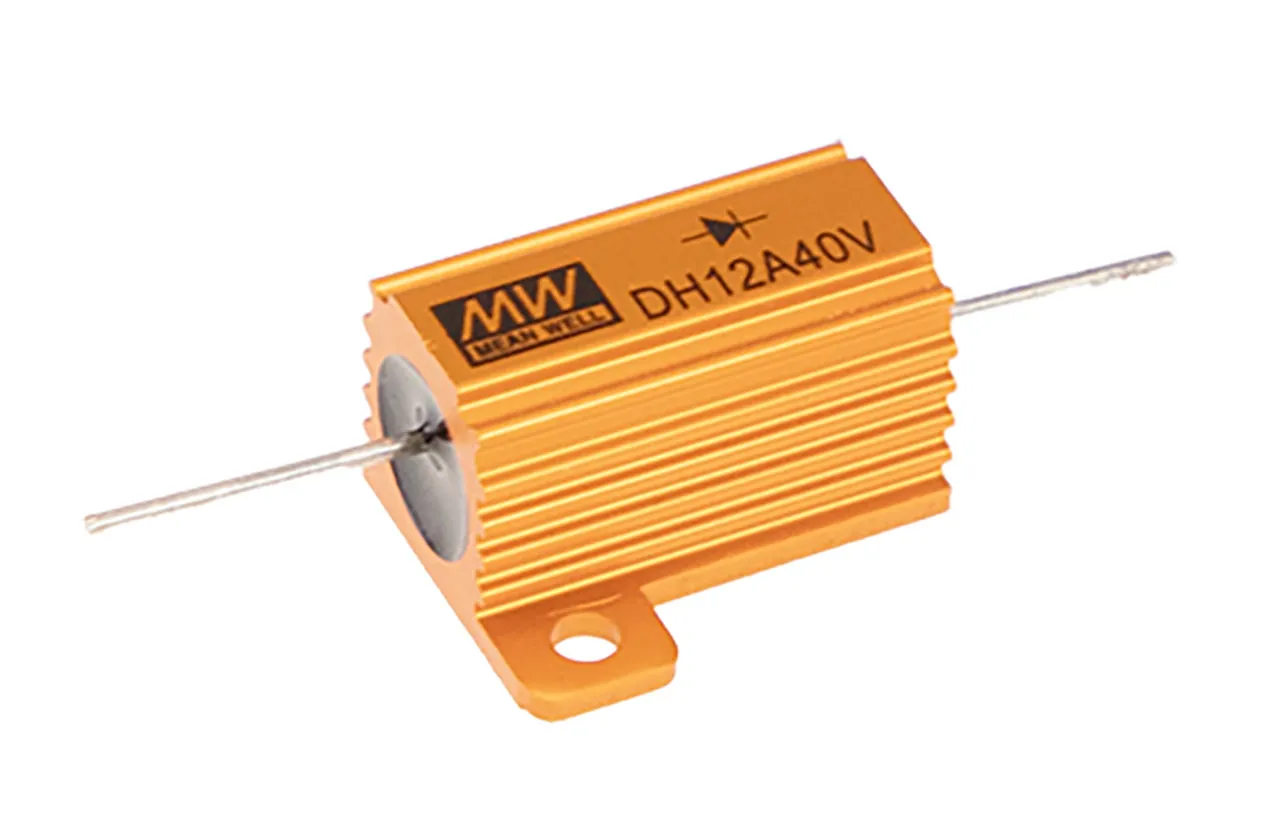

Diode Schottky 40V 12A Chassis Mount

Specifications

• Diode Type: Schottky
• Voltage - DC Reverse (Vr) (Max): 40 V
• Current - Average Rectified (Io): 12 A
• Voltage - Forward (Vf) (Max) @ If: 500 mV @ 12 A
• Current - Reverse Leakage @ Vr: 5 µA @ 40 V
• Capacitance @ Vr, F: 350 pF
• Mounting Type: Chassis
• Operating Temperature - Junction: 125°C (Max)

Overview

This 40V power Schottky rectifier diode features a low forward voltage drop, 12A high current capability for high reliability and also has high surge current capability of 275A.
