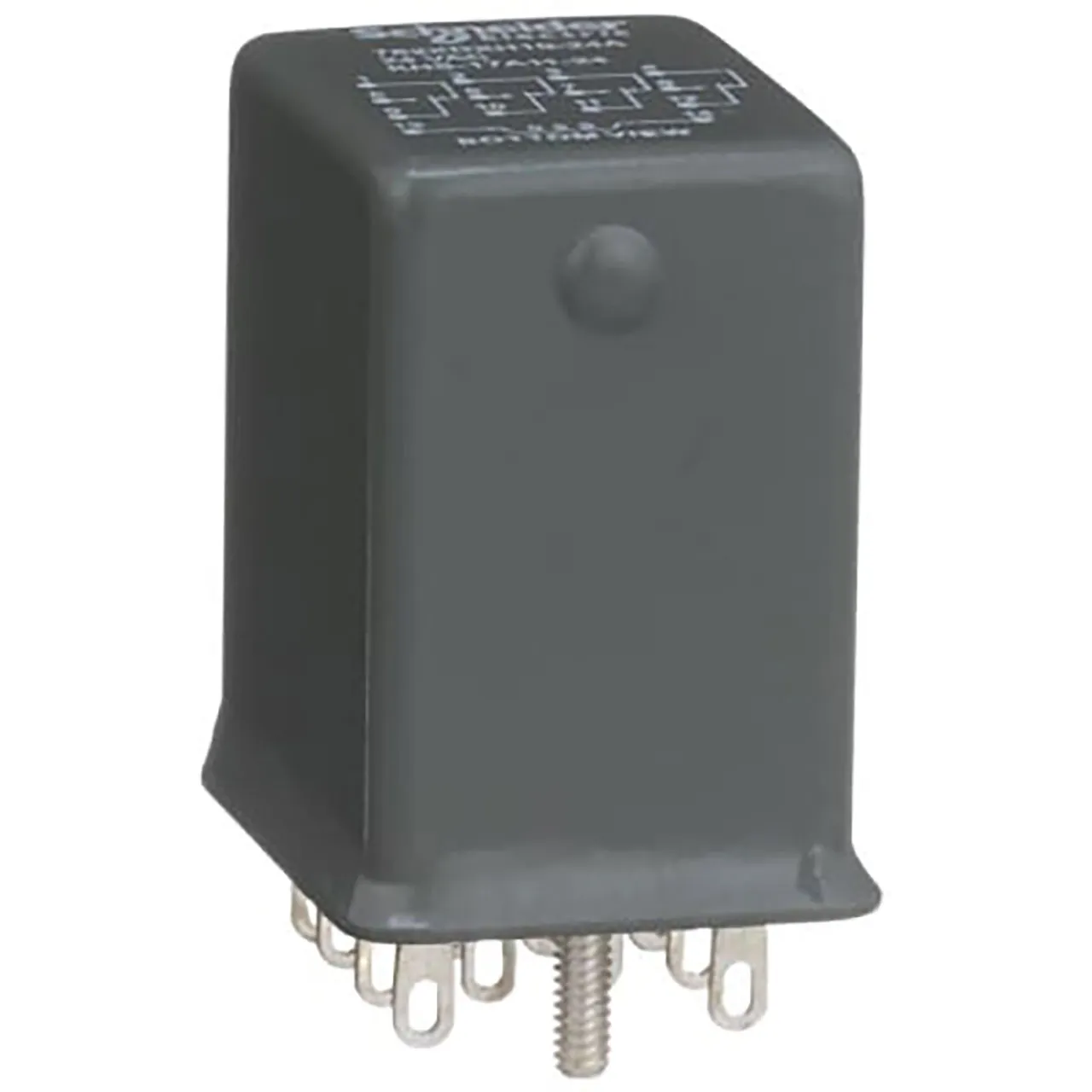

Power Relay Electromechanical Hermidically Sealed 24VDC 3A 4 CO Faston Terminals/Plug-In Contacts 782 Series

Features

  • Product Type: Plug-in Relays
  • UPC: 3606480281020
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: Harmony
  • Mounting Type: Socketable
  • Coil Voltage: 24 VDC
  • Contact Form: 4PDT (4 Form C)
  • Contact Rating (Current): 3A
  • Switching Voltage: 240VAC - Max
  • Load - Max Switching: 720VA
  • Coil Current: 36.9 mA
  • Coil Type: Non Latching
  • Features: N/A
  • Termination Style: Plug In
  • Seal Rating: Sealed - Hermetically
  • Coil Insulation: N/A
  • Must Operate Voltage: N/A
  • Must Release Voltage: N/A
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Operating Temperature: -45°C ~ 70°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: CE, CSA, UL
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, Hermidically Sealed, 24VDC, 3A, 4 CO, Faston Terminals/Plug-In Contacts, 782 Series.

Product Identification

Additional Feature:N/A
Product Type:Electromechanical Relay, Industrial
Manufacturer Series:Harmony

Compliance

Agency Approvals: CSA, UL, CE

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-45°C
Maximum Operating Temperature:70deg;C

Features

Relay Construction:Non Latching
Coil Voltage:24 VDC
Control Voltage:240 VAC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Form:4PDT (4 Form C)
Contact Rating:3 A
Termination:Plug In
,
