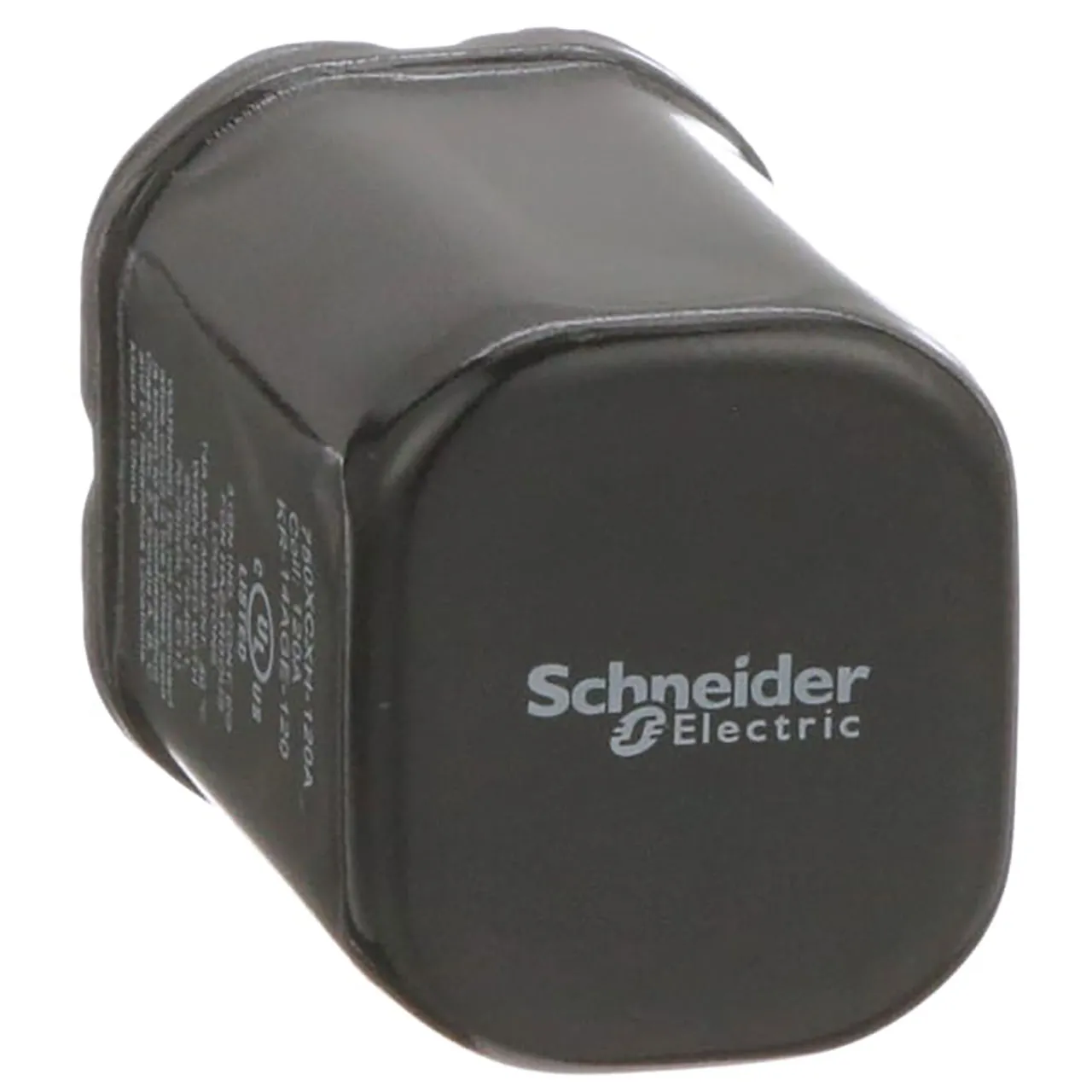

Power Relay Electromechanical Hermetically Sealed 120VAC 16A 3PDT 1700 Ohms 11 Pin Octal Plug-In 750H Series

Features

  • Product Type: Plug-in Relays
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: 750R
  • Mounting Type: Socketable
  • Coil Voltage: 120 VAC
  • Contact Form: 3PDT (3 Form C)
  • Contact Rating (Current): 12A
  • Switching Voltage: 300VAC, 28VDC - Max
  • Load - Max Switching: 3600VA, 336W
  • Coil Current: 70.6 mA
  • Coil Type: Non Latching
  • Features: N/A
  • Termination Style: Plug In, 11 Pin (Octal)
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 102 VAC
  • Must Release Voltage: 18 VAC
  • Operate Time: 20 ms
  • Release Time: -40°C ~ 55°C
  • Operating Temperature: Silver Alloy
  • Contact Material: CSA UL, UR
  • Approval Agency: General Purpose
  • Relay Type: N/A
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, Hermetically Sealed, 120VAC, 16A, 3PDT, 1700 Ohms, 11 Pin Octal Plug-In, 750H Series.

Product Identification

Additional Feature:N/A
Product Type:Hermetically-Sealed Relay
Manufacturer Series:750R

Compliance

Agency Approvals: UL, CSA

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Control Voltage: 28 VDC - Max, 300 VAC
Coil Voltage:120 VAC
Contact Material:Silver Alloy
Contact Form:3PDT (3 Form C)
Termination: 11 Pin (Octal), Plug In
Contact Rating:12 A
,
