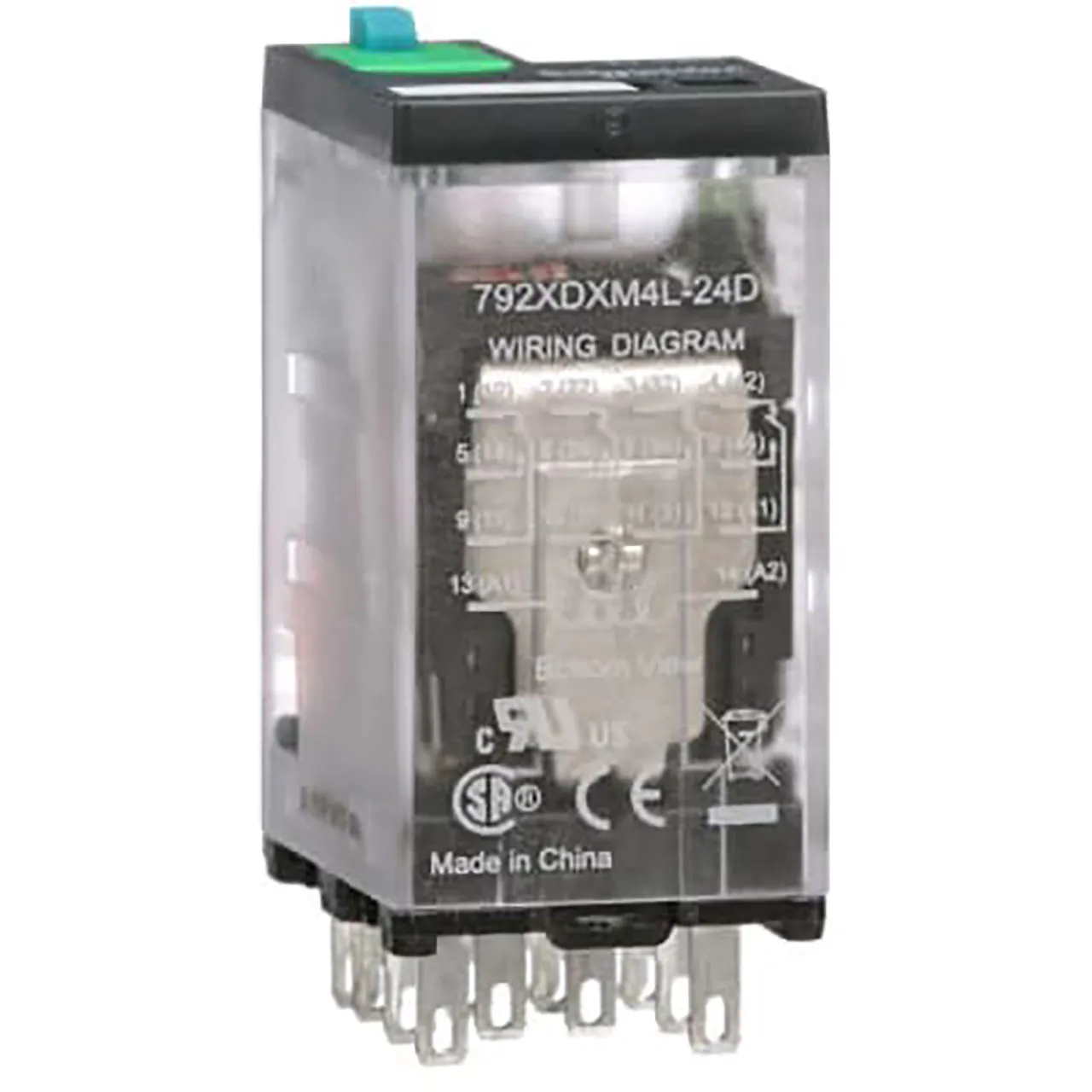

Power Relay Electromechanical General Purpose 24VDC 6A 4PDT QC/Solder/Plug-In Contacts LED Test Light 792 Series

Features

  • Product Type: Plug-in Relays
  • UPC: 3606480781551
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: Legacy
  • Mounting Type: Socketable
  • Coil Voltage: 24 VDC
  • Contact Form: 4PDT (4 Form C)
  • Contact Rating (Current): 6A
  • Switching Voltage: 300VAC, 30VDC - Max
  • Load - Max Switching: 1800VA, 180W
  • Coil Current: 37.5 mA
  • Coil Type: Non Latching
  • Features: Test Button
  • Termination Style: Plug In
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 19.2 VDC
  • Must Release Voltage: 2.4 VDC
  • Operate Time: 25 ms
  • Release Time: N/A
  • Operating Temperature: -40°C ~ 55°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: N/A
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 24VDC, 6A, 4PDT, QC/Solder/Plug-In Contacts, LED Test Light, 792 Series.

Product Identification

Additional Feature:Test Button
Product Type:Electromechanical Relay, Industrial
Manufacturer Series:Legacy

Compliance

Agency Approvals:A, N

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Coil Voltage:24 VDC
Control Voltage:300 VAC, 30 VDC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Form:4PDT (4 Form C)
Contact Rating:6 A
Termination:Plug In
,
