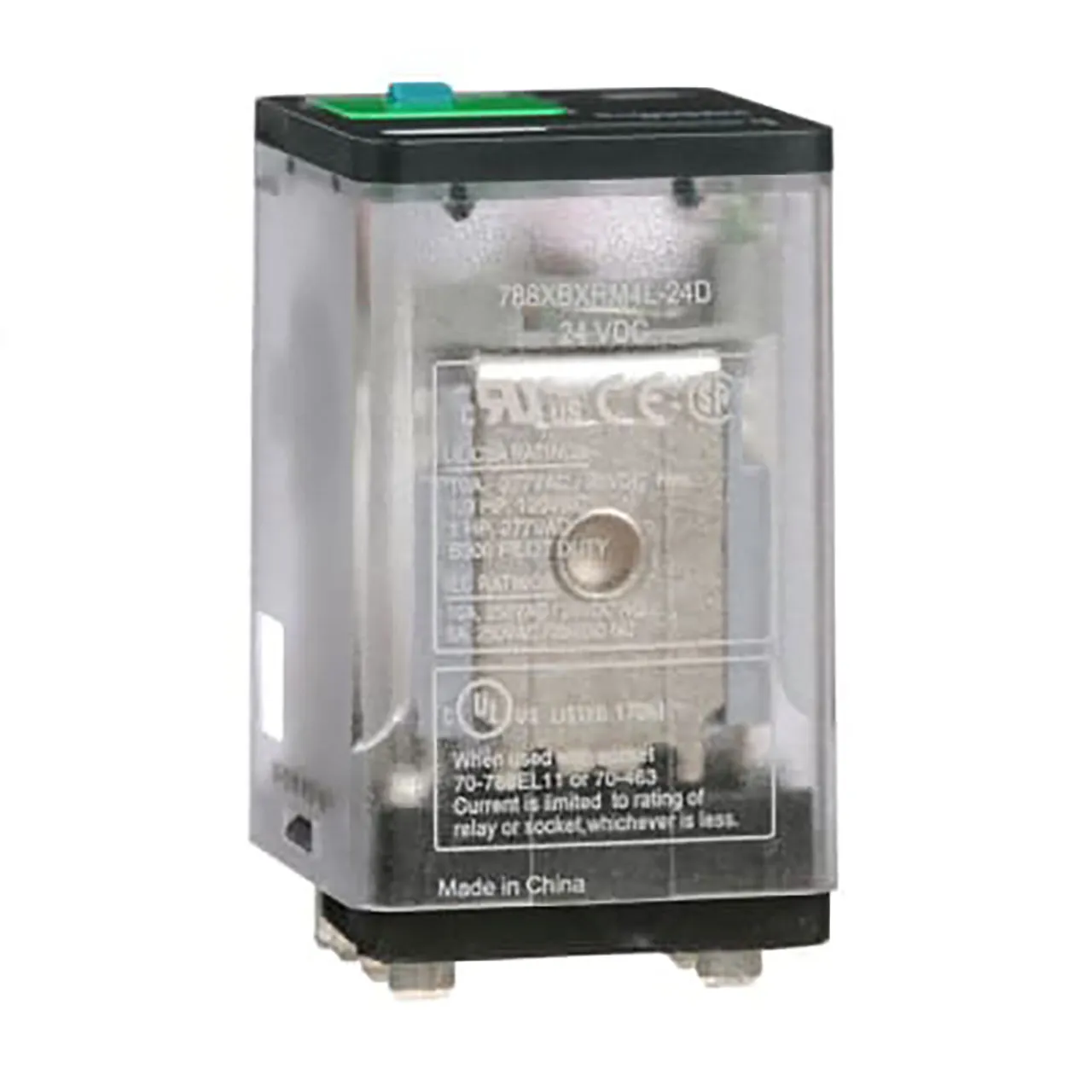

Power Relay Electromechanical General Purpose 24VDC 10A DPDT QC/Plug-In Contacts 788R Series

Features

  • Product Type: Plug-in Relays
  • UPC: 03606480779893
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: 788R
  • Mounting Type: Socketable
  • Coil Voltage: 24 VDC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 10A
  • Switching Voltage: 300VAC, 30VDC - Max
  • Load - Max Switching: 3000VA, 300W
  • Coil Current: 51.1 mA
  • Coil Type: Non Latching
  • Features: Test Button
  • Termination Style: Plug In, Quick Connect - 0.250" (6.3mm)
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 19.2 VDC
  • Must Release Voltage: 2.4 VDC
  • Operate Time: 20 ms
  • Release Time: N/A
  • Operating Temperature: -40°C ~ 55°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: CE, CSA, UL
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 24VDC, 10A, DPDT, QC/Plug-In Contacts, 788R Series.

Product Identification

Manufacturer Series:788R
Additional Feature:Test Button
Product Type:Electromechanical Relay, Industrial

Compliance

Agency Approvals: CSA, UL, CE

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Coil Voltage:24 VDC
Control Voltage: 30 VDC - Max, 300 VAC
Contact Form:DPDT (2 Form C)
Termination: Quick Connect - 0.250" (6.3mm), Plug In
Contact Material:Silver (Ag), Gold (Au)
Contact Rating:10 A
,
