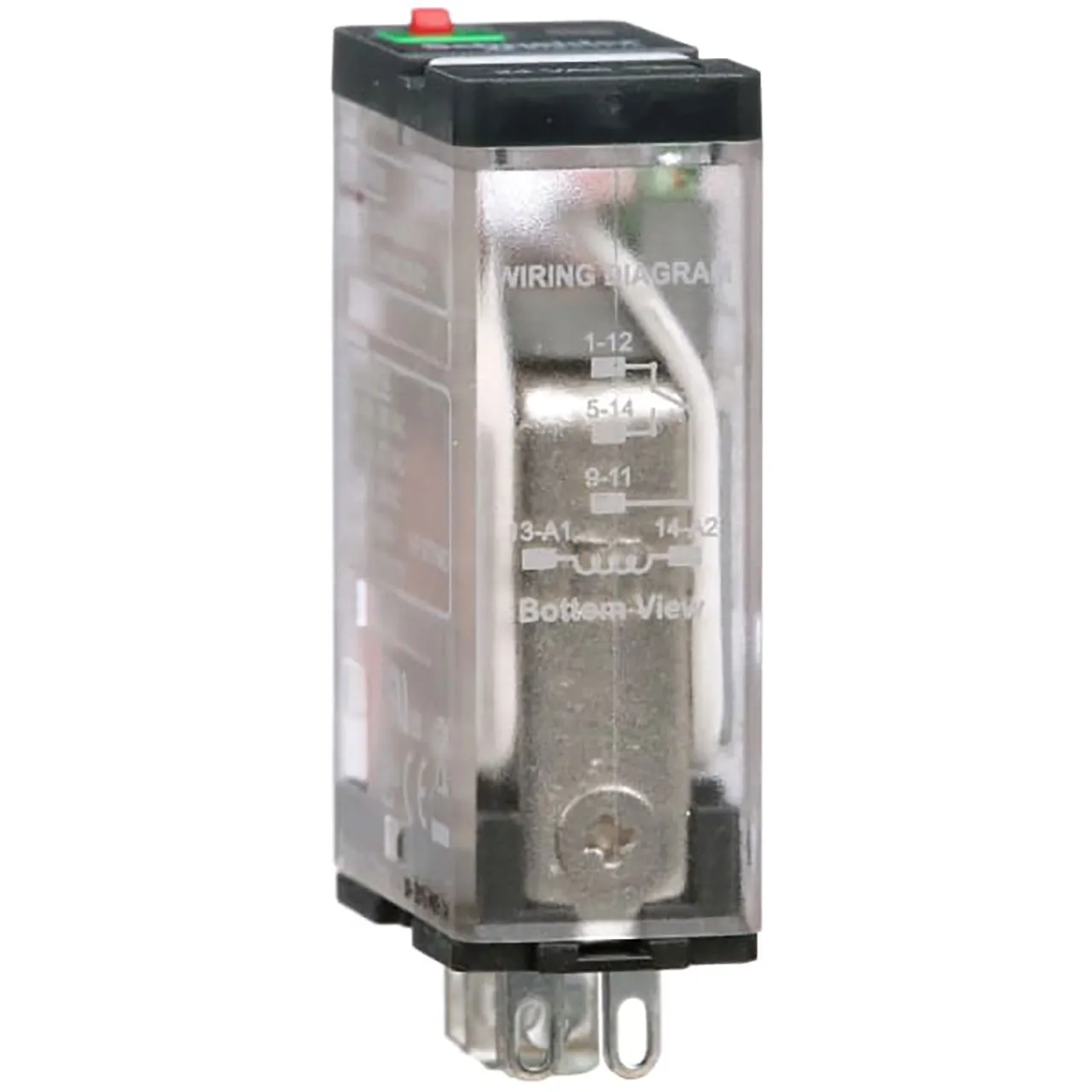

Power Relay Electromechanical General Purpose 24VAC 15A SPDT 300VAC Contact Rating Ice Cube Style QC/Solder/Plug-In Contacts 781 Series

Features

• Product Type: Plug-in Relays
• Harmonized Code: 8538.90.9000
• ECCN: EAR99
• Series: Legacy
• Mounting Type: Socketable
• Coil Voltage: 24 VAC
• Contact Form: SPDT (1 Form C)
• Contact Rating (Current): 15 A
• Switching Voltage: 300VAC, 28VDC - Max
• Load - Max Switching: 4500VA, 420W
• Coil Current: 135.6 mA
• Coil Type: Non Latching
• Features: Test Button
• Termination Style: Plug In
• Seal Rating: N/A
• Coil Insulation: N/A
• Must Operate Voltage: 19.2 VAC
• Must Release Voltage: 3.6 VAC
• Operate Time: 20 ms
• Release Time: 20 ms
• Operating Temperature: -40°C ~ 55°C
• Contact Material: Silver (Ag), Gold (Au)
• Approval Agency: N/A
• Relay Type: General Purpose
• Grade: N/A
• Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 24VAC, 15A, SPDT, 300VAC Contact Rating, Ice Cube Style, QC/Solder/Plug-In Contacts, 781 Series.
