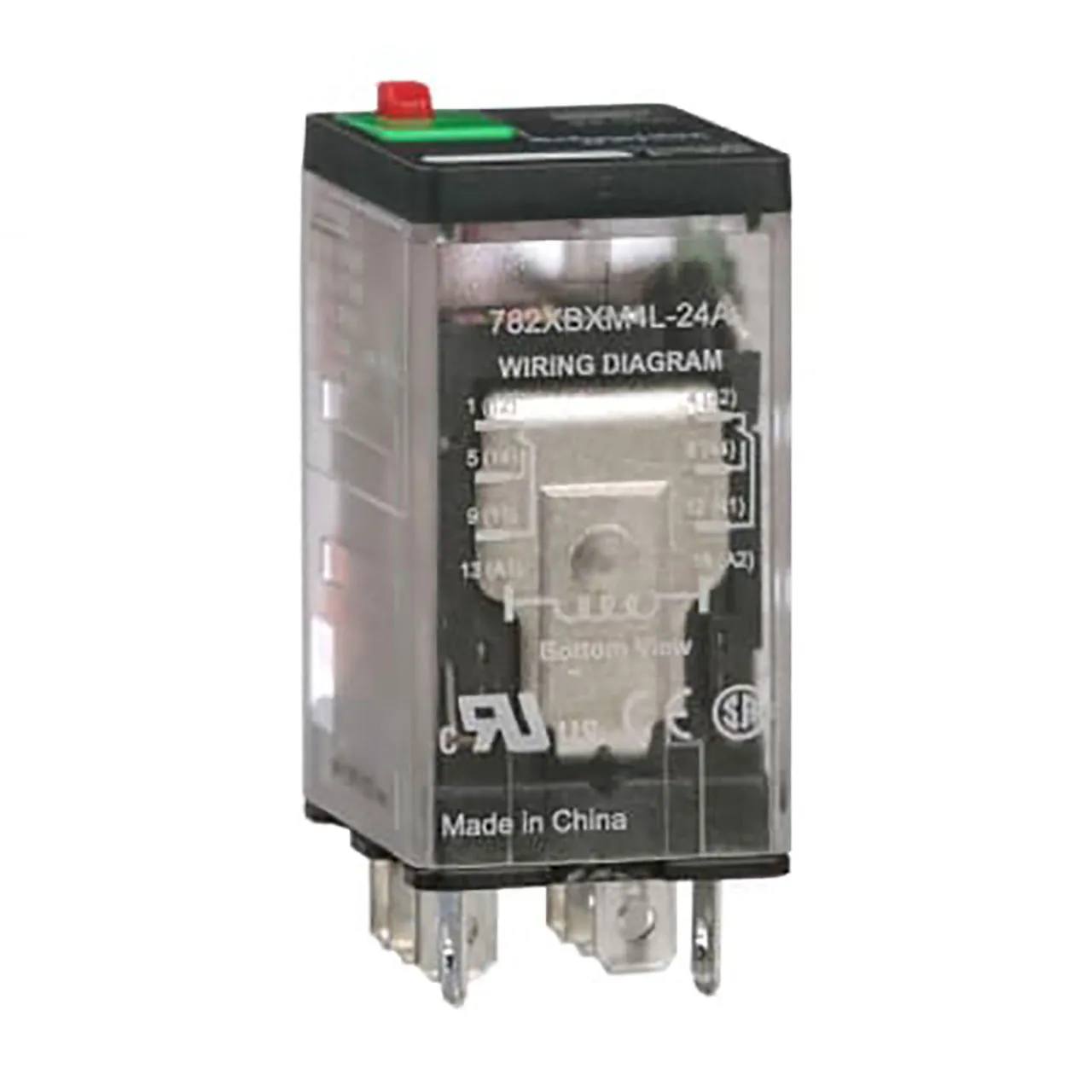

Power Relay Electromechanical General Purpose 24VAC 15A DPDT Faston Terminals/Plug-In Contacts LED Test Light 782 Series

Features

  • Product Type: Plug-in Relays
  • UPC: 3606480280375
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: Legacy
  • Mounting Type: Socketable
  • Coil Voltage: 24 VAC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 15 A
  • Switching Voltage: 300VAC, 28VDC - Max
  • Load - Max Switching: 4500VA, 420W
  • Coil Current: 135.6 mA
  • Coil Type: Non Latching
  • Features: Test Button
  • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 19.2 VAC
  • Must Release Voltage: 3.6 VAC
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Operating Temperature: -40°C ~ 55°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: N/A
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 24VAC, 15A, DPDT, Faston Terminals/Plug-In Contacts, LED Test Light, 782 Series.

Product Identification

Additional Feature:Test Button
Product Type:General Purpose
Manufacturer Series:Legacy

Compliance

Agency Approvals:A, N

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Coil Voltage:24 VAC
Termination:Plug In, Quick Connect - 0.187" (4.7mm)
Contact Form:DPDT (2 Form C)
Control Voltage:300 VAC, 28 VDC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Rating:15 A
,
