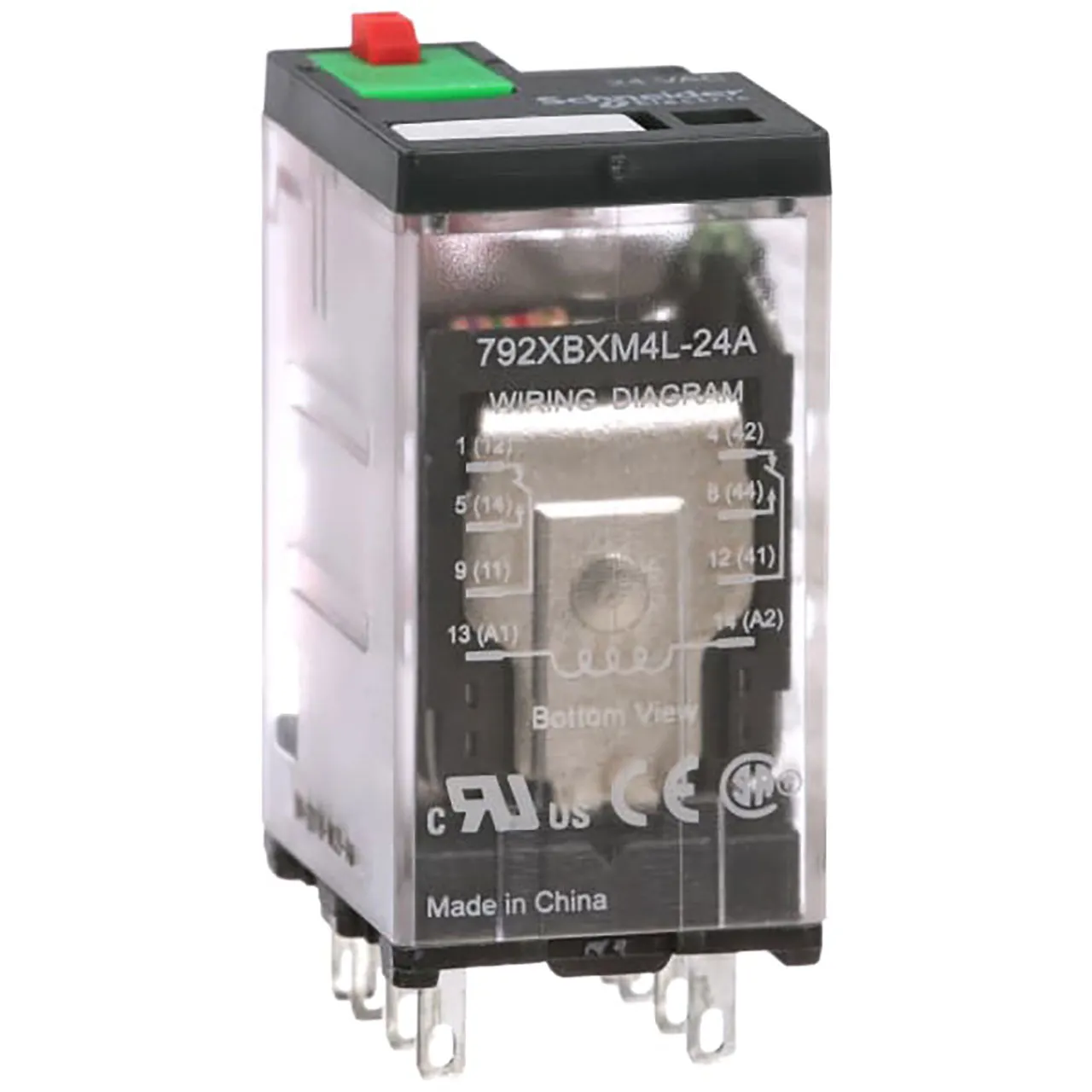

Power Relay Electromechanical General Purpose 24VAC 12A DPDT QC/Solder/Plug-In Contacts 792 Series
Features
- Product Type: Plug-in Relays
- Harmonized Code: 8538.90.9000
- ECCN: EAR99
- Series: Legacy
- Mounting Type: Socketable
- Coil Voltage: 24 VAC
- Contact Form: DPDT (2 Form C)
- Contact Rating (Current): 12A
- Switching Voltage: 300VAC, 30VDC - Max
- Load - Max Switching: 3600VA, 360W
- Coil Current: 135.6 mA
- Coil Type: Non Latching
- Features: Lighted Indicator, Test Button
- Termination Style: Plug In
- Seal Rating: N/A
- Coil Insulation: N/A
- Must Operate Voltage: 19.2 VAC
- Must Release Voltage: 3.6 VAC
- Operate Time: 25 ms
- Release Time: N/A
- Operating Temperature: -40°C ~ 55°C
- Contact Material: Silver (Ag), Gold (Au)
- Approval Agency: N/A
- Relay Type: General Purpose
- Grade: N/A
- Qualification: N/A
Overview
Power Relay, Electromechanical, General Purpose, 24VAC, 12A, DPDT, QC/Solder/Plug-In Contacts, 792 Series.
Product Identification
Additional Feature:Lighted Indicator, Test Button
Product Type:Electromechanical Relay, Industrial
Manufacturer Series:Legacy
Compliance
Agency Approvals:A, N
Dimensions & Appearance
Mounting:Socketable
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C
Features
Relay Construction:Non Latching
Coil Voltage:24 VAC
Contact Form:DPDT (2 Form C)
Control Voltage:300 VAC, 30 VDC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Rating:12 A
Termination:Plug In
