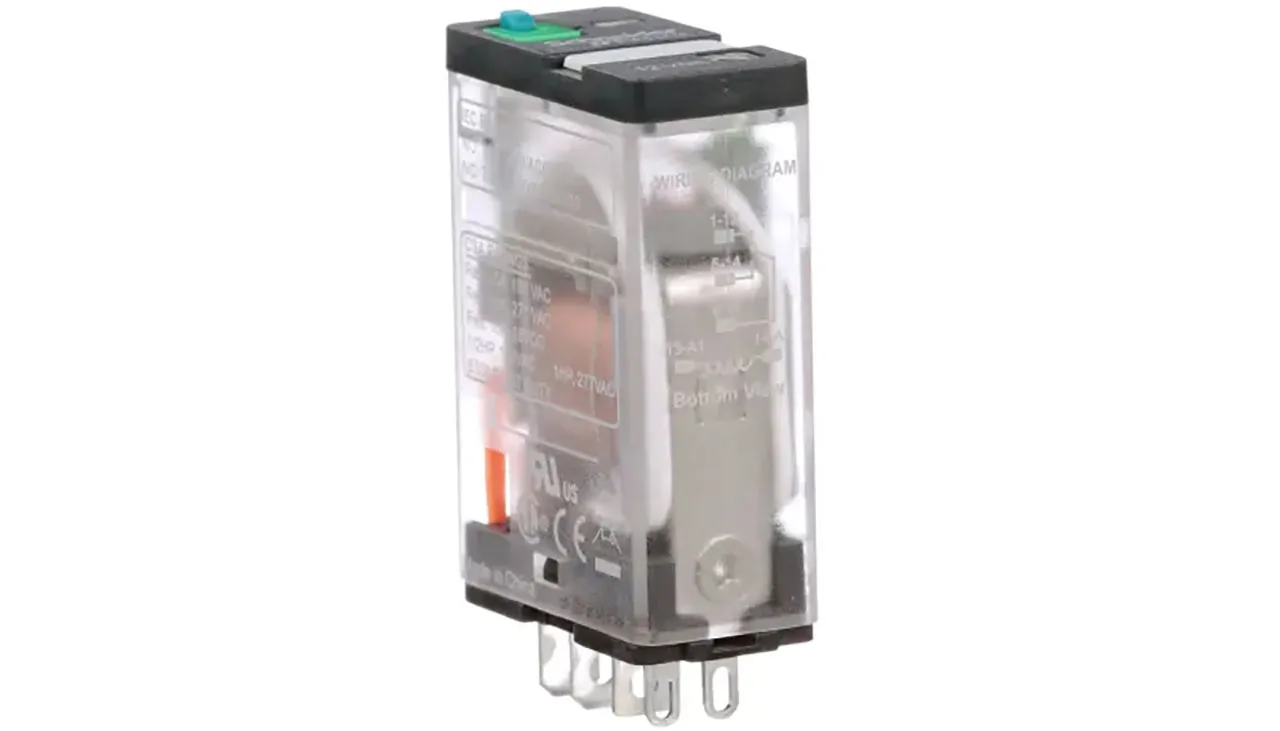

Power Relay Electromechanical General Purpose 12VDC 15A SPDT 300VAC Contact Rating Ice Cube Style QC/Solder/Plug-In Contacts 781 Series

Features

  • Product Type: Plug-in Relays
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: Legacy
  • Mounting Type: Socketable
  • Coil Voltage: 12 VDC
  • Contact Form: SPDT (1 Form C)
  • Contact Rating (Current): 15 A
  • Switching Voltage: 300VAC, 28VDC - Max
  • Load - Max Switching: 4500VA, 420W
  • Coil Current: 104.3 mA
  • Coil Type: Non Latching
  • Features: Test Button
  • Termination Style: Plug In
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 9.6 VDC
  • Must Release Voltage: 1.2 VDC
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Operating Temperature: -40°C ~ 55°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: N/A
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 12VDC, 15A, SPDT, 300VAC Contact Rating, Ice Cube Style, QC/Solder/Plug-In Contacts, 781 Series.

Product Identification

Manufacturer Series:Legacy
Additional Feature:Test Button
Product Type:General Purpose

Compliance

Agency Approvals:A, N

Dimensions & Appearance

Mounting:Socketable

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Coil Voltage:12 VDC
Contact Form:SPDT (1 Form C)
Control Voltage:300 VAC, 28 VDC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Rating:15 A
Termination:Plug In
,
