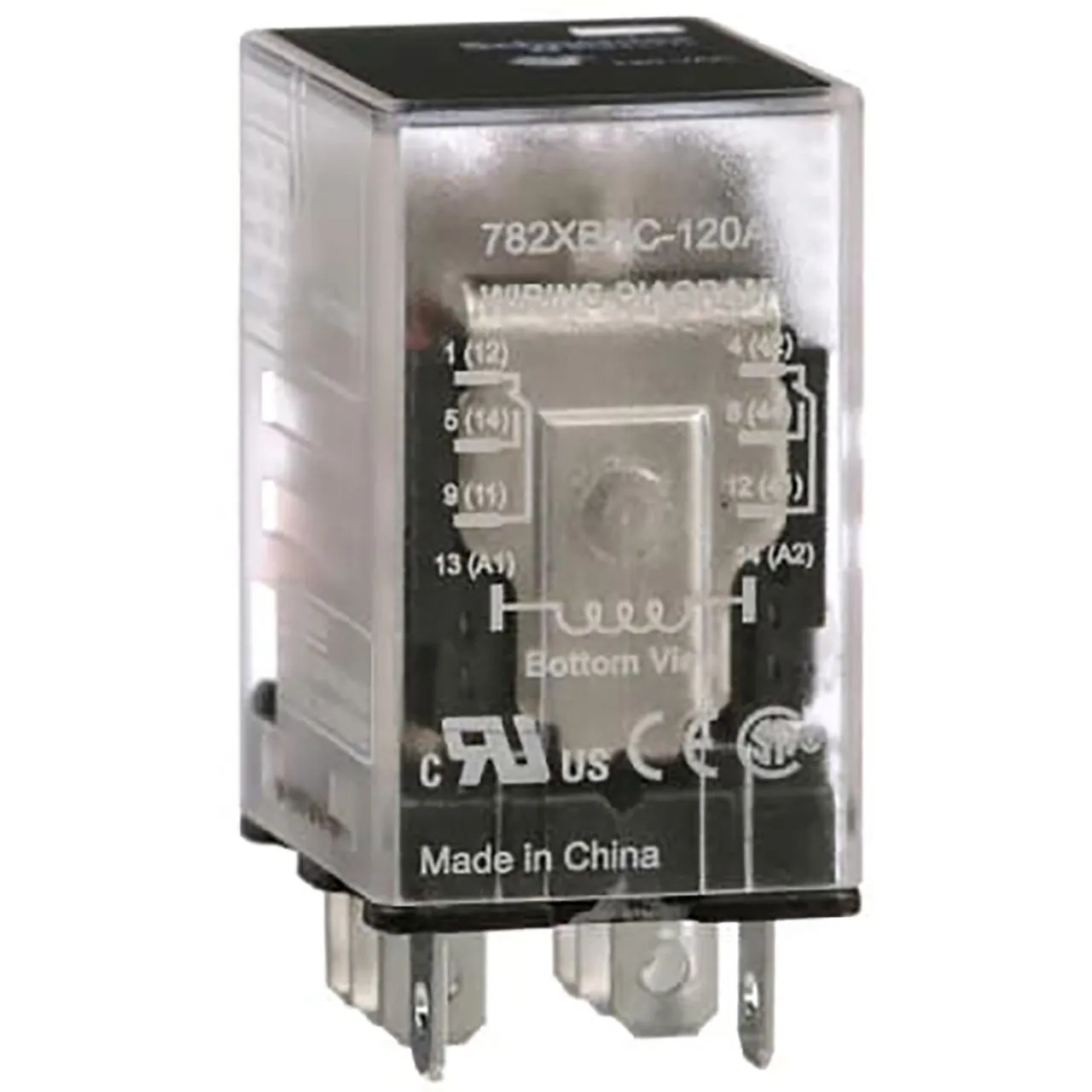

Power Relay Electromechanical General Purpose 120VAC 15A DPDT Faston Terminals/Plug-In Contacts 782 Series

Features

  • Product Type: Plug-in Relays
  • UPC: 3606480280115
  • Harmonized Code: 8538.90.9000
  • ECCN: EAR99
  • Series: Legacy
  • Mounting Type: Chassis Mount
  • Coil Voltage: 120 VAC
  • Contact Form: DPDT (2 Form C)
  • Contact Rating (Current): 15 A
  • Switching Voltage: 300VAC, 28VDC - Max
  • Load - Max Switching: 4500VA, 420W
  • Coil Current: 27.1 mA
  • Coil Type: Non Latching
  • Features: N/A
  • Termination Style: Plug In, Quick Connect - 0.187" (4.7mm)
  • Seal Rating: N/A
  • Coil Insulation: N/A
  • Must Operate Voltage: 96 VAC
  • Must Release Voltage: 18 VAC
  • Operate Time: 20 ms
  • Release Time: 20 ms
  • Operating Temperature: -40°C ~ 55°C
  • Contact Material: Silver (Ag), Gold (Au)
  • Approval Agency: N/A
  • Relay Type: General Purpose
  • Grade: N/A
  • Qualification: N/A

Overview

Power Relay, Electromechanical, General Purpose, 120VAC, 15A, DPDT, Faston Terminals/Plug-In Contacts, 782 Series.

Product Identification

Manufacturer Series:Legacy
Additional Feature:N/A
Product Type:General Purpose

Compliance

Agency Approvals:A, N

Dimensions & Appearance

Mounting:Chassis Mount

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:55°C

Features

Relay Construction:Non Latching
Termination:Plug In, Quick Connect - 0.187" (4.7mm)
Contact Form:DPDT (2 Form C)
Coil Voltage:120 VAC
Control Voltage:300 VAC, 28 VDC - Max
Contact Material:Silver (Ag), Gold (Au)
Contact Rating:15 A
,
