Power Inverter Remote Control for TS/TN/NTS/NTU Series Inverter

Features

• Wall-mount and control panel acceptable
• Built-in ON/OFF button
• Digital meters for battery level, output load level, and operating status on remote control panel
• LED indicators for remote ON/OFF, abnormal and power saving mode
• Remote panel with 10FT cable length, optional for 25FT or 50FT
• Connect directly to the remote socket of inverter, no power supply needed
• 3-year warranty

Overview

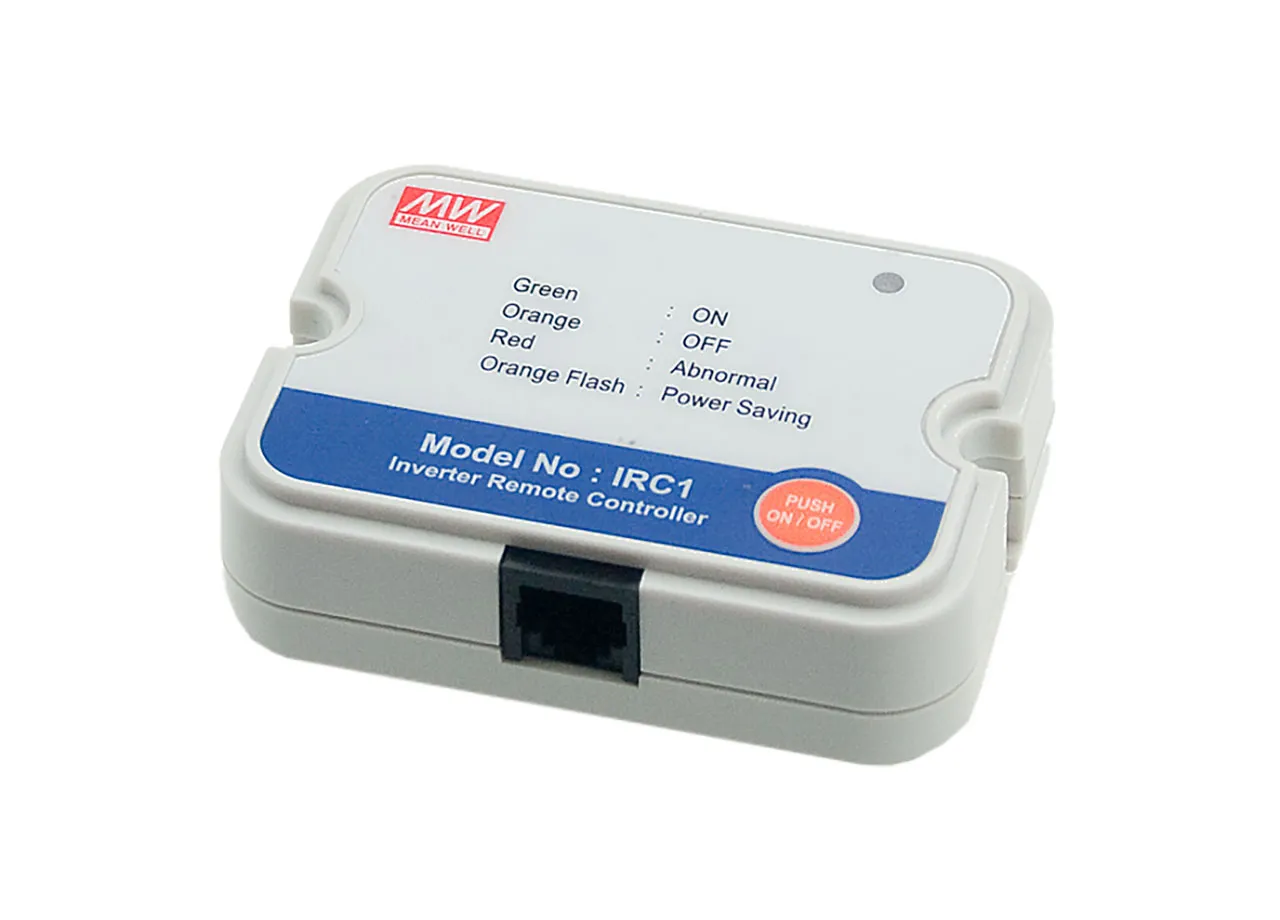

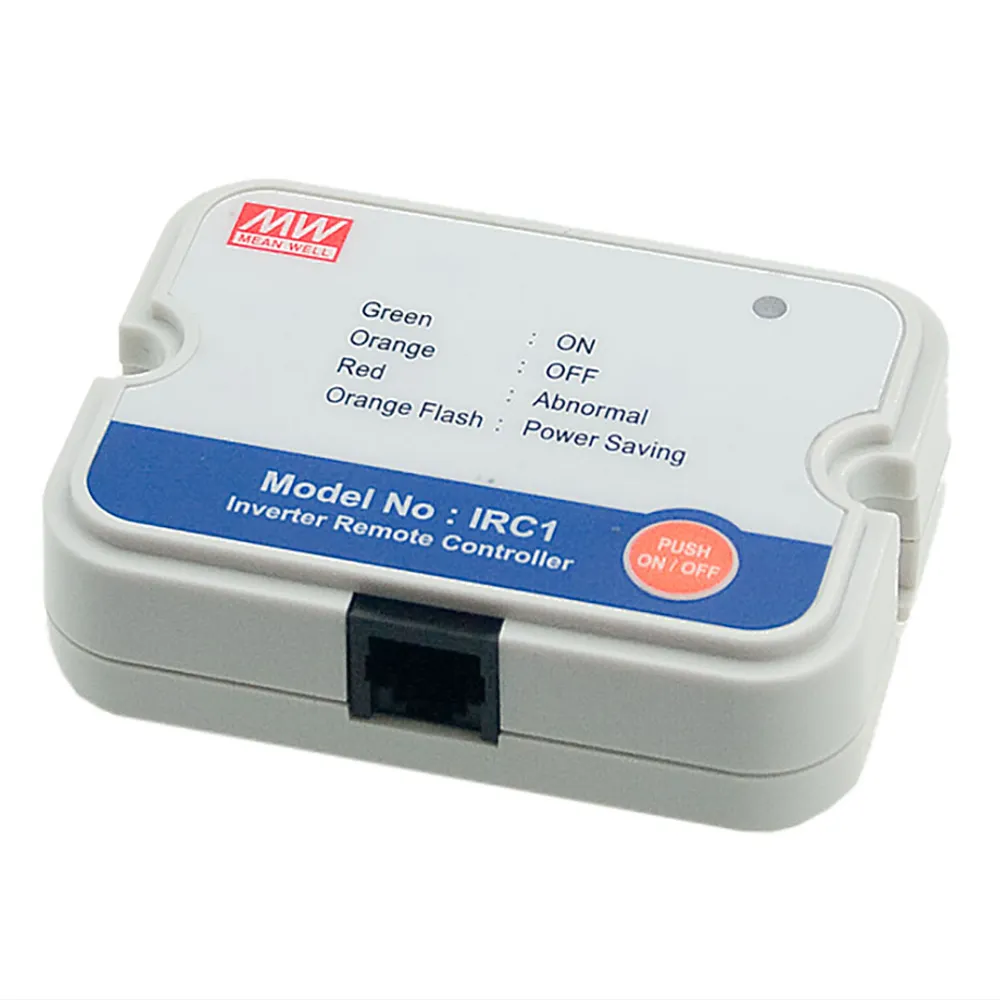

IRC1 / IRC2 / IRC3 is the monitoring and control unit used for the inverter series. It can decode the RS-232 signal send by the inverter series and display through digital meters. IRC1 / IRC2 / IRC3 can also turn ON/OFF the inverter remotely making the basic control easier.
