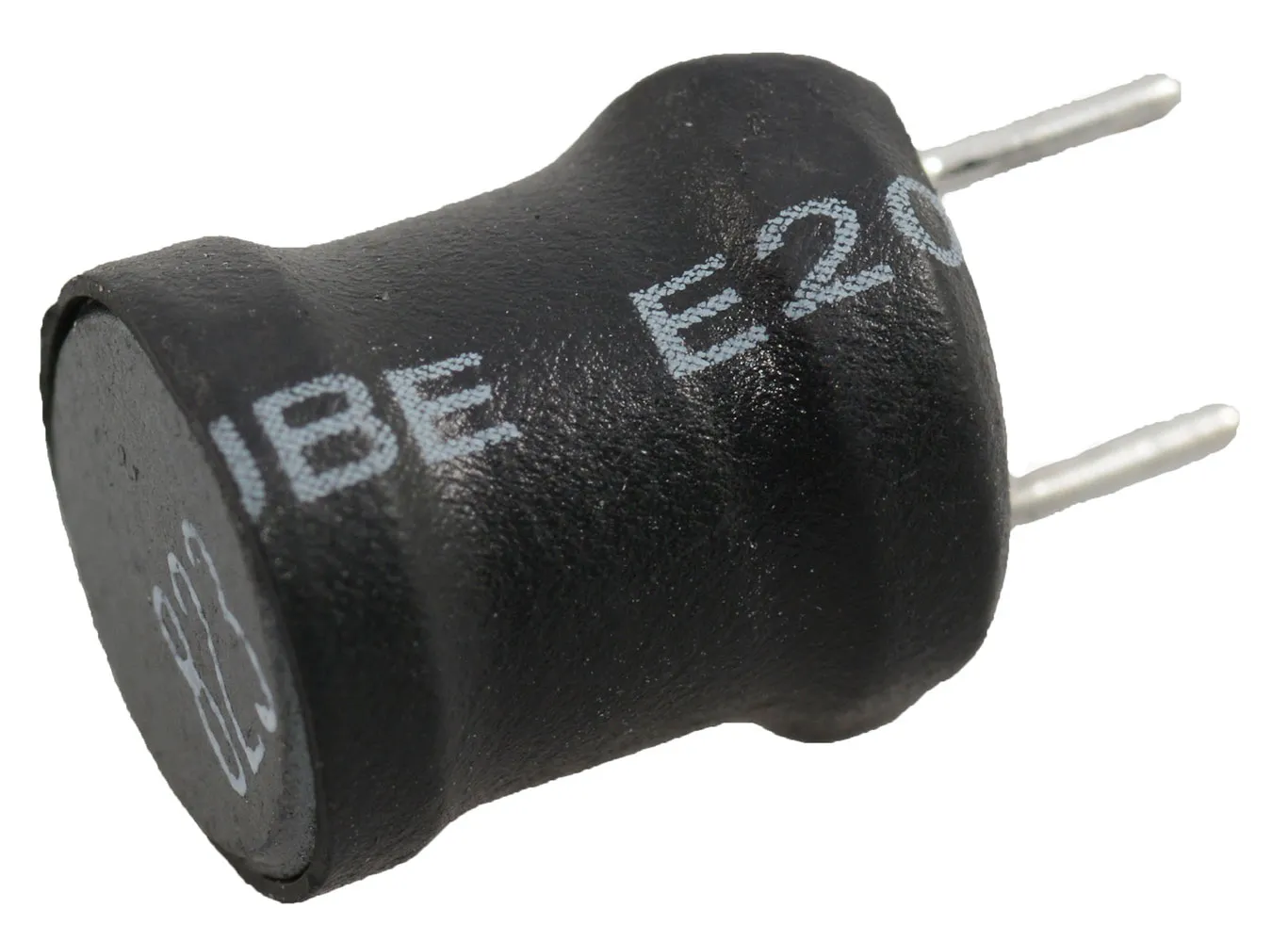

Power Inductor 82uH 2.2A 200mOhm Radial Vertical

Specifications

  • Type: Ferrite Core
  • Inductance: 82 µH
  • Tolerance: ±10%
  • Current Rating (Amps): 2.2 A
  • Shielding: Unshielded (protective PVC sleeve)
  • DC Resistance (DCR): 200 mOhm Max
  • Operating Temperature: -40°C to 85°C
  • SRF: 7 MHz
  • Mounting Type: Through Hole
  • Package: Radial, Vertical
  • Size: 0.47" H x 0.41" dia (12.0 mm x 10.5 mm)
  • Seated Height (Max): 0.47" (12.0 mm)
  • Lead spacing: 0.197" (5 mm)
  • Ideal filter for noise filtering in power amplifiers, power supplies and speaker crossover networks

Product Identification

Family:N/A

Features

Lead Style:Radial
Core Material:N/A
Tolerance:10%
Technology:N/A
Minimum Quality Factor:N/A
Current Rating:2.2 A
Inductance:82 uH
Maximum Self Resonant Frequency:N/A
Maximum DC Resistance:200 mOhm
,
