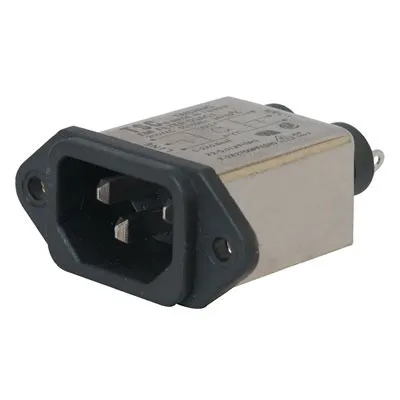

Power Entry Receptacle EMI RFI Filtered Male Blades 3A 125VAC IEC 320-C14 Panel Mount Screw Flange

Specifications

  • Max leakage current (L-G): 2uA @ 125VAC
  • Hipot rating (1 min.): 2250 VDC (L-G); 1450 VDC (L-L)
  • Connector Style: IEC 320-C14
  • Connector Type: Receptacle, Male Blades
  • Current - UL: 3 A
  • Voltage - UL: 125/250 VAC
  • Mounting Type: Panel Mount, Flange
  • Termination: Solder Terminals
  • Panel Cutout Dimensions: Rectangular - 29 mm x 21 mm
  • Panel Thickness: N/A
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: IP40
  • Approval Agency: UL, CSA, VDE

Product Identification

Product Type:Male Blades

Dimensions & Appearance

Body Orientation:Straight
Mounting Type:Panel Mount, Front, Screw Flange
Mounting Hole:Rectangular - 21.50mm x 28.50mm

Features

Fused:No
Filtered:Yes
Contact Gender:Male
Switch Function:Not Switched
Connector Type:C14
Max Panel Thickness:N/A
Voltage Rating:250 VAC
Termination:Solder Terminal
Current Rating:3 A
,
