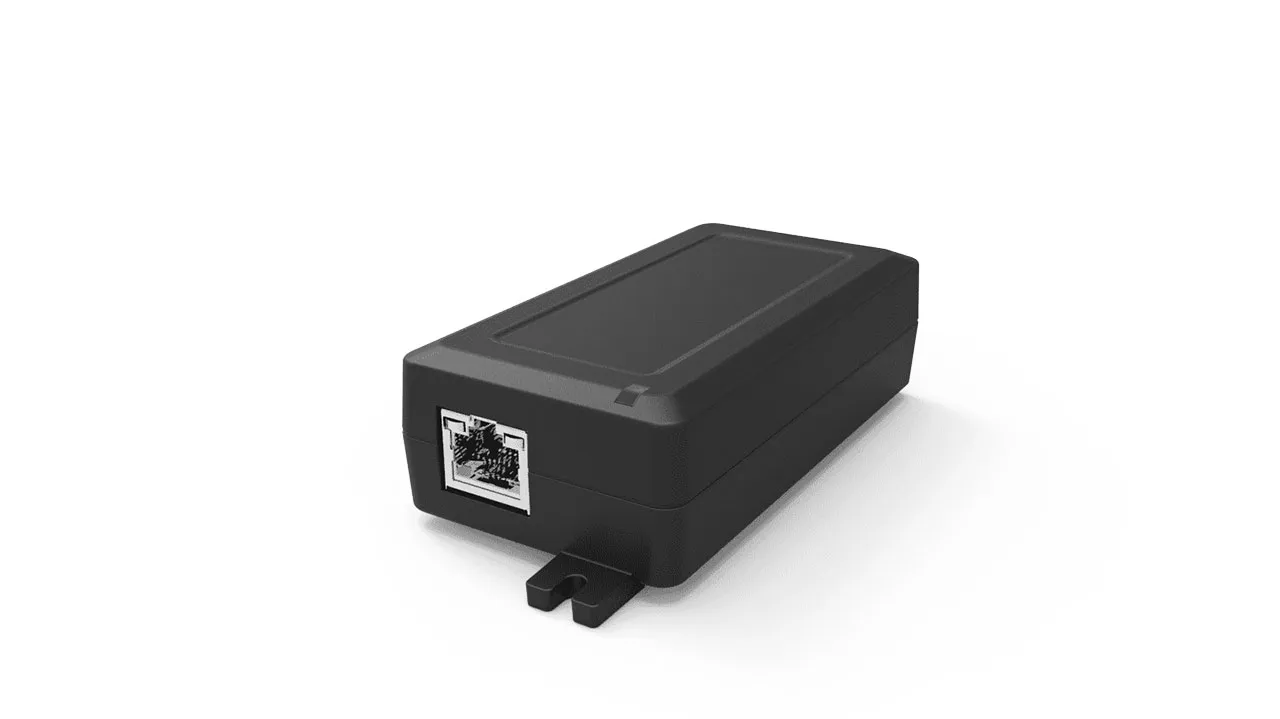

Power Delivery PoE-to-USB-C Receptacle 20W Multiple Voltages 5V to 20V IEEE802.3at and IEEE802.3bt

Phihong

Jameco Part #:

Manufacturer #:

Primary datasheet

Non Cancelable

Non Returnable

Product Price:

$83.090

In Stock: 0

Quantity	Unit Price	You Save	Discount
5+	$83.090	-	-
10+	$74.050	9.04	10.88%
25+	$70.350	12.74	15.33%
50+	$66.830	16.26	19.57%
100+	$55.850	27.24	32.78%

Features

USB-C Power Delivery Output
USB-C Receptacle
Works with IEEE802.3at and IEEE802.3bt Compliant Power Sourcing Equipment
10/100/1000 Mbps Data Input Speed
Short Circuit, Over-Current & Over-Voltage Protection

Overview

Applications

Mobile Phone
Tablet
Networking Device

Product Identification

Type:USB-C Power Delivery

Manufacturer Series:POEUSB20

Product Type:USB-C Power Delivery PoE Adapter

Compliance

Agency Approvals: IEEE802.3at, IEEE802.3bt, IEC

Dimensions & Appearance

Style:Desktop

Color:Black

Height:1.18 in.

Width:1.99 in.

Length:4.43 in.

Operating conditions

Minimum Operating Temperature:-20°C

Maximum Operating Temperature:55°C

Input

Input Voltage:44 VDC to 57 VDC

Maximum Input Current:0.6 A

Output

Output Voltage (Channel 3):12 VDC

Output Voltage (Channel 4):15 VDC

Output Voltage (Channel 2):9 VDC

Number of Outputs:5

Output Current (Channel 4):1.33 A

Output Current (Channel 3):1.67 A

Output Voltage (Channel 1):5 VDC

Output Current (Channel 2):2 A

Output Connector Diameters:N/A

Additional Output Voltages (VDC):9, 12, 15, 20

Output Voltage:5 VDC to 20 VDC

Output Current (Channel 1):2.50 A

Output Connector Type:USB-C Receptacle

Output Current:2.50 A

Features

AC Power Cord: USE RJ45 PoE, NOT INCLUDED

Polarity:N/A

Minimum Isolation Voltage:N/A

IP Rating:N/A

Efficiency:85%

Power Rating:20 W
