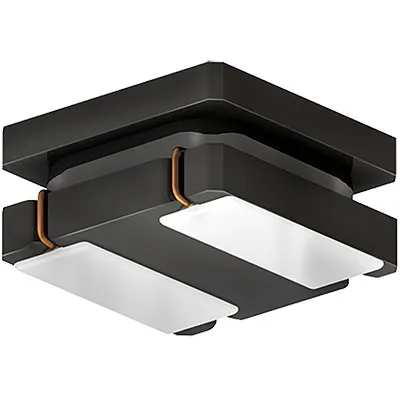

Power Chip Inductor 47µH 30% 1406 mOhm 0.32A Taped/Reel 2000 QTY

Features

  • Inductance Value: 47µH
  • Tolerance: 30%
  • DCR max: 1406 mOhm
  • Isat max: 0.32A
  • Packaging: Taped/Reel
  • Lifecycle-status: Active
  • REACH: Compliant
  • RoHS: Compliant
  • AEC-Q200-standard: Not approved
  • Pack Quantity: 2000

Overview

Power Chip Inductor 47µH 30% 1406 mOhm 0.32A Taped/Reel 2000 QTY

Product Identification

Product Type:Power Chip Inductor
Family:1212FPS

Dimensions & Appearance

Depth:3.10 mm
Height:1.50 mm
Length:3.10 mm

Operating conditions

Maximum Operating Temperature:125°C
Minimum Operating Temperature:-40°C

Packaging

Package:1212
Packaging:Taped/Reel

Features

Core Material:Ferrite
Test Frequency:1 MHz
Tolerance:30%
Technology:Wirewound
Protection Style:Shielded
Current Rating:0.32 A
Maximum Self Resonant Frequency:18 MHz
Inductance:47 uH
Maximum DC Resistance:1406 mOhm
,
