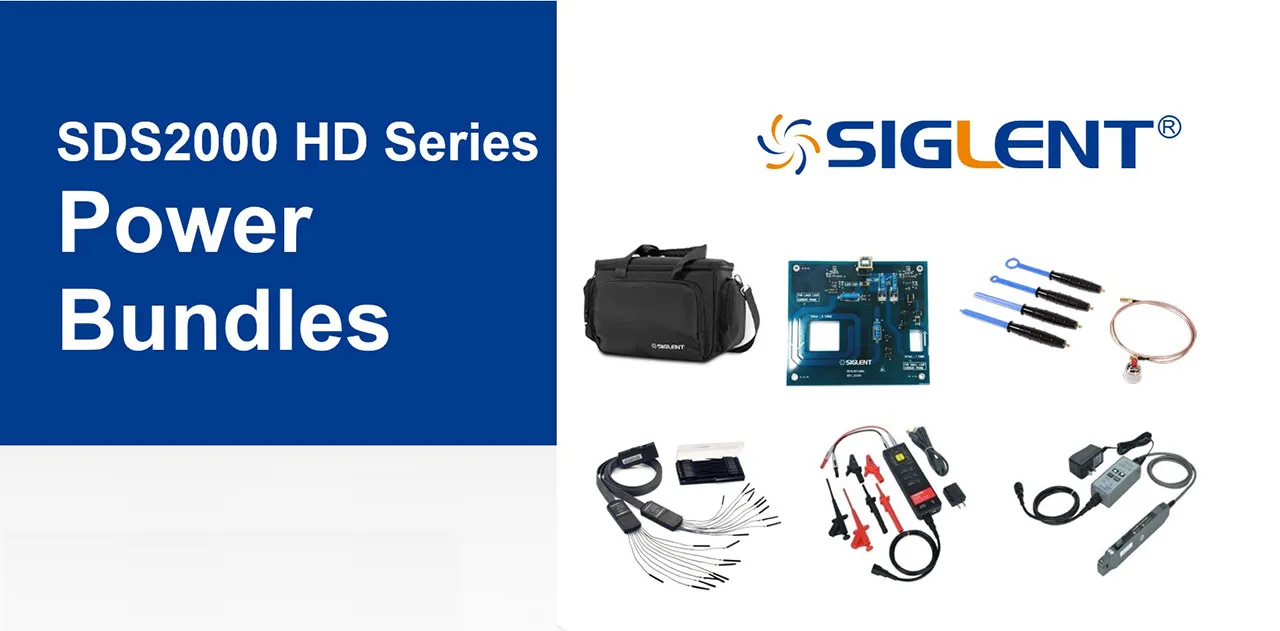

Power Bundle Plus (1.5 kV/200 MHz AWG)

The SIGLENT Power Bundles are designed to help provide all you need for power supply design and debugging in one simple part number.

Includes

• SDS2000HD-16LA MSO function (software)
• SPL2016 Logic Probe, 16-channel, 500MSa/s
• SDS2000HD-FG 25MHz built-in function generator option (software)
• SDS2000HD-PA Power Analysis: Power Quality, Current Harmonics, Inrush Current, Switching Loss, Slew Rate, Modulation, Output Ripple, Turn On/Off, Transient Response, PSRR, Efficiency
• DF2001A Deskew fixture for voltage and current probes
• CP6030A 100MHz; Maximum continuous current 30Arms; Peak current 50A; Switching ratio?5A/30
• DPB5150A 100MHz; Maximum input differential voltage 1500V (DC + Peak AC?
• SRF5030T Three magnetic field near-field probe 30MHz ~ 3GHz
• SPD3303X Power Supply Lan-Precision three-way power independently controllable output: 30V/3A X2, switchable 2.5V/3.3V/5V/3A
• SDL1030X DC Electronic Load 300W?DC150V/30A?CC Dynamic Mode 25KHz ?current rise time range 0.001-2.5A/us; 1mV/1mA;3.5? TFT-LCD; RS232/USB/LAN/GPIB
• SDG6022X "200MHz; 2 channels; 2.4GSa/s;16bit; Arb-Waveform length: 2~20Mpts; function/arbitrary waveform output; EasyPulse and TrueArb technology modulation function (AM,DSB-AM, FM, PM, ASK, FSK, PWM, Sweep, Burst); frequency counter function; PRBS generator; IQ signal generator (Optional)"
• BAG-S2
• Weight: 61lbs
• Dimensions 25 x 24 x 24 in
