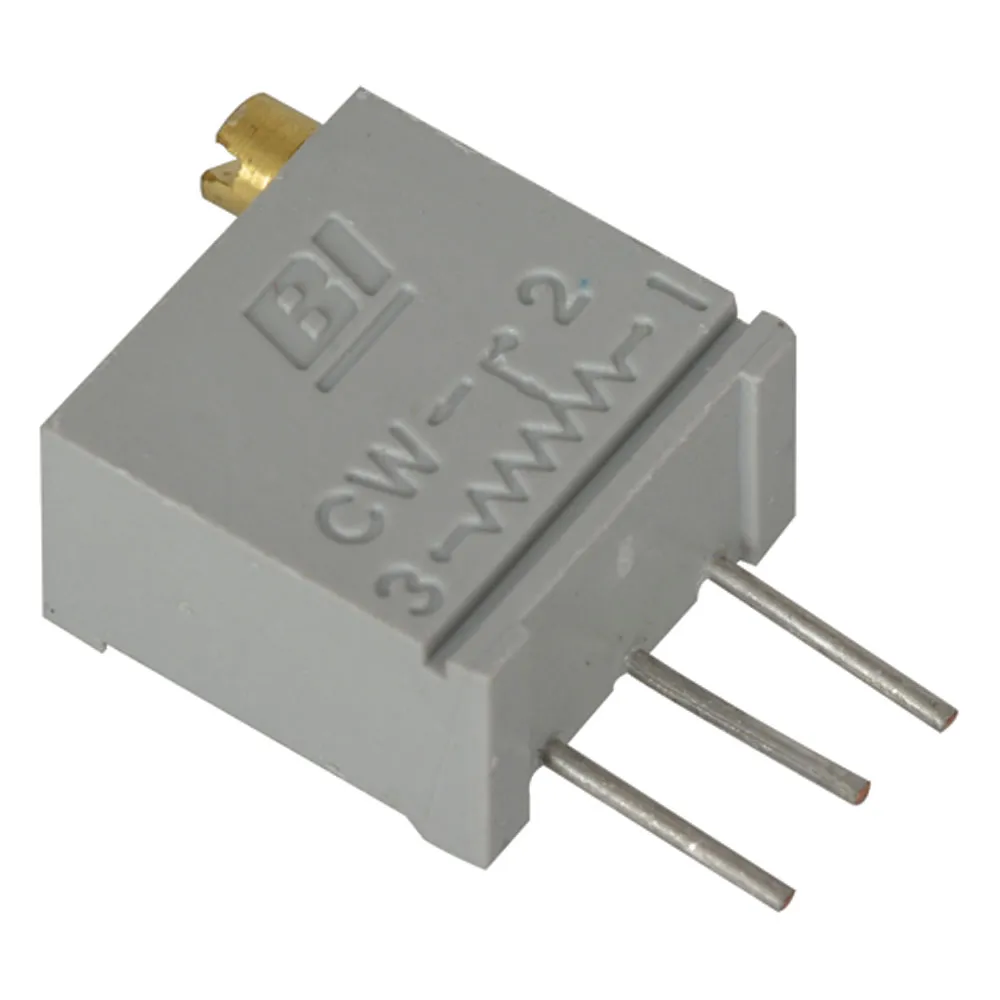

Potentiometer 1K Ohm 1/2W 25-Turn .5 Watt Cermet

Features

  • Resistance: 1,000 Ohm
  • Tolerance: 10%
  • Power: 1/2 Watt
  • 25 Turn

    • Product Identification

    Manufacturer Series:3299
    Family:W
    Product Type:Trimmer

    Dimensions & Appearance

    Shaft Diameter:2.29 mm
    Mounting:Through Hole
    Height:11.55 mm
    Width:6.1 mm
    Length:9.53 mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-55°C

    Features

    Taper:Linear
    Resistive Element Material:Cermet
    Resistance:1 KOhm
    Actuator Orientation:Top
    Number of Turns:20
    Resistance (Ohm):1000
    Tolerance:10%
    Temperature Coefficient:100 ppm/°C
    Technology:Sealed
    Power Rating:0.50 W
    Termination Style:Pins
    Actuator Type:Top Slot
    ,
