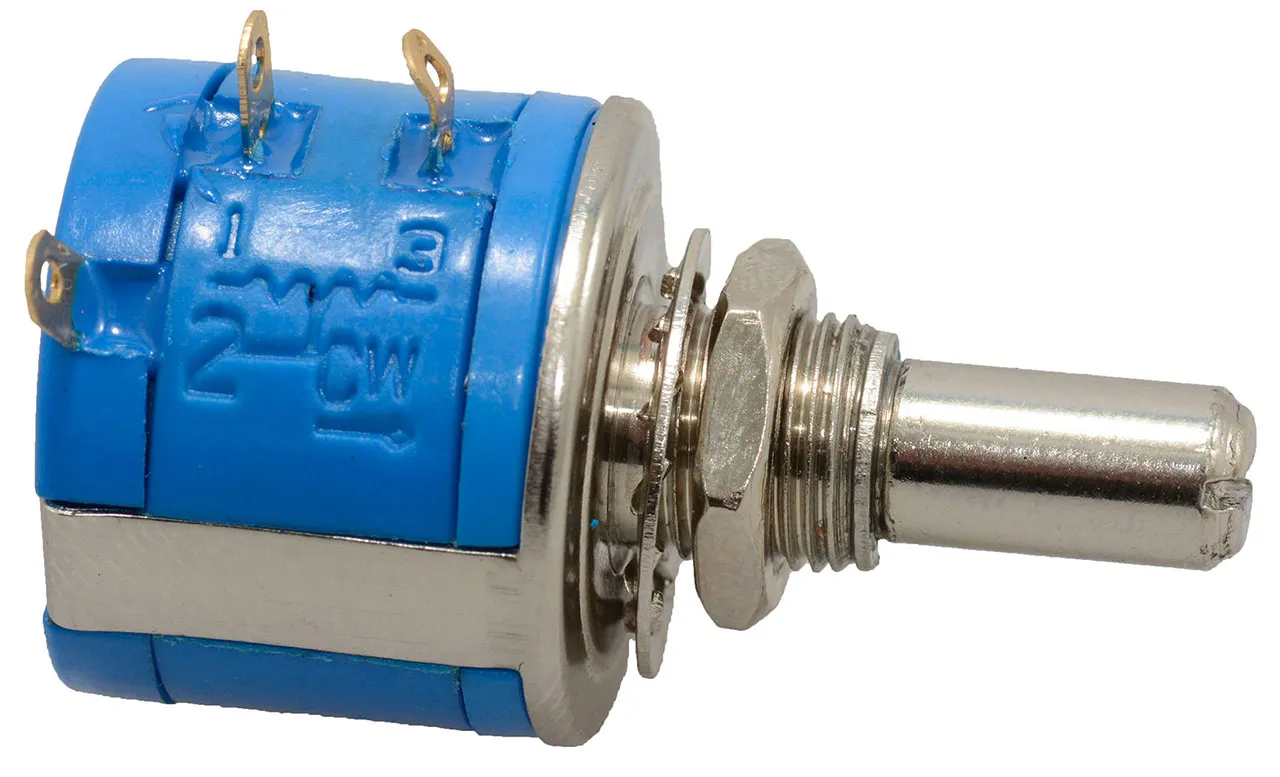

Potentiometer



  • 2 Watt, wire wound
  • 22 mm
  • 10 turn linear taper
  • Value: 5K

    • Product Identification

    Type:Rotary Metal
    Manufacturer Series:3540S
    Product Type:Precision

    Dimensions & Appearance

    Body Diameter:0.875 in., 22.23 mm
    Mounting:Panel
    Shaft Length:0.812 in., 20.62 mm
    Shaft Diameter:6.34mm
    Height:39.67mm

    Operating conditions

    Maximum Operating Temperature:125°C
    Minimum Operating Temperature:-40°C

    Features

    Taper:Linear
    Ganging Number:2
    Number of Turns:10
    Resistive Element Material:Wirewound
    Tolerance:5%
    Temperature Coefficient:50 ppm/°C
    Resistance (Ohm):5000
    Resistance:5 KOhm
    Termination Style:Solder Lug, Panel Mount
    Power Rating:2 W
    Actuator Type:Slotted Shaft
    ,
