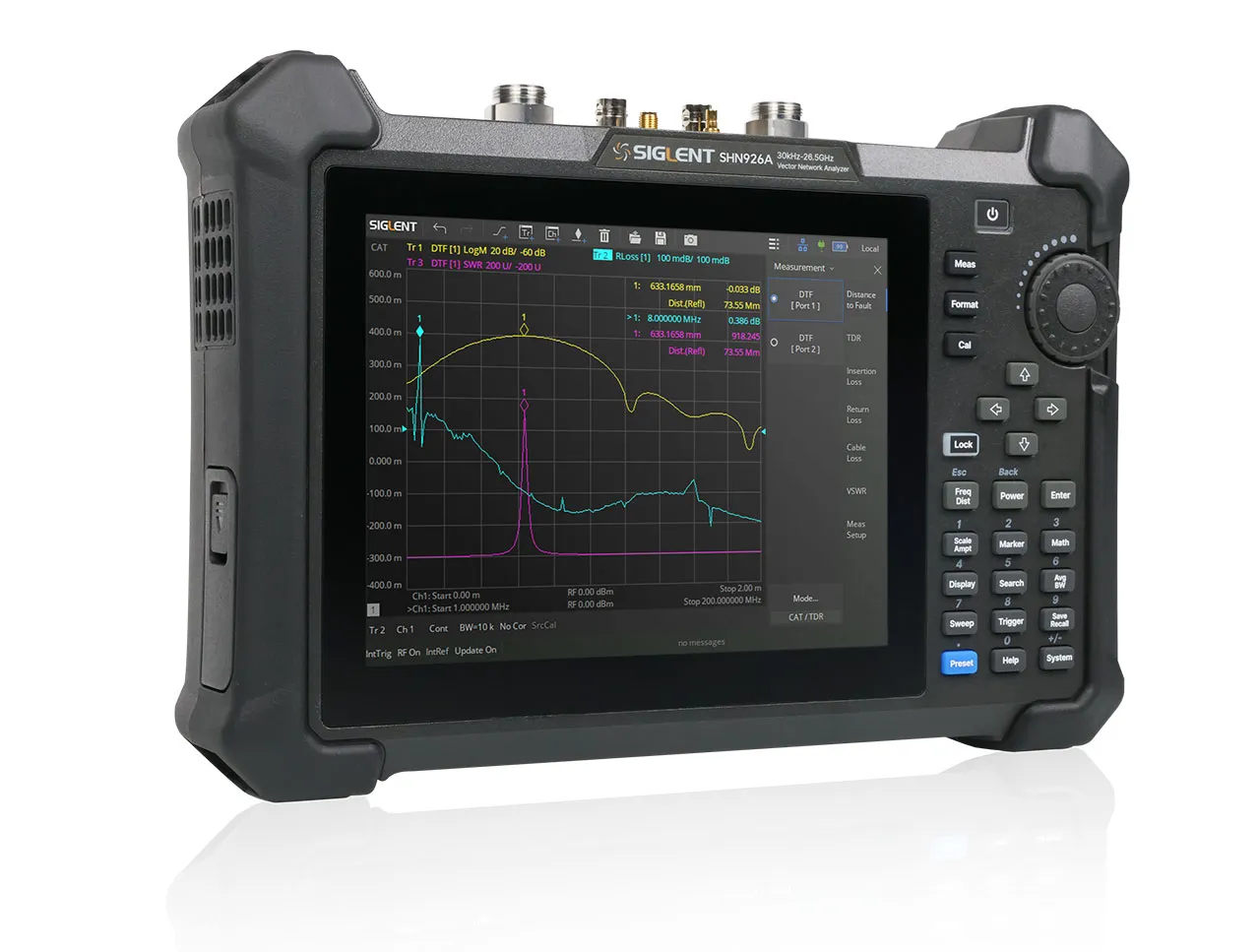

Portable Vector Network Analyzer 2 Port 26.5 GHz

Features

• Frequency range: 30 kHz to 26.5 GHz
• Frequency resolution: 1 Hz
• Level resolution: 0.01 dB
• Range of IFBW: 10 Hz to 3 MHz
• Setting range of output level: -45 dBm ~ +10 dBm
• Dynamic range: 110 dB(Typ.)
• Types of calibration: Response calibration, Enhanced Response calibration, Full-one port calibration, Full-two port calibration, TRL calibration
• Types of measurement: Scattering-parameter measurement, differential-parameter measurement, receiver measurement, time-domain parameter analysis, limit test, ripple test, impedance conversion, fixture simulation, adapter removal/insertion, spectrum analysis frequency offset, scalar mixer measurement, pulse measurement
• Internal Bias-Tee connections
• Support GPS, Time and Location Information Saving
• Interface: LAN, USB Device, USB Host (USB-GPIB)
• Remote control: SCPI/ Labview/ IVI based on USB-TMC / VXI-11 / Socket /Telnet / WebServer
• 8.4-inch touch screen, Mouse, Keyboard

Overview

The SIGLENT SHN900A series of Vector Network Analyzers have a frequency range of 30 kHz to 26.5 GHz, which support 2 port scattering parameter, differential parameter, and time domain parameter measurements. The SHN900A series of VNAs are effective instrumentation for determining the Q factor, bandwidth, and insertion loss of a filter. They feature impedance conversion, movement of measurement plane, limit testing, ripple test, fixture simulation, and adapter removal/insertion adjustments. The VNAs have five sweep types: Linear Frequency mode, Log Frequency mode, Power Sweep mode, CW Time mode, and Segment Sweep mode. The SHN900A series VNAs also support scattering parameter correction of SOLT, SOLR, TRL, Response, and Enhanced Response for increased flexibility in R&D and manufacturing applications.
