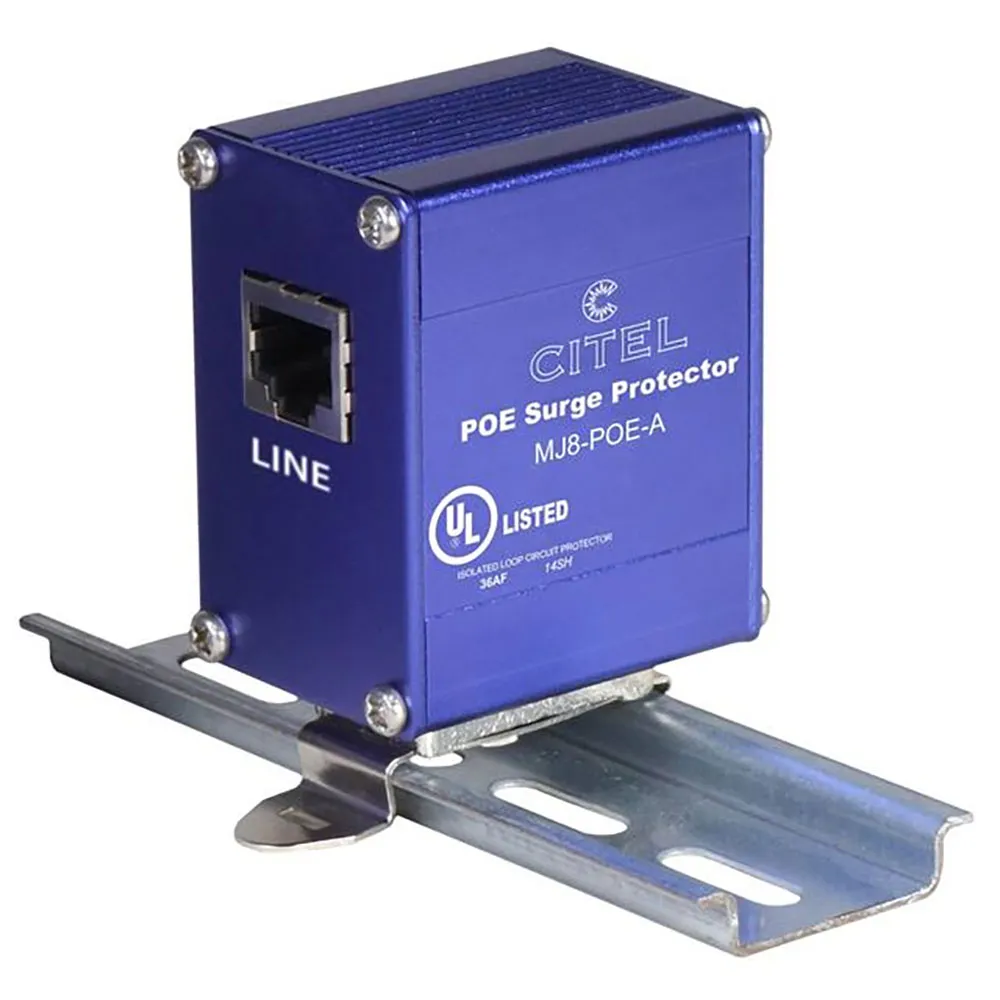

PoE++ Compatible Data Line DIN Rail Surge Protection Device 16kA Surge

Specifications

• Power SPD Type: UL497B
• Wires: 8W+Shield+Ground
• Line Current Max (A): 1.6
• Power Rating (W): 95
• Ambient Min (C): -35
• Ambient Max (C): +85
• IMAX (kA): 16
• Data Speed (bps): 10/100
• Frequency (MHz): >3
• Insertion Loss (@ Freq)(db): <1
• Capacitance (pF): <50
• Technology: Hybrid SAD-GDT
• Network Configuration: Single PoE Line
• Connection Method: Shielded RJ45
• Mounting: DIN Rail
• NEMA Rating (IP Rating): NEMA 2 (IP20)
• Dimensions: See diagram (mm)
• Weight: 0.27 lbs.
