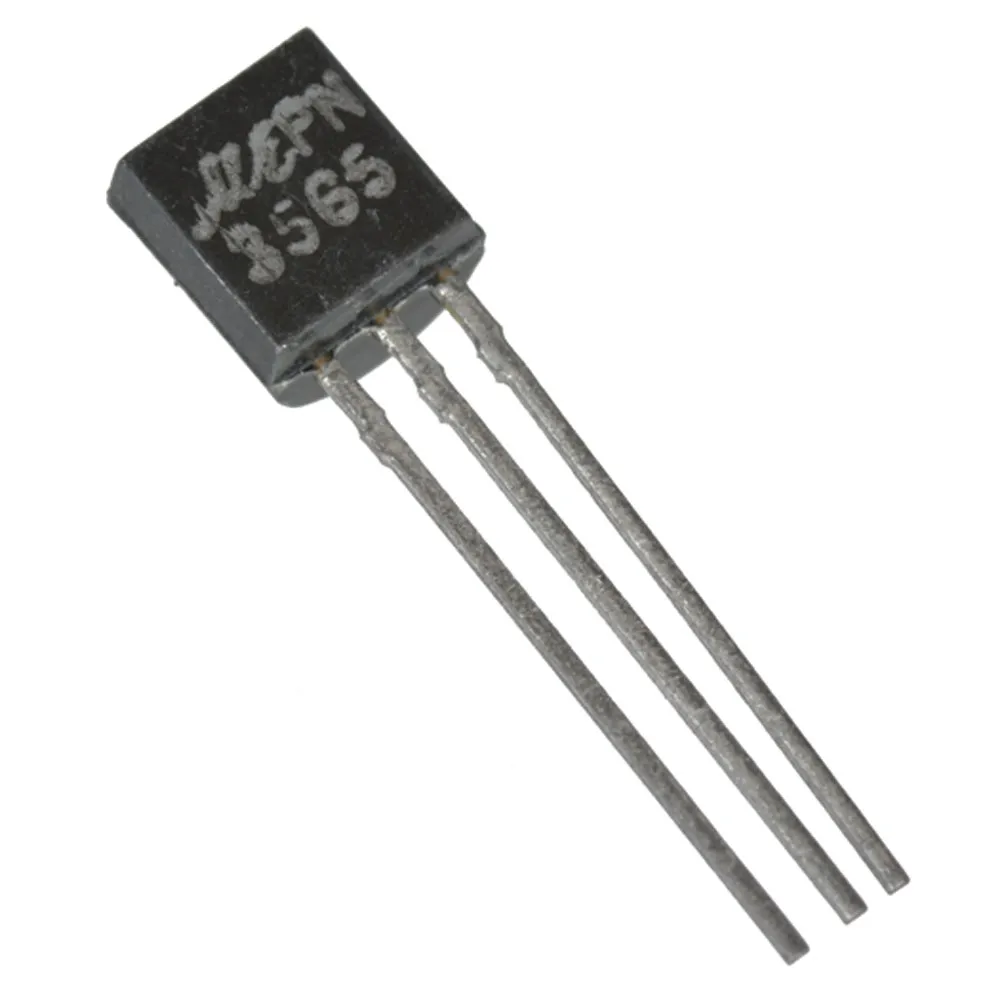

PN3565 - NPN General Purpose Amplifier TO-92

This device is designed for use as general purpose amplifiers and switches requiring collector currents to 300mA.

Specifications

  • Collector-Emitter Voltage: 25V (max.)
  • Collector-Base Voltage: 30V (max.)
  • Emitter-Base Voltage: 6v (max.)
  • Collector Current - Continuous: 500mA (max.)

    • Product Identification

    Product Type:Bipolar Small Signal
    Manufacturer Series:2N3565

    Dimensions & Appearance

    Height:5.33 mm
    Width:5.20 mm
    Length:5.33 mm
    Mounting:Through Hole

    Operating conditions

    Maximum Operating Temperature:150°C
    Minimum Operating Temperature:-55°C

    Packaging

    Packaging:Bulk
    Package:TO-92-3

    Output

    Output Power:625mW

    Features

    Number of Elements per Chip:1
    Pins:3
    Transistor Polarity:NPN
    Maximum Collector Emitter Voltage:25 V
    Maximum Collector Base Voltage:30 V
    Maximum Collector Current:0.5A
    Maximum Emitter Base Voltage:6V
    Maximum Operating Frequency:240Mhz
    Maximum Collector Emitter Saturation Voltage:0.35V @ 100mA @ 1A
    Minimum DC Current Gain:150 @ .001A
    Configuration:Single
    Power Dissipation:625mW
    ,
