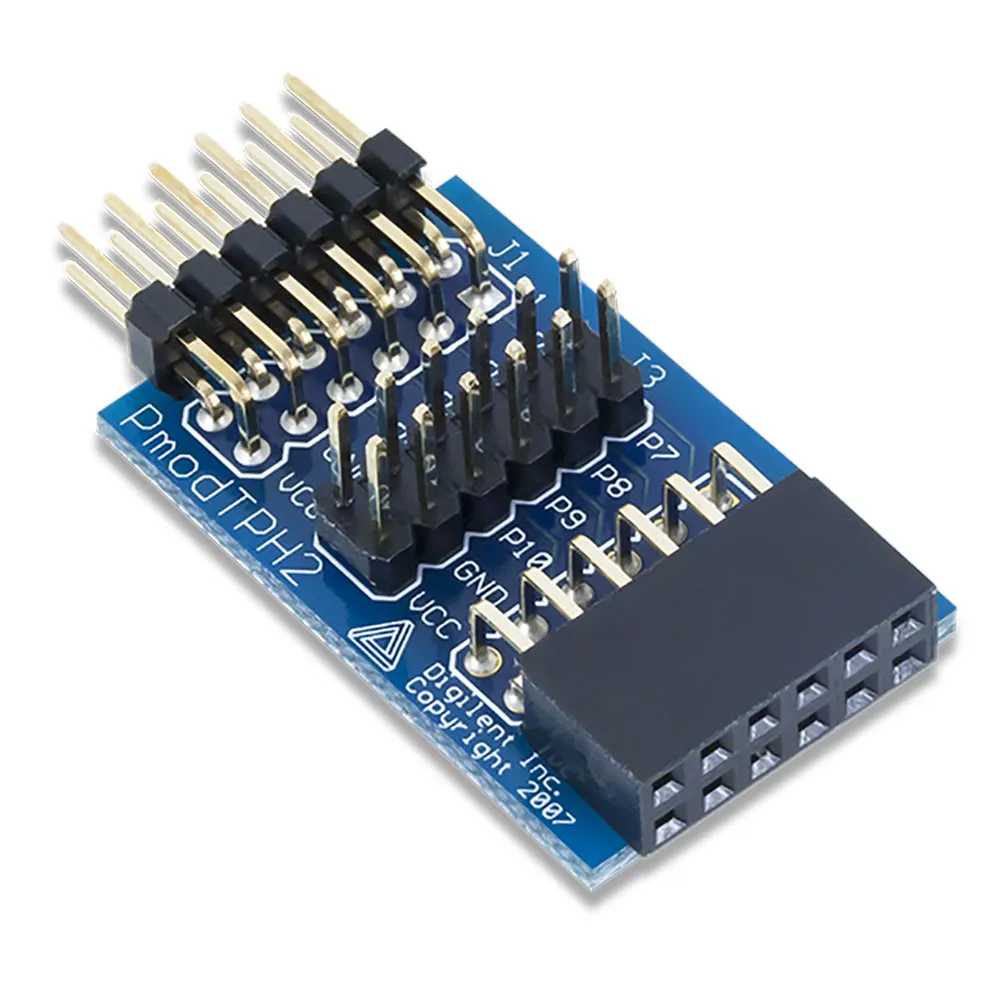

Pmod TPH2: 12-pin Test Point Header

The Pmod TPH2 offers 12 external pin headers so that users can easily test the GPIO signals passing through each of the pins.

Features

• 12 external test point headers
• Easily access and test signals passing through
• Small PCB size for flexible designs 1.3" x 0.8" (3.3 cm x 2.0 cm)
• 12-pin Pmod connector with GPIO interface
• Follows Digilent Pmod Interface Specification Type 1

Resources & Downloads

• Reference Manual and Drawings (off-site)
• Schematic (.pdf)
• Resource Center (off-site)
