Pmod TMP2: Temperature Sensor Module

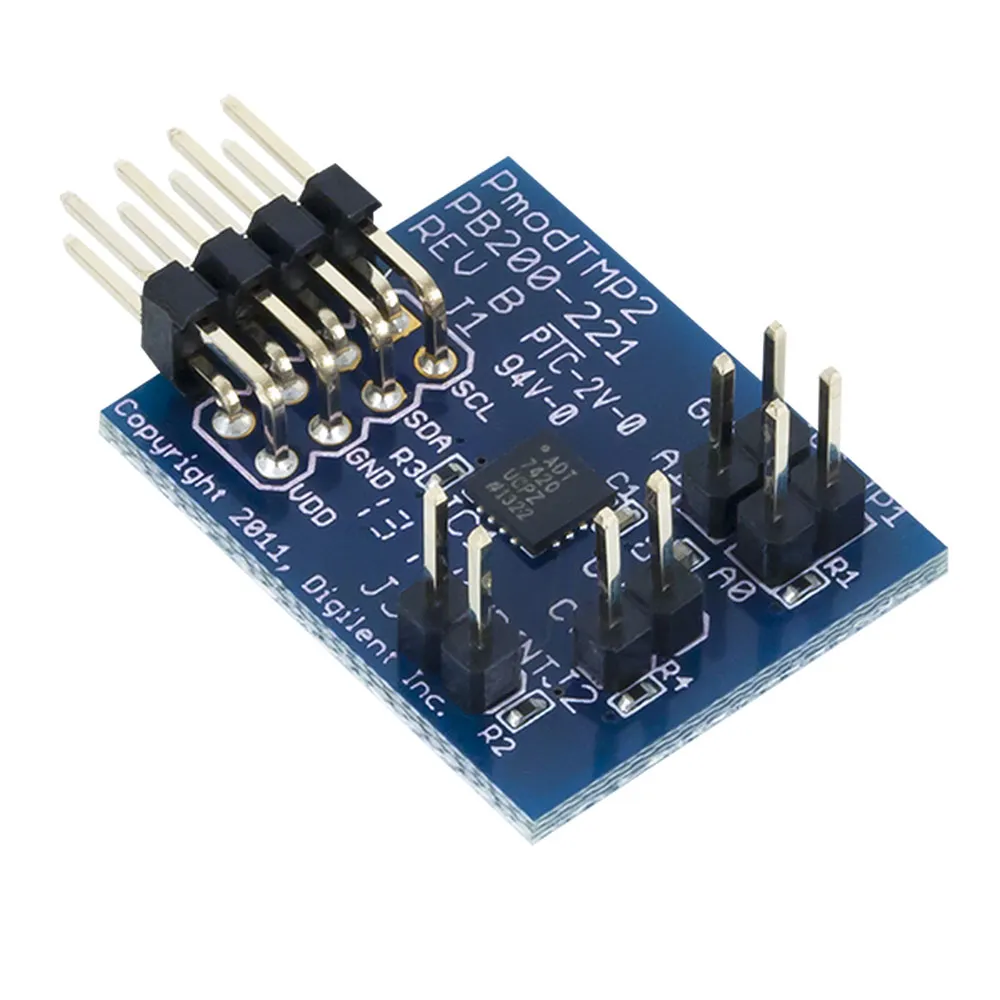

The Pmod TMP2 is an ambient temperature sensor powered by the Analog Devices® ADT7420. Through the I2C interface, users may appreciate a resolution of 0.00787°C through 16 bits of data.

Features

• 16-bit ambient temperature sensor
• Typical accuracy better than 0.25°C
• 240 ms continuous conversion time
• Programmable over and under-temperature control pins
• No calibration required
• Small PCB size for flexible designs 1.0" ? 0.8" (2.5 cm ? 2.0 cm)
• 2?4-pin connector with I2C interface
• Follows Digilent Pmod Interface Specification
• Library and example code available in resource center

Shipping Contents

• One Pmod TMP2
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
