Pmod SWT: 4 User Slide Switches Module

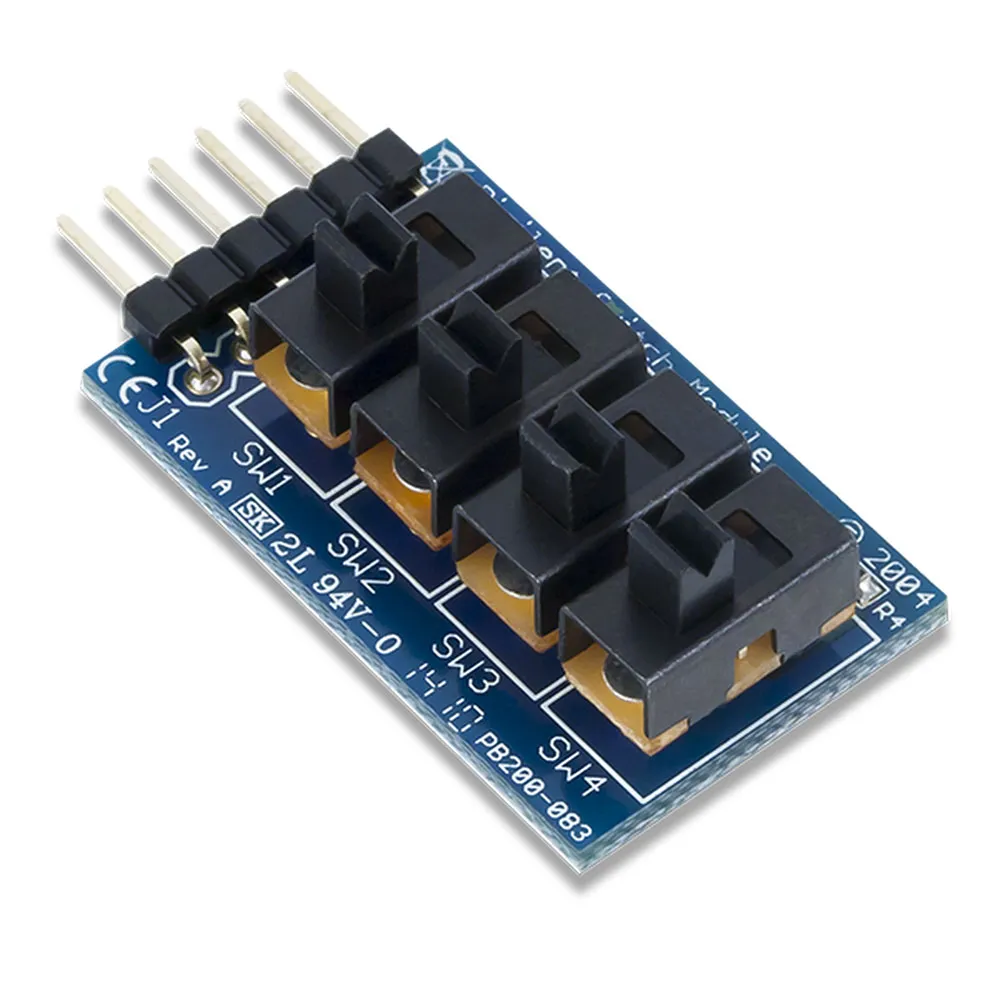

The Pmod SWT provides users with four slide switches for up to 16 different binary logic inputs to for the attached system board.

Note: The Pmod SWT is also featured in a fantastic product bundle, the Arty S7 Pmod Pack! This bundle was designed to expand project possibilities by utilizing a variety of peripheral modules perfectly suited for the Arty S7 FPGA.

Features

• 4 slide switches
• Add user input to host board or project
• Static binary logic input
• Small PCB size for flexible designs 1.3 in ? 0.8 in (3.3 cm ? 2.0 cm)
• 6-pin Pmod connector with GPIO interface
• Follows Digilent Pmod Interface Specification Type 1

Shipping Contents

• One Pmod SWT
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
