Pmod SSR: Solid State Relay Electronic Switch Module

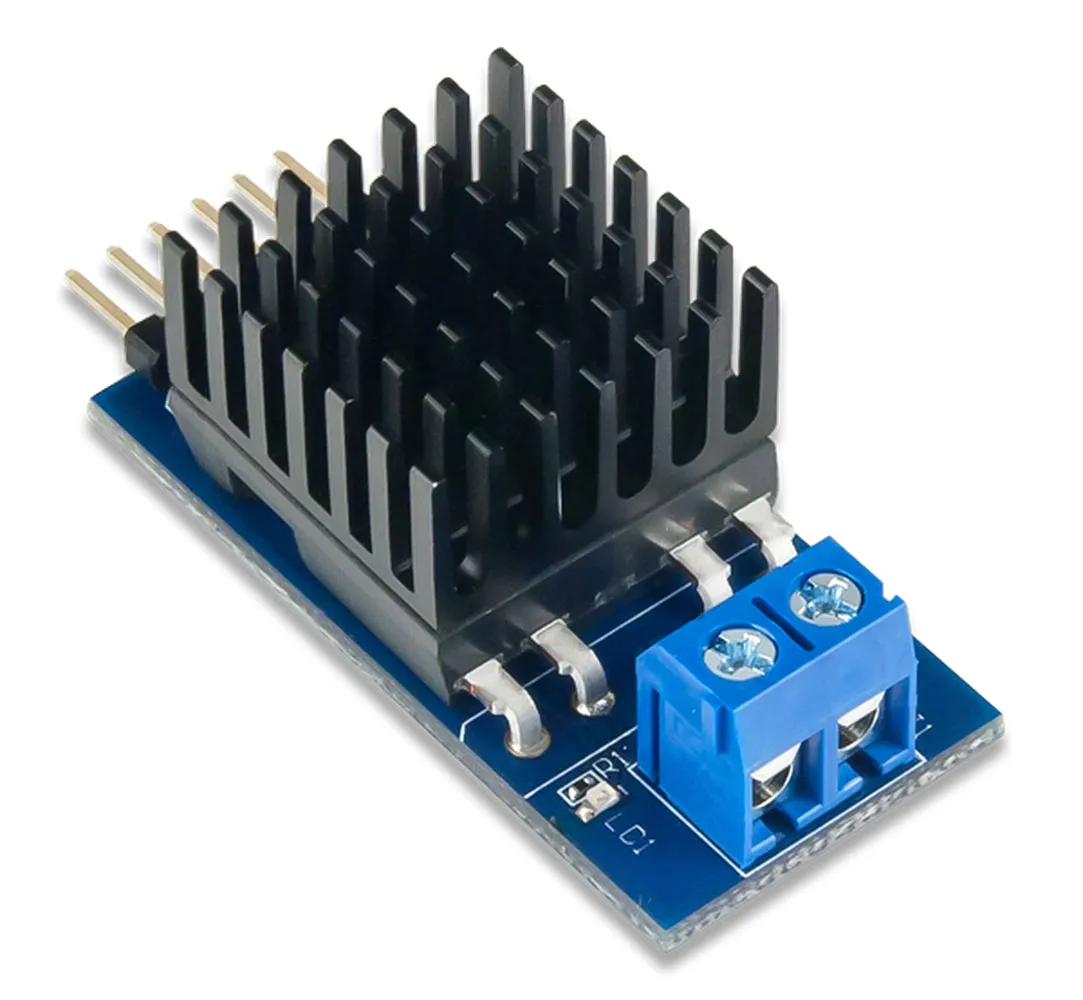

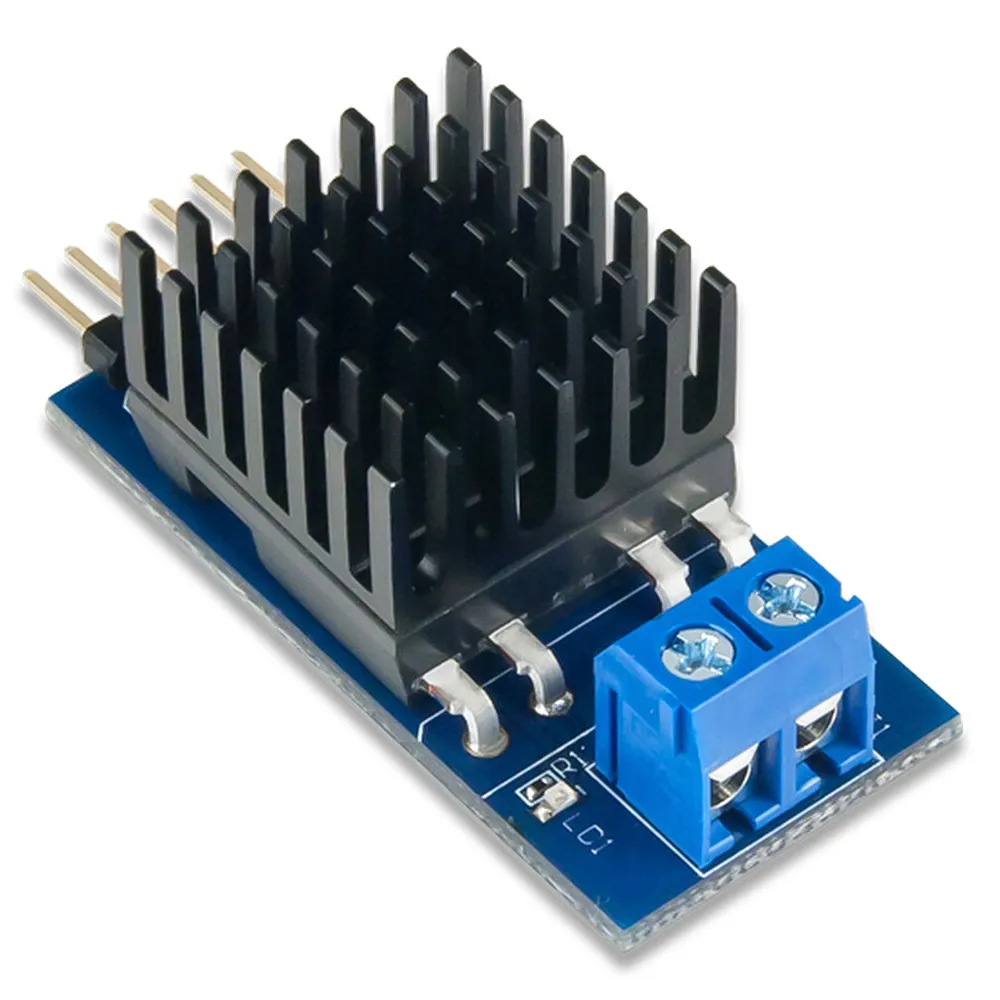

The Pmod SSR is a solid-state relay that features IXYS' CPC1908J. The Pmod SSR uses a switch controlled by a single GPIO pin and is rated to block up to 48 Volts and switch up to 6 Amps (rms) continuous current.

Features

• 0-48 V blocking voltage
• Can switch up to 6 Arms continuous current
• 2500 V input/output isolation
• Low on resistance with fast turn on/off
• Onboard LED to indicate on/off state
• Onboard terminal block for easy wire connection
• Small PCB size for flexible designs 1.7" ? 0.8" (4.3 cm ? 2.0 cm)
• 6-pin Pmod Connector with GPIO interface
• Follows the Digilent Pmod Interface Specification Type 1
• Libraries and example code available in resource center

Shipping Contents

• One Pmod SSR
• Digilent cardboard packaging with protective foam

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
