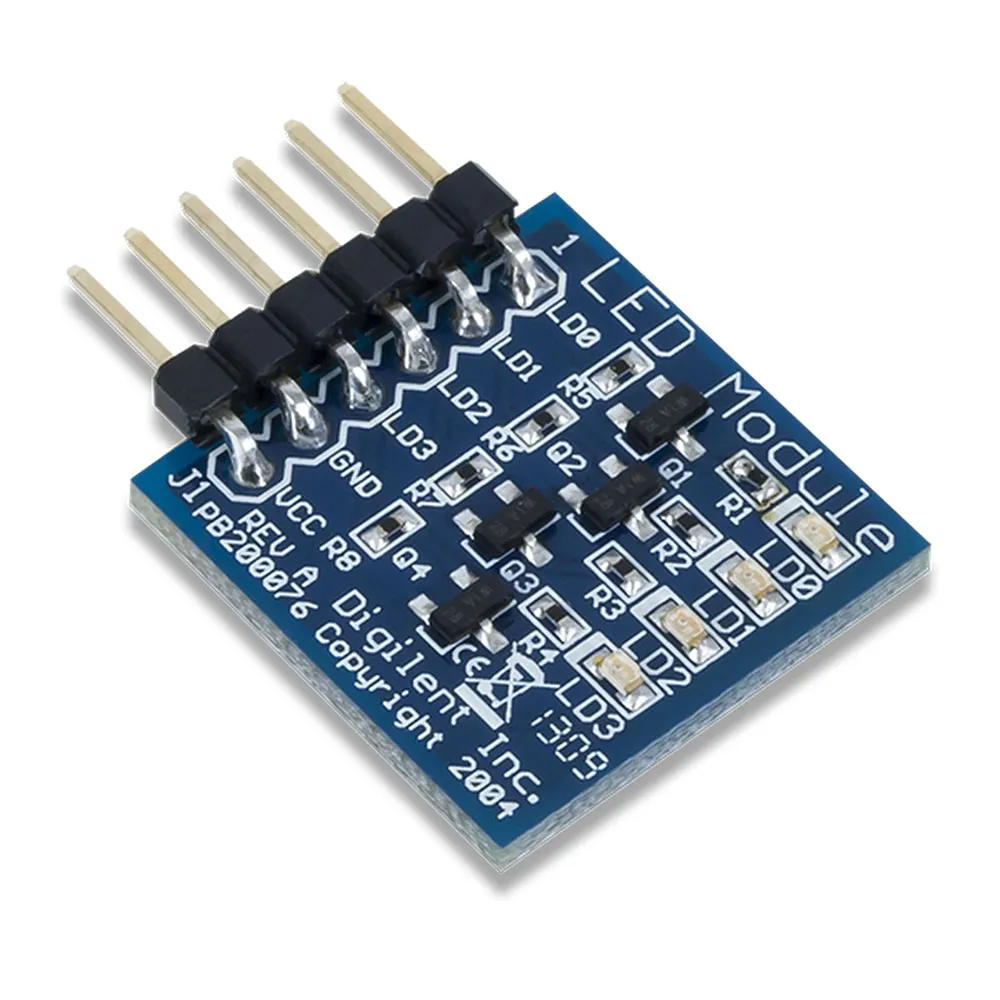

Pmod LED: Four High-brightness LEDs Module

The Pmod LED has four user LEDs that are individually driven through logic-level transistors.

Features

• 4 high-bright red LEDs
• Clearly visible logic level indicators
• Required driving current of < 1 mA
• Small PCB size for flexible designs 0.8" x 0.8" (2.0 cm ? 2.0 cm)
• 6-pin Pmod connector with GPIO interface
• Follows Digilent Pmod Interface Specification Type 1

Shipping Contents

• One Pmod LED
• Custom Digilent antistatic Pmod packaging

Resources & Downloads

• Resource Center (off-site)
• Reference Manual (off-site)
• Schematic
